Prod Model: |
GDC325*S |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Engine: |
Cummins Brand, Perkins, Deutz Is Optional |
Alternator: |
Stamford, Marathon, Engga, Leroy Somer |
Controller: |
Dse or Smartgen |
Controller System: |
Micro-Computer Control Automatic or Mechanial |
Test Load: |
25%, 50%, 75%, 100%, 110% |
Voltage Range: |
110V-690V |
Type: |
Basic Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Three Phase |
Product Description

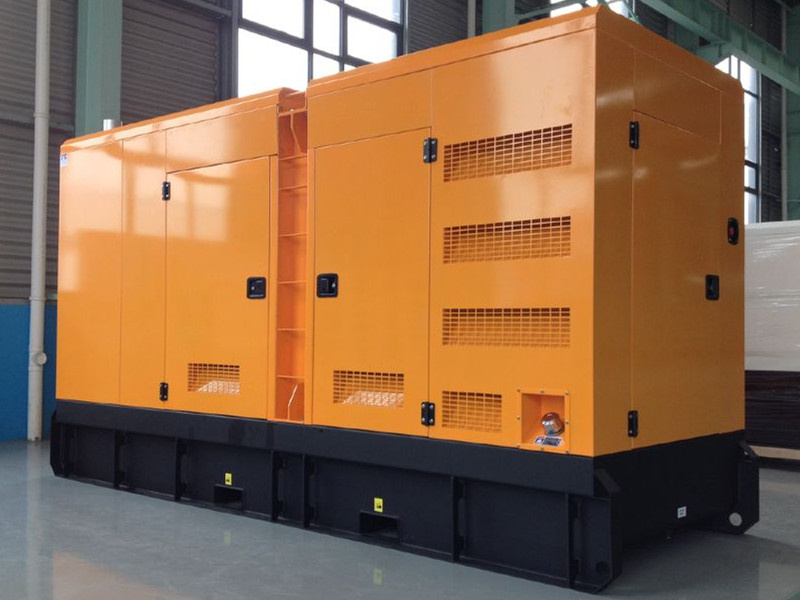

Top Factory Sale Cummins 260kw/325kVA Silent Diesel Generator (GDC325*S)
Specifications
1) Power range: 325kVA /260kw
2) Brushless Synchronous A. C. Alternator,
3) Stamford& Leroy somer Type of Electric Generator,
4) Three Phase optional, IP23, Class H,
5) Rated voltage 400V, 110-690V option
Scope of Supply:
1-Brand new engine and brushless AVR controlled alternator
2-Set mounted Smartgen Auto Controller
3-MCCB(Circuit Breaker), Emergency stop button, low oil pressure shutdown, high engine temperature shutdown.
4-Rubber Anti Vibration Mounts and skid basefram with 6-8hours integral fuel tank.
5-Genset equipped with battery charger and 24V high performance lead acid starting batteires and connecting with cables.
6-Genset equipped with industrial silencer and flexible exhaust hose.
7-Genset equipped with fan and closed circuit cooled radiator(40degree centigrade).
8-Genset with filtering systems including air filter, fuel filter & lub-oil filter.
9-Supply relative documents(testing report, diagram, operation/maintenance manual/spare parts manuals)for engine and alternator
Control system:
1. Automatic cutter which is suitable for the generator power
2. Turn on key
3. A device to measure the generators speed
4. Counter for measuring the Operating hours
5. Device to measure the current overload with a switched current
6. A device to measure the battery voltage
7. Voltmeter with a voltage exchanger
8. A device to measure the frequency
9. Thermostat to regulate the voltage
10. A device to measure the oil pressure
11. Alerting lamps indicating low and high temperature
12. Controller of the current increase and short circuit
13. Emergency stop button
Warranty:
12 months or 1000 running hours from shipment date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset-body instead of external or natural reasons. (Refer to all kinds of natural disaster, shipping, loading, unloading, wrong-operation, etc), we will supply the relevant spare parts free of charge for maintenance; After the warranty period, we can supply the required spare parts for you under cost prices
Our service quality assurance:
Diesel Generator Specifications |
Manufacturer: | Jiangsu GODLIKE Power Equipment Co.,Ltd. |
Model: | GDC325*S |
Prime Power: | 260KW / 325KVA |
Standby Power: | 286KW / 358KVA |
Frequency: | 50HZ |
Voltage: | 400/230V |
Phase: | 3 Phase |
P.F(COS): | 0.8 |
Fuel: | Diesel |
Rated Current: | 468A |
Start Method: | 24V DC Start Battery |
Accessory: | Battery, wire, exhaust pipe, muffler, damper, breaker |
Altitude: | ≤1000m |
| | | | | | | | |
Engine Specifications |
Manufacturer: | Cummins |
Model: | NTA855-G2A |
Air Intake System: | Turbo, Air/Air cooling |
Fuel System: | Elec. Injection, Elec. Fuel System |
Cylinder Arrangement: | 6 in line |
Displacement: | 9.36L |
Bore and Stroke: | 120×138 mm |
Compression Ratio: | 17.4 |
Rated RPM: | 1500rpm |
Maximum Output Power: | 310KW/422HP(with fan) |
Governor Type: | EMS2 |
Exhaust System |
Exhaust Gas Flow: | 52.2m3/min |
Exhaust Temperature: | 519 |
Max Back Pressure: | 10kPa |
Air Intake System |
Max Intake Restriction: | 5kPa |
Burning Capacity: | 19.6m3/min |
Air Flow: | 456m3 /min |
Fuel System |
100%( Prime Power) Load: | 202 g/Kw.h |
75%(Prime Power) Load: | 200 g/Kw.h |
50%(Prime Power) Load: | 208 g/Kw.h |
100%( Prime Power) Load: | 66.1L/h |
Oil System |
Total Oil Capacity: | 35L |
Oil Consumption: | 0.04L/H |
Engine Oil Tank Capacity: | 30L |
Oil Pressure at Rated RPM: | 350-600kPa |
Cooling System |
Total Coolant Capacity: | 41L |
Thermostat: | 82-92 |
Max Water Temperature: | 103 |
| | | | | | | | |
Alternator Specifications |
Manufacturer: | Mecc Alte S.p.A (Italy) |
Model: | EC038-3LN/4 |
Rated Capacity: | 350KVA |
Winding: | 100% Copper Wire |
Frequency: | 50HZ |
Speed: | 1500 RPM |
Connecting Type: | 3 Phase and 4 Wires, "Y" type connecting |
Power Factor: | 0.8 |
Protection Grade: | IP23 |
Exciter Type: | Brushless, self-exciting, with AVR |
Insulation Class, Temperature Rise: | H/H |
Alternator Warranty: | 2 Year No Time Limited |
Voltage Regulation: | ≥±5% |
| | | | | | | | |
Control System Specifications |
Manufacturer: | DEEP SEA ELECTRONICS PLC (UK) |
Model: | DSE6020 |
Type: | AMF Automatic Operation |
Operation: | Automatic Start and Auto Mains (Utility) Failure Control |
Alarm Protect: | Engine pre-heat, Current monitoring, Comprehensive Shutdown, Charge Failure |

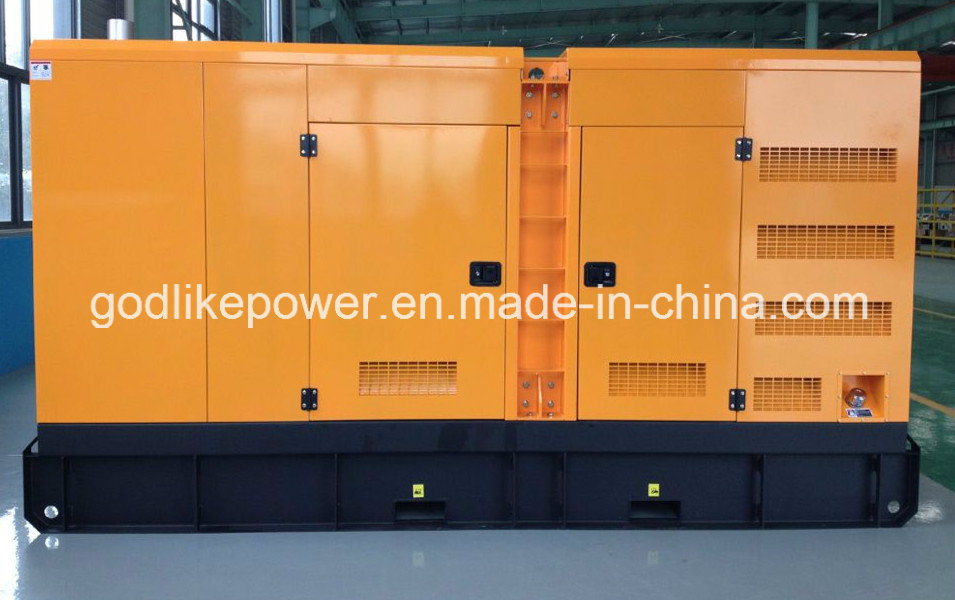

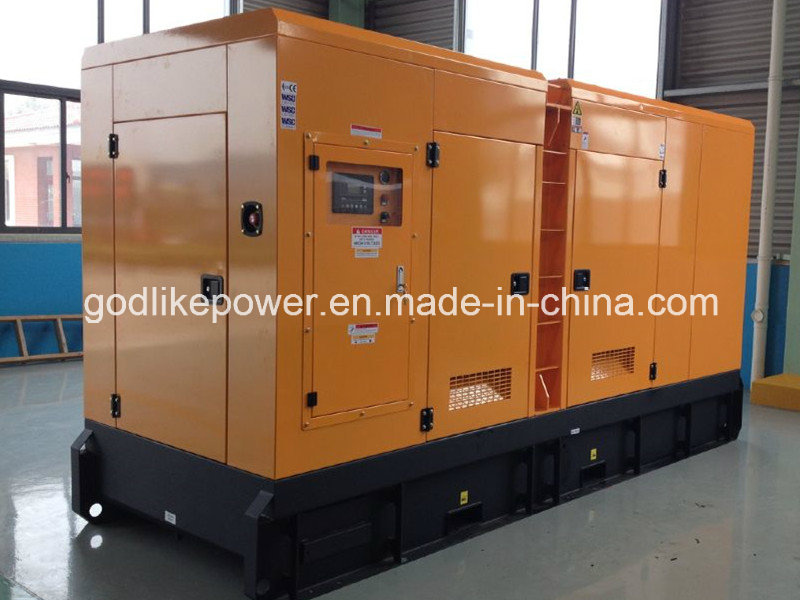

Generator photos
![](/proimages/44f3j00DTotVqhBhHbw/top-factory-sale-cummins-260kw-325kva-silent-diesel-generator-gdc325*s-.jpg)
![](/proimages/44f3j00HEbQiCVKCLkA/top-factory-sale-cummins-260kw-325kva-silent-diesel-generator-gdc325*s-.jpg)
![](/proimages/44f3j00DakQiKWPHIbd/top-factory-sale-cummins-260kw-325kva-silent-diesel-generator-gdc325*s-.jpg)
Contact: Ms Vicki Yuan
Tel: 86 514 80915716

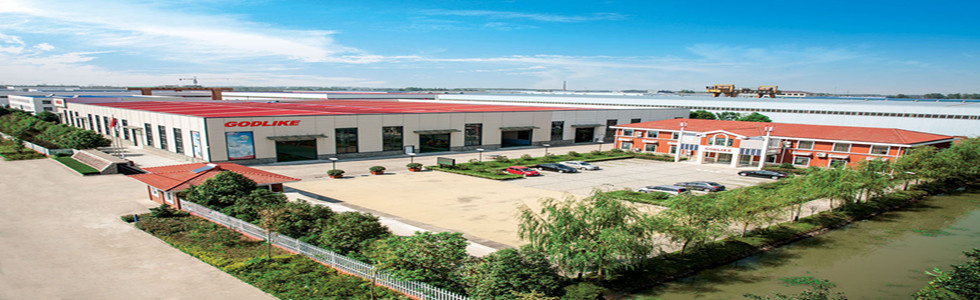

Established in Year 2006, GODLIKE POWER is headquartered in Yangzhou city, Jiangsu Province, only 2.5 hrs far from Shanghai or Nanjing. It has grown into a leading manufacture of diesel generators&alternators in China and ranked amongst the top manufacturers worldwide.
