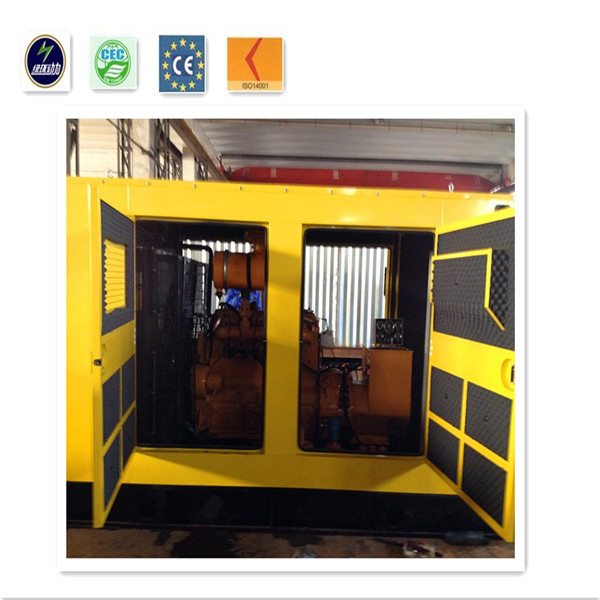

Top Quality and Low Consumption Low Noise Natural Gas Generator Set

Prod Model:	LHNG30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Keywords:	Natural Gas Generator Set
Cylinder Number:	V Shape, 12 Cylinders
Cylinder Diameter:	190mm
Stroke:	210mm
Displacement:	71.45L
Rated Speed:	1000r/Min
Phase:	AC 3-Phase, 4 Wire
Rated Frequency:	50/60Hz
Gas Source:	Natural Gas
Power:	20-700kw

Product Description

1, Supply the power 20-700KW
2. ISO9001-2008, ISO14001-2008, CE
3. Original manufacturer


 Main technical paremeters:

Model Number	LH-20-700GFY
Brand Name	LVHUAN
Rated Power	20-700KW
Rated Speed	1000/1500 rpm
Rated Frequency	50/60 Hz
Rated Voltage	400/230V
Phase	AC 3 phase 4 wire
Starting system	24V DC electric motor
Cooling method	water cooler
Lubricant method	passive and splash
Isolation class	F
Protection	IP23
Power Factor	0.8 lagging
Exciting method	Brushless
Voltage Stability	≤±2%
Voltage Transient	≤±10%
Voltage Stable time	≤1 s



2. Technical Specs of Gas Engine


Engine Capacity	71.4 L
Cylinder Number	V-12
Cylinder Diameter	190mm
Range	210mm
Heat consumption	≤11386Kj/kw.h
Gas consumption	≤0.8-1.2m3


3. Other Specification



Color	your choice
Certificates	ISO 9001:2008, CE
Warranty	1 year or 1500 running hours
Type	Open
Control System	Automatic alarm system



Model Number (Engine Type)	LH-12v135	LH-6190	LH-12v190	LH-12v190T
Brand Name	LVHUAN	LVHUAN	LVHUAN	LVHUAN
Prime power/Standby power	100-200KVA	200-350KVA	350-400KVA	450-600KVA
Rated Speed	1500r/min	1000r/min	1000r/min	1000r/min
Rated Frequency	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz	50Hz/60Hz
Rated Voltage	400V/230V	400V/230V	400V/230V	400V/230V
Phase	AC 3-Phase, 4 wire	AC 3-Phase, 4 wire	AC 3-Phase, 4 wire	AC 3-Phase, 4 wire
Voltage Stability	≤±2%	≤±2%	≤±2%	≤±2%
Voltage transient	≤±10%	≤±10%	≤±10%	≤±10%
Voltage Stable time	≤1	≤1	≤1	≤1
Heat consumption	≤9.8mj/kw.h	≤9.8mj/kw.h	≤9.8mj/kw.h	≤9.8mj/kw.h
Lubricant consumption	≤1.63g/kw.h	≤1.63g/kw.h	≤1.63g/kw.h	≤1.63g/kw.h
Engine Capacity	25.8 L	32 L	71.4 L	71.4 L
Cylinder Number	12v	6	12v	12v
Cylinder Bore	135mm	190mm	190mm	190mm
Stroke	150mm	210mm	210mm	210mm
Starting System	DC 24V electic motor	DC 24V electic motor	DC 24V electic motor	DC 24V electic motor
Cooling method	water cooler	water cooler	water cooler	water cooler
Lubricant method	Passive and flying lubricant	Passive and flying lubricant	Passive and flying lubricant	Passive and flying lubricant
Isolation class	H	H	H	H
Protection	IP23	IP23	IP23	IP23
Alternator	ENGGA	Siemens	Siemens	Siemens
Power Factor	0.8 lagging	0.8 lagging	0.8 lagging	0.8 lagging
Exciting method	brushless	brushless	brushless	brushless
Certificates	ISO 9001:2008, CE	ISO 9001:2008, CE	ISO 9001:2008, CE	ISO 9001:2008, CE
Warranty	1 year or 1500 running hours	1 year or 1500 running hours	1 year or 1500 running hours	1 year or 1500 running hours


Pre-sales service:
1    We value every inquiry sent to us, ensure quick competitive offer within 12
hours.
2    We cooperate with customer to design and develop the new products. Provide
all necessary document.
3    We are a sales team, with all technical support from engineer team.
Punctual delivery time:
4    We put your order into our tight production schedule, ensure your punctual
delivery time.
5    Production / inspection report before your order packed.
6    Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
1    We respect your feed back after receive the goods.
2    We provide 12-24 months warranty after goods arrive.
3    We promise all spare parts available in lifetime use.
4    We resolve your complain within 48 hours.

FAQ


1    Q: Can I visit your factory?
     A: Yes. Many domestic and overseas customers visited our factory every year.

2    Q: What about the warranty of your equipment? Do you supply spare parts?
     A: Our warranty is one year(12 months)or 1500 hours, and we can supply spare parts also.

3    Q: Do you provide after-sales service?
     A: Yes. We have a professional after-     sale service team to promptly and thoroughly solve your problems.

4    Q: Do you provide equipment operation training?
 A: Yes. We can send professional engineers to the working site for equipment installation,  adjustment, and operation training. All of our engineers have passport.
