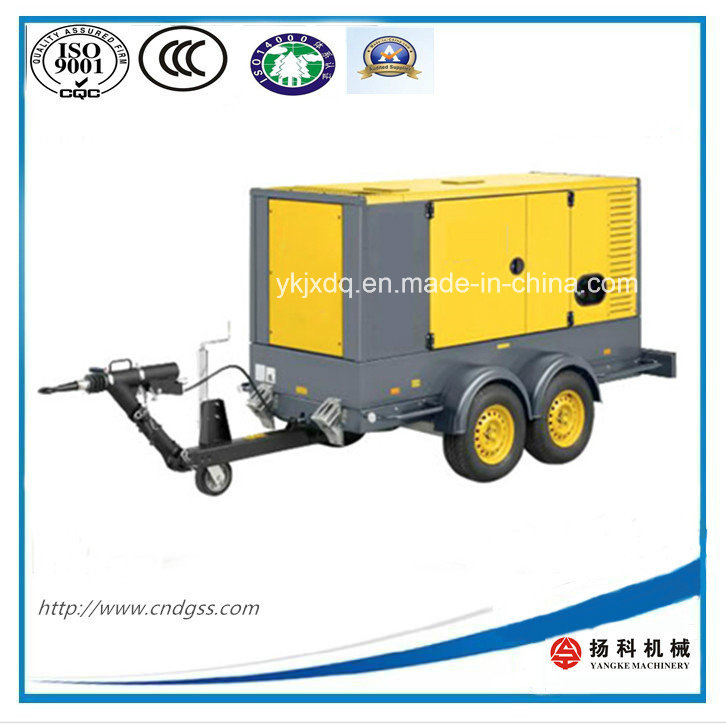

Top Selling! 30kw/37.5kVA Trailer Mobile Diesel Generator

Prod Model:	QSC-30GF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50Hz
Power:	30kw/37.5kVA
Rated Rpm:	1500
Rated Voltage:	400/230V
Rated Current:	144.3A
Cylinder No.:	4
Bore/Stroke:	102*120mm
Displacement:	3.9L
Lubricating Capacity:	11L
Fuel Consumption:	209L
Type:	Basic Diesel Generator
Installation Method:	Portable
Stroke:	Four Stroke
Cooling Method:	Water Cooling
Output Type:	AC Three Phase

Product Description

30KW/37.5kVA silent type Genset with Cummins engine 4BT3.9-G1, equipped with Alternator Yangke/Stanford//Marathon, the control panel is Karsen/Deepsea. The frequency is 50Hz, the rated speed is 1500rpm/min or 60Hz/1800rpm/min, the insulation class is IP23/H, self-exciting, brushless and the altitude is about 1000m, three-phase four wire. Open size/ Super silent DG set, the noise level never exceed 70db at a distance of 7m.

Model	QSC-30
Configuration	400V - 3PH
Frequency	50 Hz
Rated speed	1500 r/min
Rated power factor-lagging	0.8
Rated apparent power-PRP	37.5 kVA
Rated active power-PRP	30 kW
Rated Voltage line to line	400 V
Rated Current	144.3 A
Maximum sound power level (LWA)  according to 2000/14/EC OND	94 dB(A)
Maximum sound pressure level at 7m	69 dB(A)
Capacity fuel tank- standard frame	277 L
Fuel autonomy at full load- standard frame	13.2 h
Capacity fuel tank- high frame	860 L
Fuel autonomy at full load- high frame	40.9 h
Alternator
Brand	Leroy Somer
Model	LSA44.2 VS45
Degree of protection	IP23
Insulation class	H/H
Engine
Brand	Cummins
Model	4BT3.9-G1
Rated net output	36 kW
Number of cylinders	4
Coolant	Water
Speed governing	Electronic

Packaging & Delivery

Packaging Detail:	generator standard exporting package
Delivery Detail:	within 5-25working days after the deposit

 Company Information

Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.


With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.


We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.


 Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.


FAQ:
(1)  Your company is factory or Trade Company?
       Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2)  Your diesel generator power range?
      Answer: Now we mainly produce QS series 8-3000kva brushless alternators.
(3)  Which brand Electrical Generator you produce?
      Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel  generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
     Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America

Contact
Yangzhou YANGKE Machinery Electric Co.,Ltd
Contact person:Tina
Mobile:+8618952721120
Fax:0514-86822288
Tel:0514-82275368
Web:www.cndgss.com
