| Prod Model: |
LTP2500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE ISO9001 |
| Protect Feature: |
IP44 |
| Speed: |
1500RM |
| AC Voltage: |
220V |
| Start System: |
Recoil Starter |
| Use: |
Generating for Home, Shop, Camp etc |
| Warranty: |
1 Year |
| Efficiency: |
Ie 1 |
| Phase: |
Single-Phase |
| Crankcase: |
Magnesium Alloy |
| Output Type: |
AC Three Phase |
Product Description

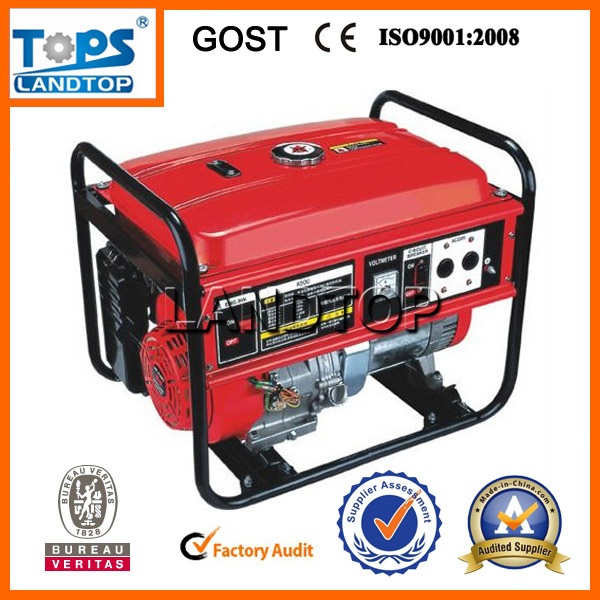

Gasoline generator specifications:
Engine: ZL168F-1 6.5HP
Engine mode: OHV, tilt, single cylinder, forced air cooling, 4-stroke
Displacement (CC): 196
Rated power: 3.8kw
Igniting mode: T. C. I.
Starting mode: Recoil start
Fuel volume (L): 15
Fuel consumption (L/hr): 1.22
Continuing working time (hr): 13
Oil volume (L): 0.6
Noise (Away from 7m)(bd): 65
Alternator:
Rated frequency (Hz): 50Hz or 60 Hz
Rated voltage (V): 110/220/230/240
Rated output: 2.7kw
Maximum output: 3kw
Generator set
Packing Dimensions (mm): 610*445*480
Net weight(kg): 65
Usual Accessory: Large fuel tank, large size muffler, large size air filter, fuel gauge, voltmeter, automatic voltage regulator, oil alarm system, non-fuse breaker
Optional accessory: Four wheel vehicle set
Advantages: EXCELLENT PERFORMANCE, ECONOMIC USE, LONG SERVICE LIFE, LOW EXHAUST EMISSIONS AND NOISE, COMPACT STRUCTURE, LIGHT WEIGHT, EASY USE
Pricing: Negotiation
Payment Details: T/T IN ADVANCE OR L/C AT SIGHT
Min Order: 10
Ship Date: 15 days per 40FT container
|
Generator |
Rating frequency(Hz) |
50 |
60 |
|
Rating Voltage(V) |
110/120/220/230/240 |
|
Rating power(Kw) |
2.7 |
|
|
The Max. power(Kw) |
2.5 |
|
|
Power factor(cos) |
1.0 |
|
Engine |
Type |
154F |
|
Category |
OHV, tilt, single cylinder, forced air cooling, 4-stroke
|
|
|
|
|
Exclusion of cylinder(cm3) |
87 |
|
The Max. output power(KW/rpm) |
2.2/3600 |
|
Ignition system |
Transistorized magneto |
|
Start system |
Recoil |
|
Capacity of fuel tank(L) |
6.0 |
|
Consumption of fuel(L/h) |
0.63 |
|
Consecutive Working(h) |
9 |
|
Noise(at7m)(dB) |
65 |
|
|
Capacity of engine oil |
0.4 |
|
Dimension |
Set dimension(mm3) |
610× 445× 480 |
|
Net weight(kg) |
65 |
LANDTOP GROUP is specialized in manufacturing and exporting a wide range of electromechanical products, covering Alternators, Generators, Electric Motors, Water Pumps, etc.
With years of development, LANDTOP has developed into a large-scale, modern, comprehensive and international company. Our sales department is located in Fuzhou City (Fuzhou Landtop Co., Ltd. ), a sea-port city, enjoying convenient transportation network. We also have our own factory in Fu'an City (Fu'an Landtop Power Co., Ltd. ). Our international center is located in Hongkong(Hongkong Landtop Group Ltd. ). Our group is equipped with a great number of precise assemble lines, integrated testing systems and checkout equipment. We have professional engineers, skilled QC members, experienced salesmen and the best after-sales services. The current annual export production value is over 15 million US dollars.
We are always making great efforts to achieve the integration of manufacture and sale. We are able to meet our customers' demands, providing them with superior quality products. Our products, owing to reasonable price, high efficiency and energy saving performance, are widely praised by clients in over 80 countries and regions, such as Europe, America, Southeast Asia, the Middle East, Africa, etc.
Professional R&D system, standard technology, a skilled QC team and the best management group can offer you firm guarantee. Our group is continuously making arduous efforts on innovation to better serve our customers. We ensure that our cooperation will bring a win-win benefit to both of us.
