| Prod Model: |
AAE-S95 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Model: |
Aae-S95 |
| N.W.: |
36kg |
| G.W.: |
38kg |
| Packing Size: |
57X19X34.5cm 1PC/CTN |
| Function: |
Car&Truck Winch |
| Motor: |
5.5HP/4.0kw |
| Drum Size: |
2.5"*8.8" |
| Overall Dimension: |
537mm*160mm*218mm |
| Mounting Bolt Pattern: |
254mm*114.3mm |
| Certification: |
ISO |
| Brand: |
Arch Auto Equipment |
Product Description

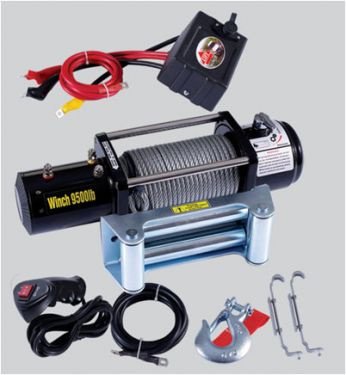

Car & Truck Winch
High quality Car & Truck Winch.
Rated line pull: 9500LBS(4300kgs) single line.
Motor: 5.5HP/4.0kw, Series Wound.
Control: Remote switch, 12ft (3.7m)lead.
Gear train: 3 Stage Planetary.
Gear reduction ratio: 195.4: 1.
Clutch: Sliding Ring Gear.
Braking Action: Automatic In-The-Drum.
Drum Size: Φ 2.5X8.8" (Φ 63.5mmx224mm).
Cable: 94ft of 5/16 diameter (28m of 8.3mm diameter).
Fairlead: 4-Way Roller Fairlead.
Remote Control: Included.
Battery: Recommended: 650CCA minimum for winching.
Battery Leads: 2 gauge, 72(183mm).
Finish: Black powder coat.
Overall Dimension: 21.1X6.3X8.6".
(537mmx160mmx218mm).
Mounting Bolt Pattern: 254mmx114.3mm.
Weight: N. W. 36kgs G. W. 38Kgs.
Packing size: 57X19X34.5cm 1PC/CTN.
.Automatic load holding break for safety.The clutch allows you to release winch rope by hand.
Aircraft grade wire rope, or synthetic rope is optional
Remote switch + wireless remote controlproof.Sealed aluminum body, waterproof winch
We have 100% testing on winch pulling capacity and function. Our products are of well-designed, beautiful appearance and easy to install.
