TUV/CE/Iec Certificated 180W Mono Silicon Solar Panel

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brade Name:	Snm
Model Munber:	Snm-M180
Peak Power:	180W
Material:	Monocrystalline Silicon
Number Of Cells:	6*12PCS
Dimendions:	1580*808*45
Weight:	15.5kg

Product Description

Product name: Mono 180W solar panel 72PCS in series

Model number: SNM- M180

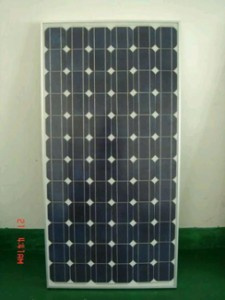

1. Picture & Electrical data:

1). Cell Type: Monocrystalline Silicon, 125mm*125mm
2). Peak Power (pmax): 180W
3). Number of cells: 72 cells in series
4). Weight: 15.5kg
5). Dimensions: 1580*808*45mm
6). Maximum Power Voltage(Vmp): 36.0V
7). Maximum Power Current(Imp): 5.0A
8). Open Circuit Voltage(Voc): 43.2 V
9). Short Circuit Current(Isc): 5.6A
10). Maximum System Voltage: DC 1000 V

2. Temperature Coefficients:
A) NOCT(Nominal Operating Cell Temperature): 47Degree celsius.
B) Voltage temperature coefficient(Voc): -0.34%/Degree celsius.
C) Current temperature coefficient(ISC): +0.09%/Degree celsius.
D) Power temperature coefficient(Pmmp): -0.37%/Degree celsius

3. Characteristics:
1) High efficiency solar cells ensures high performance of solar module and create more power in peak hours.
2)3.2mm high transmissive Low iron tempered glass. EVA laminate and Glass yield long life modules while enhancing cell performance.
3) Bypass diodes to avoid hot-spot effect.
4) Pre-cables with fast-connecting systems for convenient installation.
5) Stable, heavy duty anodized Aluminum frames with convenient mounting-access, for high wind-pressure and snow load.
6) The backside of frames is equipped with drainage holes in order to eliminate the risk that rain or snow water may accumulate in the frame through and freeze or even bend the frame in cold season.
7) 25 years limited pwer warranty...

4. Certifications
TUV, CE, IEC, ISO

5. Warranty
Warranty 10 years workmanship, 10 years 90% power warranty, and 25 years 80% power warranty.
