| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Blade: |
Three Blade |
| Stress Way Of Blade: |
Resistance |
| Rotating Shaft: |
Vertical |

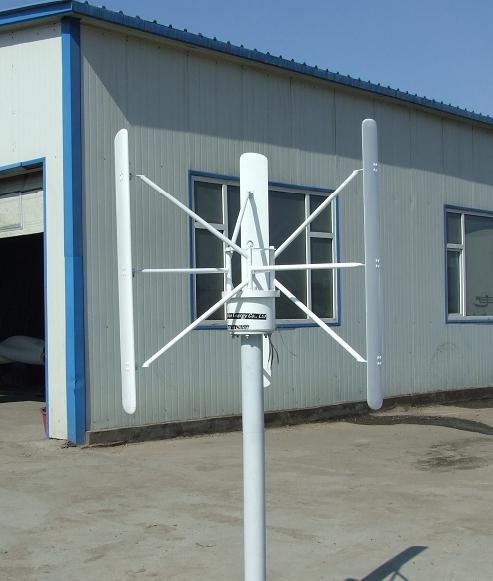

Product Description
Rated power: 500VA
Output voltage: AC 12/24V
Rotor diameter: 6.6Ft(2.0m)
Blade Length: 5.9Ft(1.8m)
Rated wind speed: 22.5mph(10m/sec)
Start-up Wind Speed: 6.2mph(2.8m/sec)
Cut-in wind speed: 8.9mph(4.0m/sec)
Survival Wind Speed: 112mph(50m/sec)
Work wind speed: 4-50m/s
Blade material: Fiberglass
Blade profile: NACA0018
Number of blades: 3
Turbine weight: 55Kg
Tower height: 6m
Tower type: Steel (Q235B)
Package Size (m): 2*0.6*0.4
Suggest battery Capacity: 12V100AH 2PCS.
Jl carbon free energy Co., Ltd. is a high-tech enterprise. Our team began the study of wind energy use and set up an independent R&D department in changchun in 2000. Moreover, we have made a systemic study of vertical axis wind turbines from aerodynamics, permanent magnet generators, materials, to formation, and made significant development in incorporating jl carbon free energy Co., Ltd.
At present, we have made a breakthrough in the vertical axis wind turbines, which are difficult projects but with newer and more advanced industrialization in the world. Our products are updated from 250watt, 300watt, 500-watt, 1000-watt, 1500watt, 2000watt, 3000-watt, 5000watt and 10000-watt plasma products, and they have already been sold in large scale. Fans completed the 1.5-megawatt alignment and 2.5-megawatt are in designing. Furthermore, we have a number of products which have been authorized with application invention patents.
