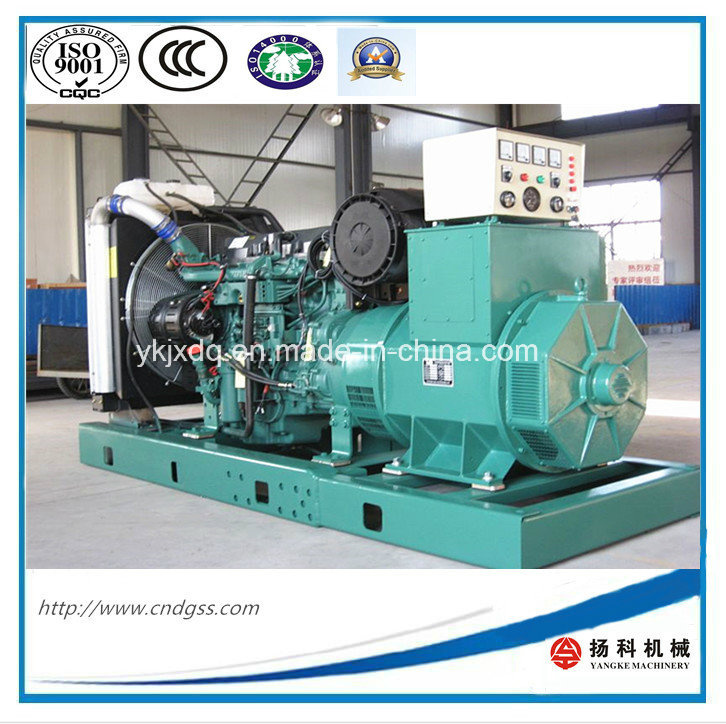

Volvo Open Genset 350kw/437.5kVA Power Diesel Generator

Prod Model:	QSV-350GF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	50Hz
Color:	Deep Green
Rated Rpm:	1500/1800/3600
Power:	350kw/437.5kVA
Cylinder No.:	6
Displacement:	16.12L
Lubricating Capacity:	48L
Fuel Consumption:	200L
Size(L*W*H Mm):	3350*1140*1900
Weight(Kg):	3450
Type:	Basic Diesel Generator
Installation Method:	Portable
Stroke:	Four Stroke
Cooling Method:	Water Cooling
Output Type:	AC Three Phase

Product Description

1.International Warranty Service
2. Short delivery time
3. With ISO9001& CE certification
4. Spare parts are easy to get from worldwide market with much cheaper price
5. Coupled with Stamford alternator or Chinese alternator
6. Perfect after-service network
7. Both 50Hz and 60Hz
8. Rigorous test including 50% load, 75% load, 100% load and 110% load

Place of Origin:	Yangzhou, China China (Mainland)	Brand Name:	YANGKE	Model Number:	QSV-350GF
Output Type:	AC Three Phase	Speed:	1500/1800 rmp	Frequency:	50/60HZ
Rated Power:	350/388	Rated Voltage:	400/230V, 380V/220V	Rated Current:	720/760A
color:	Green	Engine:	volvo	Speed Governing System:	Electronic Type
Wire Connection Type:	Three Phase Four Wire, Y Type	Control System Model Number:		warranty:	one year
Control System brand:	Smartgen




Standard Features
High efficient water cooled diesel engine	Radiator with cap and drain point.
Brushless alternators (Class H, with AVR.)	Fully guarded engine driven fan
Heavy duty rubber anti-vibration mountings	Circuit Breaker - 3 pole (MCCB)
12/24V starter batteries and connecting cables	Base fuel tank for 12 hours running at 100% load
Separate engine-drive battery charging alternator	Oil filter - Diesel filter - Air filter
Industrial silencer for open type generator sets	Fully welded steel baseframe with lifting and
Residential silencer for open type generator sets	Fork-lifting facilities.
Auto start / Digital Tide Easycon Control Panel	Sound proof & Weather protective enclosures for
Wiring with IEC standard	Silent type generator sets.
Factory Test Certificate
Operation & Maintenance Manual & Diagrams
Worldwide Product / Technical Support




Engine General Performance		Alternator data
Manufacture	VOLVO	Brand	Sanford
Engine Model	TAD1345GE	Model	QS-350
Engine Type	4 cycle, in-line, 4-cylinder	AVR Model	SX440/SX460
Engine Speed	15000/1800 r.p.m	Coupling / Bearing	Direct / Single Bearing
Base Output Power	350kw	Phase	3 Phase
Standby Power	388kw	Power Factor	0.8
Governor Type	Electronicl	Winding pitch - Code	2/3 - (N° 6)
Air Intake Way	Turbocharged & After cooled	Drip Proof	IP 23
Displacement	16.12L	Excitation	Shunt
Cylinder Bore * Stroke	144mm × 165mm
NO. of Cylinders6	6
Compression Ratio	16.5:1





Packaging & Delivery

Packaging Detail:	generator standard exporting package
Delivery Detail:	within 5-25working days after the deposit



Company Information

Yangke Machinery Electric is a high-tech generator manufacturer which contains R&D, production and marketing together.

Our company not only establishes humanized modern enterprise with perfect quality management system and certification authority, but also equipped with international advanced facilities of R&D, manufacture and test. The concept of our company is to develop the best product, to provide the best service. We will spare no effect to serve our customer with products of high quality and after-sales service in a variety of ways.


With the help of the technical strength, our company has formed a structure of product series. The current main products are: QS series 8-3000KVA brushless alternators, which can be coupled with both domestic and foreign brands of diesel engines.


We only offer products using major engine brands such as Cummins, Perkins, Doosan, MTU Diesel/Mitsubishi etc. At YANGKE, we also customize the standard models to meet your unique requirements. Our Generators are also top of the line and come with base mounted fuel tanks, battery, battery rack and cables, vibration isolators between engine/diesel generator and base frame, a circuit breaker to protect the generator from overload and a two-wire auto start ready controls for automatic transfer switch operation. (Note: Automatic Transfer Switch Required for True Auto Operation).
Our products are sold to Southeast Asia, central Asia, the Middle East, Africa and South America.


 Sales promises:
YANGKE power provides a full line of brand new and high quality products. Each and every unit is strictly factory tested.
Warranty is according to our standard conditions :
a. 15months,counted on the day YANGKE sold to the first buyer;
b. one year after installation;
c.1000running hours(accumulated),subject to the earlier one.
Service and parts are available from YANGKE POWER or distributors in your location.


FAQ:
(1)  Your company is factory or Trade Company?
       Answer: We are professional low oil consumption diesel generator sets manufacturing factory.
(2)  Your diesel generator power range?
      Answer: Now we mainly produce QS series 8-3000kva brushless alternators.
(3)  Which brand Electrical Generator you produce?
      Answer: Now we produce USA Cummins brand Electrical Generator, Sweden Volvo Generator, Korea Doosan diesel  generator, German Deutz Electrical Generator, and China local brands' generator.
(4) Where is your main market?
     Answer: We mainly export Electrical Generators to southeast Asia, central Asia, the Middle East, Africa and South America
