| Prod Model: |
Kingkar-10000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Machinery & Hardware |
| Type For Cutting Machine: |
Flame Cutting Machine |
| Type For Fold-Bending Machine: |
Manual Fold-Bend Machine |
| Certificate: |
CE, ISO 9001:2000 |
| Automation: |
Automatic |
| Condition: |
New |
| Type: |
Steel Cutting Machine |
| Model: |
Kingkar-10000 |
| Input Power: |
3 Phase 380V (50-60)Hz±10% |
| Gas Source: |
Gas |
Product Description
1. About hydrogen gas
Hydrogen gas is separated from the water electrolysis hydrogen and oxygen gas for industrial cutting. Hydroxide produced by the power generator equipment and water, a mixed gas of hydrogen, acetylene and high temperature close to the temperature of the flame cutting was concentrated, preheating, high cutting efficiency, raw water only, everywhere desirable, therefore, generated the hydrogen gas cheap, non-polluting. No effect on the human body of the gas combustion.
2. Principle
A. The principle is based on the theory of electrolysis.
B. It is consumed only water and electricity in the course of using
C. To electrolyze water into pure hydrogen and oxygen.
D. Burning the gas then form Oxy-hydrogen flame.
E. Oxy-hydrogen flame is a high temperature energy source which can be used for precision cutting processing equipment, giving results that are economical, reliable, safe and environmental.

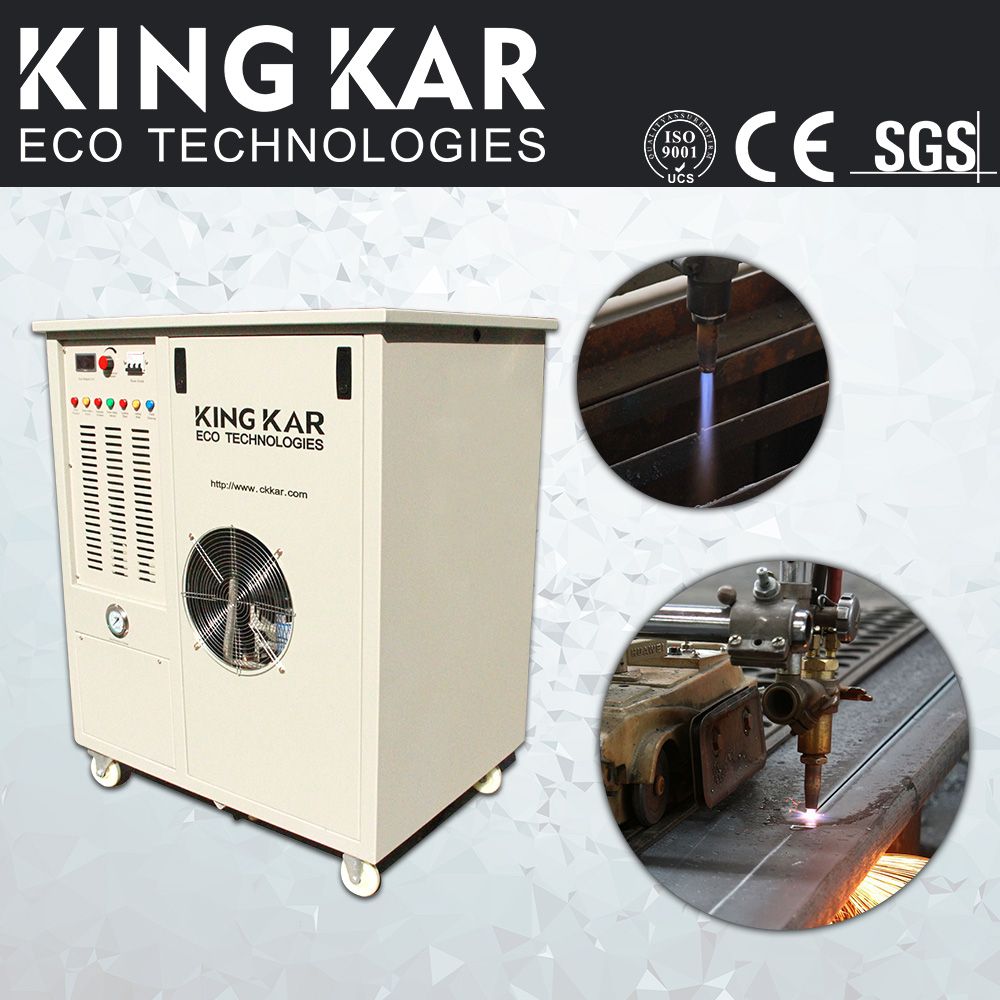

3. Features of hydroxide cutting machine
A. It is a mature production technology, which can be operated safely and reliably.
B. The process flow is short and simple.
C. Both energy consumption and production cost are relative low.
D. Simple and easy operation, high automation.
E. No environmental pollution.
4. Other Features of hydroxide cutting machine
A. Safer fuel gas
Mixture of flammable gas and air or Oxygen is explosive, and it has a lower and upper limit of concentration for explosion.
Lower explosive limit for Propane gas = 2.2%
Lower explosive limit for Acetylene gas = 2.5%
Lower explosive limit for Hydrogen gas = 4.0%.
Thus, Hydrogen is much safer than the other gases because of its higher value of Lower Explosive Limit. Additionally, because Hydrogen is lighter than air, it does not stagnate but will quickly diffuse in the atmosphere.
B. CO2 Emissions reduction
Hydrogen is a clean energy source. Water is the only product of combustion. Hydrogen combustion produces no CO2 because the molecule contains no Carbon atom, Hydrogen is the cleanest energy as an alternative to LPG, Acetylene gas or Natural gas.
C. Lower heat stress
Steel plate when heated for the same time by both conventional and Hydrogen fuelled flames shows the following heat distribution in the plate. The high combustion speed of the Hydrogen flame reduces the flame area and concentrates the thermal energy. This allows the high pressure oxygen passage to heat only the immediate area being cut, preventing excessive heat transfer to the surrounding area. This reduces cooling time and distortion caused by excessive heat stress.
5. Product features
A. High Security
Do not produce "gas explosion" and endangering the lives of staff members.
Do not produce "carbon monoxide" and endangering the lives of staff members.
Gas supplies immediately, do not store gas.
B. High environmental
Complete combustion of the gas can produce
There will be no smoke and carbon monoxide produced
C. High efficiency
When compared with acetylene, LPG and other gas, our hho gas is both economical and affordable.
D. Centralized heat
Low heat radiation, can maintain a good working environment, avoiding operator fatigue due to heat.
E. High mobility
Body size is moderate, the bottom of the additional casters for easy moving, suitable for a variety of places.
6. Packaging
One carton box
7.Technical Data Sheet
| Model | Kingkar-3000 | Kingkar-5000 | Kingkar-7000 | Kingkar-10000 |
| Voltage(V) | 380 ±10%,50/60Hz,three phase |
| Rated capacity(KVA) | 9 | 15 | 22 | 31 |
| Working pressure(Mpa) | ≤0.2 |
| Relative humidity(%) | ≤90 |
| Rated gas output(L/H) | 3000±10% | 5000±10% | 7000±10% | 10000±10% |
| Water consumption(L/H) | 1.6 | 2.7 | 3.8 | 5.8 |
| Maximum Cutting Thickness(mm) | 110 | 220 | 310 | 420 |
| Effective perforated thickness(mm) | 40 | 60 | 70 | 90 |
| Cooling way | Air cooling |
| Insulation class | F |
| power protection grade | IP2S |
| Flame temperature(T) | 800-3200 adjustable |
| Working medium | Filtered water or deionized water or soft water |
| Working | continuous |
| environment temperature(T) | 0-40 |
| Dimension(L×W×H)mm | 1020*770*1270 | 1250*830*1720 | 1300*930*1820 | 1500*930*1940 |
| Weight(KG) | 293 | 567 | 653 | 894 |
We can do OEM and also can design as your special request.
Welcome to visit our factory at any time in the future.
KingKar provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.
KingKar Oxy-hydrogen generator for boiler only consumes water
And electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.
Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc
