Frequency:
50Hz
Rated Power:
24--120kw
Rated Voltage:
400/230
Rated Current:
43.2--216A
Engine Brand:
Deutz
Alternator Brand:
Stamford, Marathon, Landian
Starting Method:
Electrical
Type:
Basic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Excitation Mode:
Brushless
Product Description

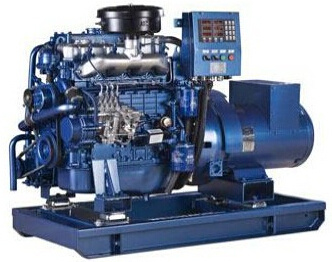

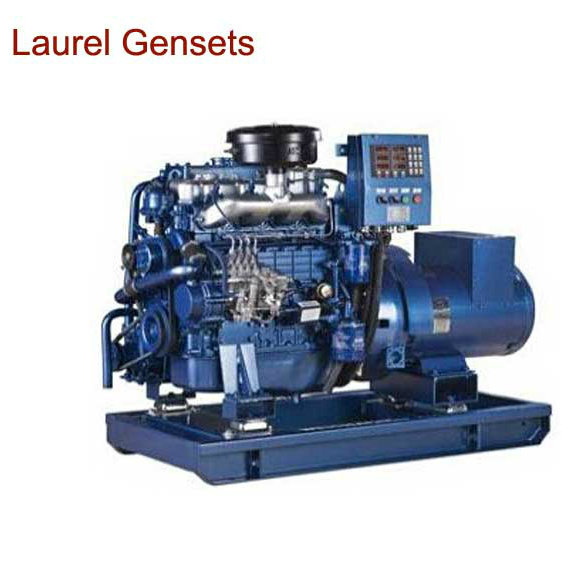

Water-cooling Marine Generator 30KVA with CCS, RINA, BV
Specifications for marine generator
MARINE DIESEL GENSET
Genset Model
Standby (KW/KVA)
Prime (KW/KVA)
Rated loading Fuel Consump (L/h)
Engine Mode
Prime power
Weight (kg)
Dimension (MM)
Length
Wide
Hight
LFM24GFC
24/30
26.4/33
7.74
ZH4100CD
30.1
850
1850
770
1450
LFM30GFC
30/37.5
33/41.25
8.66
R4105CD
40
920
2000
770
1450
LFM40GFC
40/50
44/55
11.55
R4105ZCD
56
960
2000
770
1450
LFM50GFC
50/62.5
55/68.75
14
R6105CD
58
1100
2300
770
1600
LFM64GFC
64/80
70.4/88
17.92
R6105ZCD
84
1230
2400
770
1600
LFM75GFC
75/93.75
82.5/103.13
17.92
R6105ZCD
84
1300
2400
770
1600
LFM90GFC
90/112.5
99/123.75
24.53
R6105AZLCD
110
1360
2400
770
1600
LFMJ24J-W
24/30
26.4/33
4.8
D226B-3CD
30
760
1350
620
1231
LFMJ30J-W
30/37.5
33/41.25
5.9
TD226B-3CD
40
810
1350
620
1231
LFMJ40J-W
40/50
44/55
7.9
TD226B-3CD
40
810
1350
620
1231
LFMJ50J-W
50/62.5
55/68.75
9.9
WP4CD66E200
60
1000
1663
620
1242
LFMJ64J-W
64/80
70.4/88
12.8
WP4CD100E200
90
1100
1958
800
1336
LFMJ75J-W
75/93.75
82.5/103.13
16
WP4CD100E200
90
1100
1958
800
1336
LFMJ90J-W
90/112.5
99/123.75
18
WP4CD100E200
90
1100
1958
800
1336
LFMJ100J-W
100/125
110/137.5
20
WP4CD132E200
120
1380
2038
800
1336
LFMJ120J-W
120/150
132/165
24
WP4CD152E200
138
1450
2108
800
1336
Why choose us?
Company'sProfile Guangzhou Laurel & Honesty Holdings, founded in 1981, has 35 years export experience in Guangzhou. Our main products are diesel generator sets, generators, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE,ROHS, GS, TUV etc.
Guarantee Service We deliver not only our products, but also our value-added technical support and after-sales service. We ensure that all our original purchasers get Laurel & Honesty products guarantee under this warranty statement.
Warranty Period We will provide a warranty period of 24 months or 1200 operating hours to the original purchasers for all our Diesel associated products, and a warranty period of 12 months or 1000 operating hours to the original purchasers for all gasoline associated products. The warranty period starts from the day of delivery to the original retail purchaser.
Guangzhou Laurel & Honesty Holdings, founded in 1981, is professional company focusing on generators and Agricultural machines.
It has been 34 years since our factory was founded. Our main products are diesel generator sets, generators, marine engines, engines, water pumps and other agricultural machinery products. We have obtained the relevant certifications such as ISO, CE, RoHS, GS, TUV etc.
QUALITY GUARANTY POLICY
1. Guaranteed products
All kinds of Generator sets, generators, engines, pumps, control panels and agricultural machines sold by our company, Guangzhou Laurel & Honesty Holdings.
2. Base warranty period
1)The warranty period of generator sets is 2 years or 1200 running hours (the earlier one shall prevail) from the date when the generator set have been delivered from the factory.
2)The warranty period of generators, engines, pumps, control panels and agricultural machines is 1 year or 1000 hours from the date when the goods have been delivered from the factory whichever is coming first, the warranty period will be ended.
3)Any other special stipulation according to the order.
3. Guaranty range
The user shall strictly follow the operation handbook and service statement (included all the products mentioned above) to maintain and keep the equipments, the goods has any malfunctions caused due to the manufacture quality problems in the guarantee period.
4. Limit of guaranty
1)The goods is damaged during transport, Carrier shall take charge of the amends.
2)The goods is damaged due to unsuitable setting or doesn't follow the installation manual which offered by our company.
3)The goods is damaged due to the user doesn't follow the service statement to replace the filter and lube oil in the stated period.
4)The goods is damaged due to the user doesn't use the appointed oil filter, fuel filter, air filter which mentioned in the manual book.
5)The goods is damaged due to the user make bold to replace or use the spare parts or add other equipment on it without our company approbation.
6)The goods is damaged due to disassembly parts from the equipments without our company approbation.
7)The goods is damaged due to unsuitability place, start, warm-up, stop and so on.
8)The goods is damaged due to using disqualification fuel or other substance mixed in the fuel, such as water, impurity, contamination and so on.
9)Our company shall provide free maintenance service for malfunctions caused due to the manufacture quality, but not take charge of any overhead expensed, losing and any fault analysis fee.
. AFTER-SALES SERVICE POLICY
Guangzhou Laurel & Honesty Holdings will meet the needs of consumers as possible. They can expect to enjoy our specialized service from product manufacturing, delivery and installation to the technical support and maintenance during operation process. After receive the feedback of quality problem, we answer the consumers and supply problem solve program in 24 hours. Do our best to supply satisfied service.
You can get the following services:
1. Provide complete qualified products:
Once business cooperation is established, customers will immediately be presented with detailed technical information according to products.
(1)Product information
(2)Engine information
(3)Alternator information
(4)Automatic Start-Stop Systems information
(5)Insulation Protection information
2. Provide complete technical support, including installation and commissioning services:
After the customer receive the goods, we can provide installation and commissioning advisory guidance, and also can assign engineering technologist with installation experience to the scene and guide the on-site installation if necessary.
3. Professional technology personnel training:
If the customer requirements, we will arrange technical personnel training, guidance.
4. Maintenance Service.
5. Supply technology assistance for your whole life.
