Water Power Station Arrangement and Construction
| Price: |
US $ 95000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
CJA475-W-105/2X12 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia |
| Water Head: |
251m |
| Design Water Flow: |
0.32m³/S |
| Output Capacity: |
2750kw |
| Runner Diameter: |
105cm |
| Nozzle Diameter: |
12cm |
| Nozzle Number: |
Two Nozzles |
| Synchronous Generator Model: |
Sfw-2750-10/1730 |
| Rotating Speed: |
600rpm |
Product Description
Water Power Station Arrangement and Construction
Pelton turbine suit to water head 100 to 1000 meters and with certain small flow.
It could vertical and horizontal arrangement, nozzle numbers from one to six.
Pelton turbine with feature of wide flow high efficiency region. It could start turbine
with 10% of rated flow. Pelton turbine with one or two nozzles usually adopt horizontal
arrangement, but multiple nozzle Pelton turbine adopts vertical arrangement.
Pelton turbine units are wildly used in mountain area all over the world, and well known
by its simple structure, less investment, high efficiency, and reliable long service life.
1,Suitable water head : 80-1000m
2, Output scope : 50Kw -20Mw
3, Runner diameter : 55cm -400cm
4,Runner material :cast or forged stainless steel
5, Arrangement type : Vertical and Horizontal
6, Nozzle numbers : 1-6

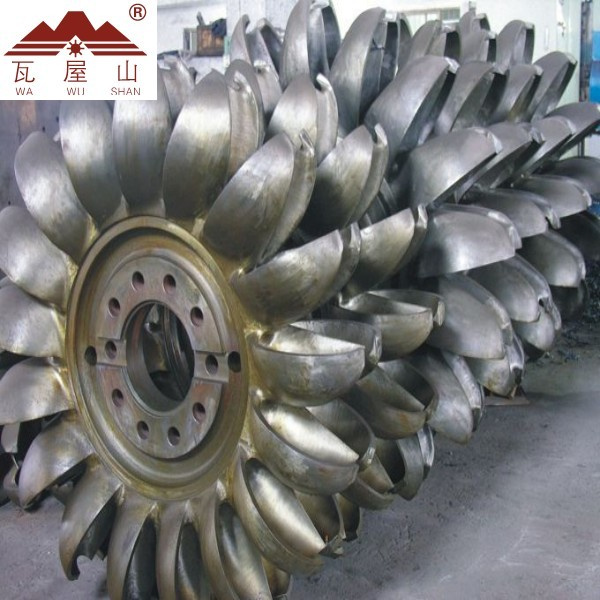

Pelton runner manufacture workmanship has been improved sharply in recent years.
The runner could be wholly casted or forged stainless steel and then be shaped and
polished by digital control machine tool. Pelton runner has been manufactured by us
all this high strength, higher efficiency, and longer service life. The factory tests including
static and dynamic balance test, UT test, and dimension measurement.
Hongya Power Generating Equipment to Utilities Limited, is a professional manufacturer of hydro power generating equipments. It has high quality products include mainly water turbine, generator and governor. Water turbines units with an individual capacity of 50kw~20000KW, we have jet turbines, Pelton turbines, Francis Type turbines, and axial turbines. All these products are produced and tested according to national standards, and machinery trade standards. The products have such characters as rational structure, reliable operation, high efficiency, standardized spare parts, high generalization, and convenient maintenance. They are available in every variety and model, and have reliable quality.
Hongya Power Generating Equipment to Utilities Limited has obtained the certification of ISO9001/2008, SGS certificate and is the member of Chinese Society of Electrical Industry. Products are sold all over China and exported to Albania, Nepal, Indonesia, Turkey, Vietnam and Myanma, etc
Stepping into the past and looking forward to the future, we will continuously strengthen the innovation on products and techniques, strictly control the product quality and build up more perfect after-sale service system.
