| Prod Model: |
YL-1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Stainless Steel/Carbon Steel |
| Volume Outlet Diameter: |
65mm |
| Tank Diameter Weight Of Gas Pressure Tan: |
815kg |
| Total Volume: |
2.3m3 |
| Height Of The Equipment: |
2970mm |
| Tank Diameter: |
1200 |
| Usage: |
Environmental Protection |
| Motive Force: |
Pressure |
| Certification: |
CE |
| Type: |
Water Refilling Station |
Product Description
Scope of application
1. Continuous heating supply system with high temperature water:
2. Industry and civilian continuous heating system of hot water station:
3. Hot water and high temperature water circulation operating system;
4. Hot and cold water system of fan coil.
Performance characteristics

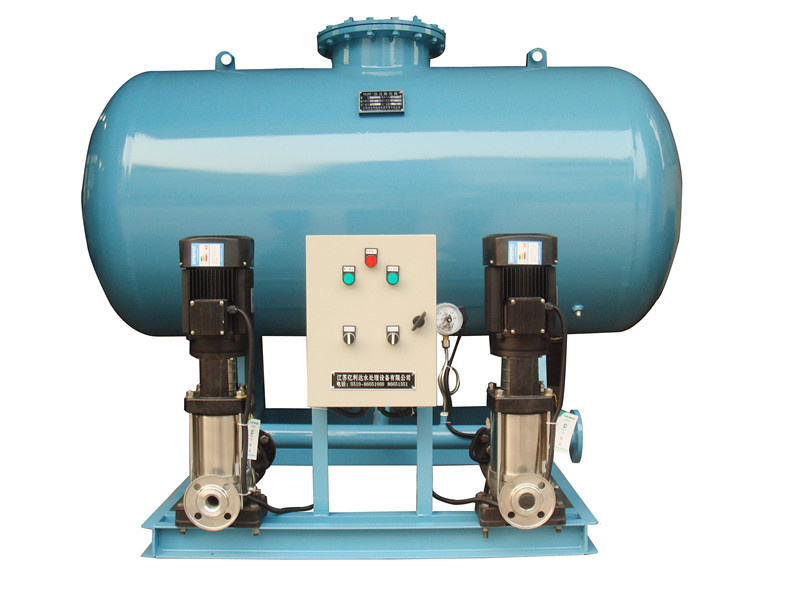

The small size pressure-stabilizing expander unit as a special technical device is able to set the expansion part and gas pressure stabilizing part separately, so that the most expansion capacity of the system can be stored in isolated expander and the volume utilization can be up to 90%, therefore, the whole volume and height is smaller, saving 50% -60% of land and facilitating the arrangement and installation of equipment and also saving the civil engineering cost of the machine room.
It is safe and simultaneous advanced automatic control system. It has double pumps for both alternating running and simultaneous running. It has functions of a low water level protection and anti-pressure instability, etc. Which could ensure sketch the safe and stable operation of the device.
| Model | Overall Volume (m 3) | Adjusted volume
(m 3 | Inlet and outlet (mm) | Height of device(H) | Diameter of tank
| Length of trestle
A | Width of trestle
B | Weight of tank (Kg) |
| YL-400 | 0.125 | 0.038 | 25 | 1200 | 400 | 1200 | 700 | 150 |
| YL-600 | 0.4 | 0.15 | 50 | 2000 | 600 | 1500 | 800 | 250.1 |
| YL-800 | 0.90 | 0.35 | 50 | 2500 | 800 | 1800 | 900 | 325.7 |
| YL-1000 | 1.37 | 0.41 | 65 | 2680 | 1000 | 2000 | 1100 | 430.4 |
| YL-1200 | 2.30 | 0.59 | 65 | 2970 | 1200 | 2200 | 1300 | 815 |
| YL-1400 | 3.40 | 1.02 | 80 | 3350 | 1400 | 2400 | 1400 | 1150 |
| YL-1600 | 5.034 | 1.57 | 80 | 3600 | 1600 | 2600 | 1600 | 1367 |
| YL-1800 | 7.06 | 2.12 | 100 | 3600 | 1800 | 2800 | 1900 | 1863 |
| YL-2000 | 9.42 | 2.85 | 100 | 3800 | 2000 | 3000 | 2100 | 2281 |
Jiangsu YLD Water Processing Equipment Co., Ltd. is a high-tech enterprise, specialized in the research, development, design, manufacture, installation, technical consultation and personnel training.
We mainly produce electronic scale removal, UV sterilization, filtration, softening and cyclone grit removal technology and equipment. With strong technical force and rich experience, our company strictly implements ISO9001 system in the plan and management. "High technology leads to market development" is our basic concept.
We have extensively cooperated with domestic key universities, research institutions and foreign professional manufacturers, such as DOW (Dow) Chemical Co., Ltd., HYDRANAUTICS (Hydranautics) Company, Company (a professional manufacturer of multi-stage pumps), MILTONROY (Milton) Corporation (a metering pump manufacturer), the US Soft Controller KINETICO and OSMONICS, We have also fully introduced advanced technology. Thus, our technology is always in the leading domestic level. Over the years, our company has specialized in a variety of water treatment equipment for food, beverage, pharmaceutical, hospital, precision electronic, fine chemical, electricity, painting and surface cleaning industries.
Our "LYD" high-quality products at reasonable prices and perfect after-sales services have won great trust from worldwide customers,
We are willing to cooperate with the friends from all over the world and creat fine future together!
