Prod Model: |
XLQ |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Usage: |
Environmental Protection |
Material: |
Carbon Steel or Stainless Steel |
Turbidity Of The Water: |
More Than 300 Degrees |
Water Turbidity: |
Less Than 10 Degrees |
Water Pressure: |
0.2 ~ 0.25MPa |
Head Loss: |
2mm |
Operating Temperature: |
Normal Temperature |
Condition: |
New |
Model: |
Xlq |
Brand Name: |
Peide |
Product Description

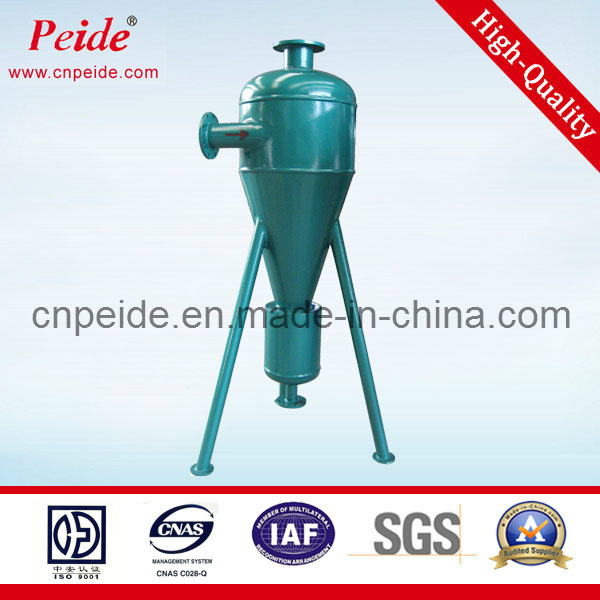

Well Water Desanding Equipment Sand Hydrocyclone for Water Treatment
Characteristics
1,Structure is relatively simple, low cost, easy to install and operate. Large capacity, small floor space, versatile, adaptable, without power, maintenance-free.
2,Compared with mechanical decontamination, expand tube, buffer tank and other grit removal equipment, it has its own characteristics: small size, large capacity, investment and operating costslow. In the device against the inner wall of the intake position with swirl and deflector shield, favor the formation of cyclone; strong impact, extended equipment life.
3,There is a guide plate in the interior wall of Swirl chamber and precipitation,which is helpful for the formation of cyclone settlement, so impurities will be led into the dirt trap as soon as possible. When there is sudden increase for pressure in the system, set the case of sewage water faster prevents impurities reveal, remains good sedimentation effect.
4,There is a stainless steel filter and water blocking laps on the bottom of outlet, decentralized water filters, slowing the flow rate, and further retention of suspended impurities in the water; the water in the filter below the water layer forming a stable rotation, suspended impurities gradually gathered around. They assembled into a loose circle of small groups under water blocking, flow into dirt trap along the inner wall.
Application
1,Domestic and industrial: river water, ground water, well water grit removal, coal washing water, industrial processing, solid-liquid separation;
2,Geothermal air conditioning water system to replace the current use of Ah type fan coil before decontamination, the complete elimination of the fan coil clogging dirt deposition and cooling water systems chiller condenser water decontamination, impurity control suspended solids and other issues;
3,Recycling water reuse: especially for steel, thermal, chemical, petroleum, mining, pharmaceutical, textile, electronics, food, paper and other industrial local quality miscellaneous drainage treatment and reuse;
4,Water, sewage treatment: reused water, sewage treatment plant, reduce fine filtration system into operation

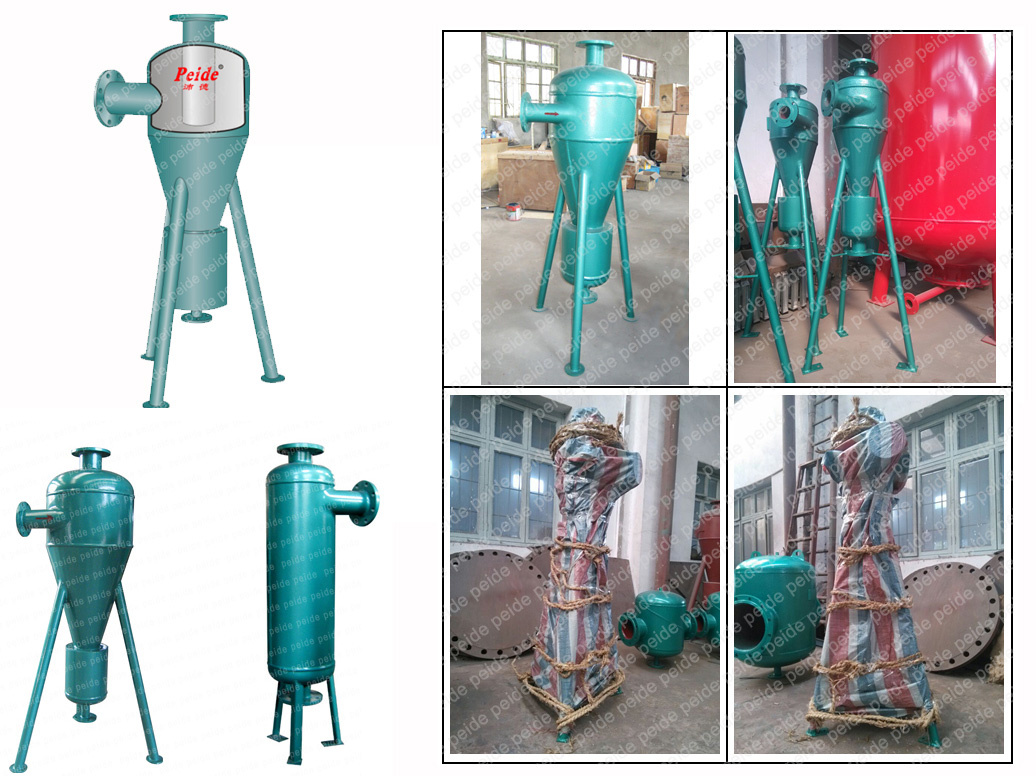

Product Details

Parameters
Material:Carbon Steel
Inlet Water Turbidity ≥300
Outlet Water Turbidity≤10
Inlet Water Pressure ≥0.2~0.25
Head Loss 2 mm
Desanding diameter>0.1mm
Working Temperature: Ambient temperature

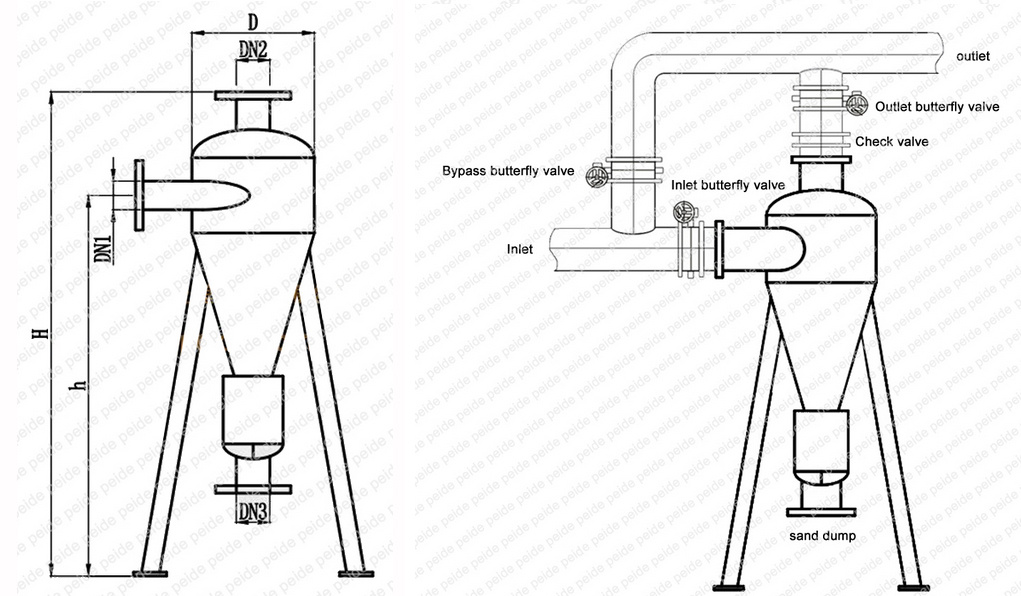

How to choose Model
Model | Inlet water | Inlet pressure | Desanding ratio | Dimension mm | Inlet DN1 | Outlet DN2 | Drain DN3 |
| T/H | MPa | % | D | H | h | mm | mm | mm |
XLQ-20S/D | 20 | >0.2 | >96 | 159 | 850 | 650 | 40 | 50 | 32 |
XLQ-30S/D | 30 | >0.2 | >96 | 219 | 960 | 650 | 40 | 50 | 32 |
XLQ-40S/D | 40 | >0.2 | >95 | 325 | 1150 | 1080 | 50 | 65 | 40 |
XLQ-60S/D | 60 | >0.25 | >95 | 325 | 1150 | 1080 | 65 | 80 | 40 |
XLQ-70S/D | 70 | >0.25 | >92 | 426 | 1580 | 1300 | 80 | 100 | 50 |
XLQ-80S/D | 80 | >0.25 | >92 | 426 | 1580 | 1300 | 80 | 100 | 50 |
XLQ-100S/D | 100 | >0.3 | >90 | 426 | 1760 | 1350 | 100 | 125 | 50 |
XLQ-150S/D | 150 | >0.3 | >90 | 530 | 1760 | 1350 | 100 | 125 | 50 |
XLQ-185S/D | 185 | >0.3 | >90 | 530 | 2000 | 1550 | 125 | 150 | 65 |
XLQ-200S/D | 200 | >0.3 | >90 | 650 | 2334 | 1800 | 150 | 200 | 65 |
Installation Precautions
1. Hydrocyclone sand separator should be installed in the main pipe of water supply network and fixed on the base, we need to add a bypass between the inlet and outlet.
2. In order to ensure smooth water flow in front of the device should be installed intake and intake period equal diameter of straight pipe length equivalent to 10 to 15 times the diameter of the intake.
3. The equipment should be installed around the reserve has enough space for maintenance.
4.During normal operation, the need to open the inlet and outlet valves, close the drain valve and bypass valve.
5.depending on how much sand content of regular source of water decontamination platoon sand, open the drain valve at the sewage, water can flow out until the sewage process does not affect the normal use of water.
6.After sewage, close the drain valve.
7. If lack of sand discharge pressure, close the valve at the outlet.
Certificates

Welcome To Inquire,We Will Offer You The Best Items !
Started from 2004, Peide has been concentrating on research and production for water treatment equipment, our founder Mr. Wu has been supplying team work for over 7000 project, and draw lessons from A large number of engineering practice and accumulated rich experience in design and installation. Considering from better cost-efficiency, safety, credibility, we supplied our solutions to our customers, such as Cocacola China, Pepsi China, Siemens, Gates Hydraulic, HSBC, Shanghai Expo Venue, Danone, Kerry food, Kafu, Hair, Lenovo, GE, Benz, Toyota, Hyundai Motor etc.,
For decades, we have been water treatment equipment for food, beverage, pharmacy, hospital, precision electronics, chemical, electric power, surface cleaning, air-conditioner industries. Our customer is mainly in the USA, Japan, South Korea, France, Norway, England, India, Chile, Mexico and other 70 countries.
Mainly Products: UV water sterilizer & disinfection equipment, Water Filter equipment including Bag type filter, Sucking automatic type filter, Automatic brush type filter, Sand filter equipment, Electric scale equipment, Recycling water treatment equipment, Ion stick etc., .
Certificate: ISO: 9001: 2008, CE, China Famous Brand
Sales: 20M RMB/year
Peide is always looking for new ways to increase the value of the products and services we offer to our customers. Our goal is to creat class quality, class service, class management and class environment. Try to make our sky bluer, our ground greener our water cleaner.
