| Prod Model: |
HY-H10GTS |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Western Europe |
| Energy Source: |
Wind Solar |
| System Capacity: |
1kw ~ 4kw |
| Daily System Working Hours: |
24 Hours |
| Certificates: |
CE, RoHS, ISO |
| System: |
Utility Grid Connect system |
Product Description

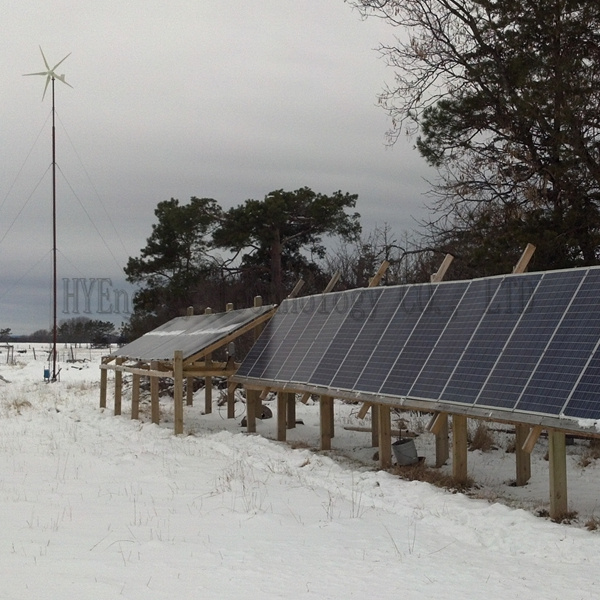

Hybrid Wind power Solar energy system on grid home use
Wind solar hybrid grid-tie system is an innovative system, which combines wind power and solar power into one grid-tie inverter with two separate but portion variable routes to control the input of both wind and solar power, such design would allow end users to adjust the capacity portion of solar and wind power according to installation site solar radiation and wind speed to reach a maximized efficiency.
HYGCI-H series wind solar hybrid grid-tie inverter is the core parts of the whole system; The inverter not only has excellent MPPT performance to obtain power from solar panels but also has a specially developed control unit according to HY series wind turbine special features with an optimized power curve pre-written into inverter and smart over-voltage braking for high wind protection, which offers a reliable combination of high efficiency, easyinstallation, high wind protection and grid-failure protection.
Special Features Integrated
Solar & wind controller inverter controls all in one machine
System efficiency Over 97%
Ultra wide input voltage range
Precise MPPT algorithm
Controlled PWM inverter technology
Compact and light design for one-person installation
IP65, visually pleasing for domestic environment
RS485, Wi-Fi, GPRS interface
Suitable for household distributed installation
Benefit of Wind solar hybrid grid-tie system
Generating power around-the-clock harvesting power from both wind and solar 24 hours regardless of night, heavy cloudy and rainy days, while ordinary solar grid-tie system could only go to "sleeping mode" at nigh, heavy cloudy and rainy days.
More cost-effective solution instead of install two separate systems for both wind and solar grid-tie system, HYGCI-H series inverter integrated wind & solar controller and wind over-voltage braking into one device, which means one installation for you to go hybrid.
Easy Installation System compact and light design with wind turbine and solar panel input sockets integrated at front panel, PLUG & PLAY for one-person installation.
Constant output all year round with a proper portion of wind and solar installed as hybrid grid-tie system, wind turbine and solar panel could balance the seasonal power production difference and provides a fairly constant output all year round.
System Solution Detail
|
Items |
HY-H10GTS |
HY-H20GTS |
HY-H30GTS |
HY-H40GTS |
|
Wind Turbine |
HY-600L |
HY-1000L |
HY-1500L |
HY-3000L |
|
Solar Panel |
0.8KWW |
1.6KW |
2KW |
1KW |
|
Grid-tied Inverter |
HYGCI-H-10GL |
HYGCI-H-20GL |
HYGCI-H-30GL |
HYGCI-H-13GL |
|
Total Capacity |
1.4KW |
2.6KW |
3.5KW |
4KW |
|
|
|
|
|
|
|
Recommended Household Electric Appliances |
|
Name |
Specification |
Marked power(W) |
Working hours/day |
Daily power consumption ( Kwh ) |
|
Lighting(illumination) |
30W× 40 |
1200 |
10hours |
12 |
|
Satellite reception |
|
30 |
6hours |
0.18 |
|
Drinking water machine |
26L |
450 |
16hours |
7.2 |
|
Refrigerator |
|
120 |
24hours |
2.88 |
|
Electric Fan |
20W× 30 |
600 |
3hours |
1.8 |
|
Radio |
5Wx30 |
150 |
10hours |
1.5 |
|
Other electric with small power |
|
80 |
10hours |
0.88 |
|
Total consumption power |
26.44 |
Guangzhou HY Energy Technology Limited Corp. Is a high-tech enterprise engaged in designing, manufacturing, marketing on highly reliable small wind turbines and serving in wind-solar hybrid power system integration technique.
Guangzhou HY Energy Technology Limited Corp. Has made tremendous contributions to improve national wind generator manufacturing level under the breakthrough technique on wind turbine design conception and production craft since 2001, meanwhile, our breakthrough technique on wind-solar hybrid power system has also LED a large scale application in real circumstance.
HY Energy was appointed to be the drafter of off grid wind solar generating safety requirement standard No. (20074719-T-604) based on the advance technology inaugurator of perfect matching design on wind blade and generator and the perfect matching on wind energy and solar energy.
Guangzhou HY Energy Technology Limited Corp. Is the sole enterprise passing design and manufacture of high reliable small wind turbine project and accepted by The Ministry of Science and Technology of the People' S Republic of China.
HY Energy' S wind turbine series has successfully been selected into WWEA 2010 and WWEA 2011 global high quality small or medium generator catalogue.
