| Prod Model: |
ET-NL5KL-W |
| Markets: |
North America,South America,Eastern Europe,Africa,Mid East,Western Europe |
| Name: |
5kw Wind Power Generator |
| Rated Power: |
5000W |
| Maximum Power: |
7500W |
| Start Wind Speed: |
3.0 M/S |
| Safety Wind Speed: |
40 M/S |
| Blade Number: |
3 |
| Controller: |
DC240V/AC220V |
| Blade Material: |
Reinforced Glass Steel |
| Design Service Life (Years): |
15~20 |
| Weight: |
310kg + Wooden Case |
| Rotating Shaft: |
Horizontal |
| Number Of Blade: |
Multiple-Blade |
| Stress Way Of Blade: |
Lift Force |
Product Description

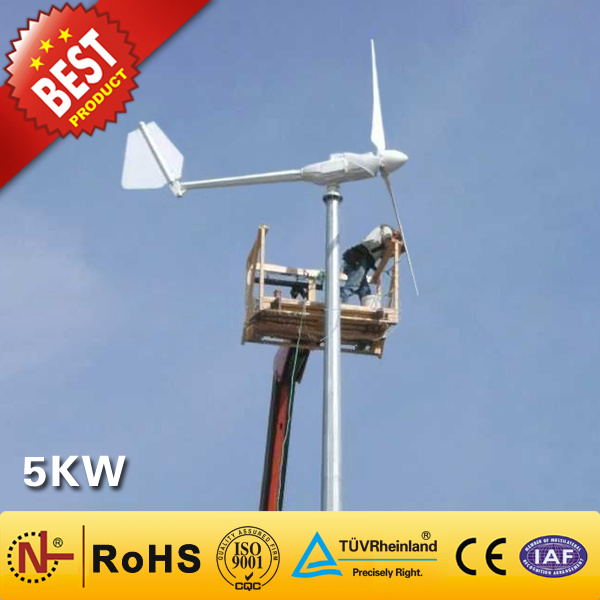

Wind Turbine / Wind Power Generator (5000W)
1. Dual, automatic emergency braking system.
2. Unique Anti-Vibration design.
3. Waterproofing.
4. Unique Anti-Vibration design.
5. Efficient Aero-dynamic design, Compared with the vertical shaft, power utilization rate is greatly improved.
6. High strength, corrosion resisting aluminium alloy.
7. Unique permanent magnetic material generator, Small size, light weight, power output is very high.
8. Low noise level.
For more information, Please contact the sales engineer.
We will reply immediately.
|
Rated power |
5KW |
blade material |
Reinforced Glass Steel |
|
Wind rotor diameter(m) |
5 |
Woking voltage(v) |
DC240V/AC220V |
|
Blade quantity |
3 |
Generator style |
PM,three phase,AC |
|
Start-up wind speed(m/s) |
3 |
Speed regulation method |
Electromagnetic brade+yawing |
|
Working wind speed(m/s) |
3.0-25 |
Stop method |
Electromagnetic brade+manual |
|
Survived wind speed(m/s) |
40 |
Wind turbine main bodyweigt(kg) |
310 |
|
Start torque(n/m) |
4.5 |
Zipper under the weight(kg) |
265kg/9m |
|
Rated wind speed(m/s) |
10 |
Independent under the weight(kg) |
1000kg/10m |
|
Max power(w) |
7.5KW |
Conteoller model |
240V100A |
|
Rated rotate speed(rpm) |
260 |
Battery specifications |
12V150AH x 20 |
