| Prod Model: |
ZH |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White or Design by Clients |
| Noise: |
Noiseless |
| Lifetime: |
15 Years |
| Maintenance: |
Free |
| Adaptation: |
Well Adapted |
| Logo: |
OEM |
| Rotating Shaft: |
Horizontal |
| Number Of Blade: |
Three Blade |
| Stress Way Of Blade: |
Lift Force |
Product Description

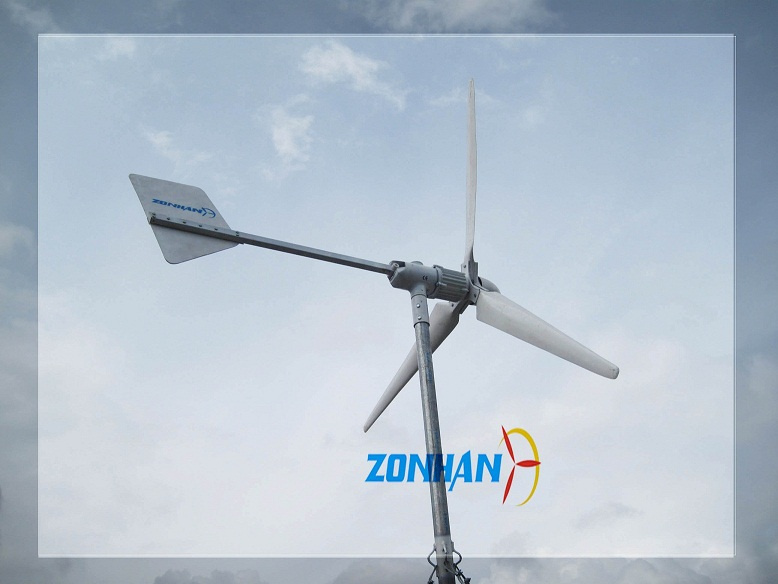

Zonhan Micro 2kw Wind Turbine (CE Approved)
1. Application
A wind turbine, which is installed on top of a tall tower, collects kinetic energy from the wind and converts it to electricity that is compatible with a home's electrical system.
In a normal residential application, a home is served simultaneously by the wind turbine and a local utility. If the wind speeds are below cut-in speed (7-10 mph) there will be no output from the turbine and all of the needed power is purchased from the utility. As wind speeds increase, turbine output increases and the amount of power purchased from the utility is proportionately decreased. When the turbine produces more power than the house needs, the extra electricity is sold to the utility. All of this is done automatically. There are no batteries in a modern residential wind system.
Small wind systems for remote applications operate somewhat differently, and it needs batteries.
2. Structure and Main performance
Zonhan turbines are made of strong cast steel that makes them durable. Zonhan turbines can withstand harsh environments like strong winds and cold weather. Using high performance NdFeB permanent magnet, the alternator is high efficient and compact. The unique electro-magnet design makes the bonding force and cut-in speed very low.
|
Rotor Diameter (m) |
3.8 |
|
Material and number of the blades |
Reinforced fiber glass*3 |
|
Rated power/maximum power |
2000/2800w |
|
Rated wind speed (m/s) |
10 |
|
Startup wind speed (m/s) |
2.5 |
|
Working wind speed (m/s) |
3~35 |
|
Survived wind speed(m/s) |
50 |
|
Rated rotate speed(r/min) |
400 |
|
Working voltage |
DC24V/48V/120V/240V/300V |
|
Generator style |
Three phase, permanent magnet |
|
Charging method |
Constant voltage current saving |
|
Speed regulation method |
Yaw+ Auto brake |
|
Weight |
70kg |
|
Tower height (m) |
9 |
|
Suggested battery capacity |
12V/200AH Deep cycle battery 8pcs |
|
Life time |
15years |
Yueqing Zonhan Windpower Co., Ltd.Was founded in China with the purpose of supplying people with the knowledge and tools necessary to generate ecologically friendly electricity through the use of wind turbines.
Recognizing the needs of the small wind market, Zonhan has directed its creative expertise to developing wind generators for homeowners, farmers, manufacturers and business proprietors who are looking for a cost-effective and environmentally friendly energy source.
Zonhan develops and manufactures revolutionary small wind energy systems, offering the cost-efficient and easily customized wind power solutions for grid and off-grid applications worldwide.
Our cutting edge technology and in-house expertise allows us to offer the most reliable and cost-saving wind power turbines to fulfill consumer, business and industrial needs, at the highest performance available today.
