| Prod Model: |
EI1000S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated AC Output: |
0.9kw |
| Max AC Output: |
1.0kw |
| Rated AC Voltage: |
230/120/240V |
Product Description

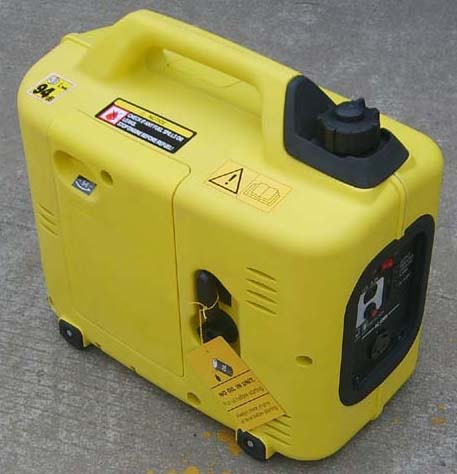

1.0KW portable inverter generator, with CE, GS, EPA certificate, pure sine wave.
|
Generator |
MODEL |
EI1000S |
|
Type |
Brush single-phase |
|
Voltage Regulate |
AVR |
|
Frequency |
50/60Hz |
|
Rated Ac Output |
0.9KW |
|
Max Ac Output |
1.0KW |
|
Rated Ac Voltage |
230/120/240V |
|
Power Factor |
COSΦ =1.0 |
|
Gasoline Engine |
Model |
HG144 |
|
Type Engine |
single cylinder, 4-stroke, OHV gasoline engine |
|
Bore× Stroke |
43.5*36mm |
|
Air cleaner |
Semi-dry double silent type |
|
Cooled way |
Air-cooled |
|
Displacement |
53.5ml |
|
Compression ratio |
8.5: 1 |
|
Ignition system |
T. C. I |
|
Spark plug gap |
A7RTC/UR5 |
|
lubricating oil |
SF or Higher Grade |
|
lubricating oil capacity |
0.4L |
|
Lubrication system |
Pressure Splash |
|
Fuel consumption |
420 |
|
Power output |
1.3/5500KW(r/min) |
|
Generator-Set |
Fuel |
Automotive unleaded gasoline |
|
Starting system |
Recoil starter |
|
Noise level |
54-59 dB(A)/7m |
|
Oil alarm |
No lube oil Auto stop safekeeping |
|
Fuel capacity |
2.5L |
|
Front panel control system |
Two AC Socket |
|
Dc-Output |
DC12V/8.3A |
|
Dimension L× W× H |
480× 260× 390mm |
|
Gross/ Net weight |
17/15kg |
|
Unit(20FT) |
480 units |
Established in July 2007, located in Weiyang district of Yangzhou, a city subordinate to Jiangsu province, Yangzhou Hengdong Mechanical & Electrical Co., Ltd is conveniently suited near freeway with ascendant investment environment. It arranges a settlement of 50 employees, among which there are 30 boasting academic certificate at or above the junior college level or obtaining junior superior title. Most of 8 technicians have served as Chief Engineer or Assistant Chief Engineer in the well-known generator manufacturing enterprises.
The company owns international advanced product research and development center, assembly line, machine performance test line, and generator component test table, which are all provided with computer-control system. Its leading product, HD power brand generators, can be widely applied in the home power solution, cars industry, army connection system, network system and telecom area.
Until now, with the certification of ISO9001, EPA, CARB and CE, the company has provided its products to a lot of different market which includes North & South America, Europe, Africa, Middle-east and Chinese local market.
Hengdong is not only an OEM factory, but also the strong backing of its client who researches and develops new suitable products every year for the ever-changing world wide market. We will be always keep going on improving the product value and creating long time partnership with all our world wide strategic partners.
