| Prod Model: |
EI4000S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated AC Output: |
3.0kw |
| Max AC Output: |
3.3kw |
| Rated DC Voltage: |
110V or 220V or 240V |
Product Description

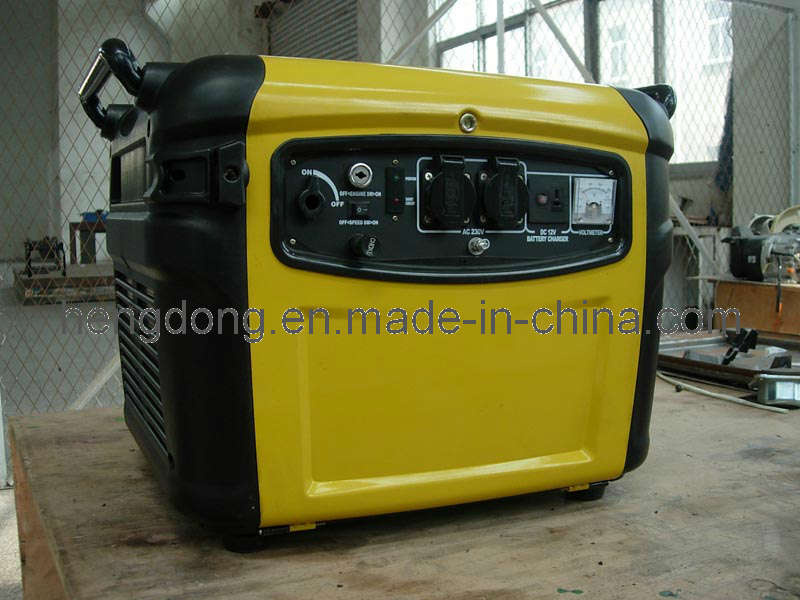

3.3KW Portable inverter generator, with CE, GS, EPA certificate.
One-AC Output Socket, AC Output Pilot lamp. Over loading protect& Malfunction Pilot lamp
OHV Forced Air-cooled, 4-Stroke//OHV
|
Digital-Generator |
MODEL |
Ei4000S |
|
Type |
Single permanent magnet, brushless, bearing-less |
|
Voltage Regulate |
Automatism electronic regulate |
|
Rated AC Output |
3.0KW |
|
Max AC Output |
3.3KW |
|
Ripple quotiety |
3-4% |
|
Frequency |
50HZ or 60HZ |
|
Rated Dc Voltage |
110V or 220V or 240V |
|
Digital-Generator-Set |
Fuel capacity |
11L |
|
continuous operating hour |
7 hours |
|
Noise level |
50-59--dB(A) 7m |
|
Dimension |
630*485*470mm (without packing) |
|
Weight Net/Gross |
49kg/53kg |
|
Starting system |
Recoil and hand-operated |
|
Fuel |
Unleaded gasoline |
|
Front panel control system |
One-AC Output Socket, AC Output Pilot lamp. Over loading protect& Malfunction Pilot lamp |
|
Dc Output |
12V/8.3A customer optional |
|
Engine |
Engine model |
SG170FA |
|
Engine type |
OHV Forced Air-cooled, 4-Stroke//OHV |
|
Bore× Stroke |
70× 56mm |
|
Air cleaner |
Semi-dry double silent type |
|
Displacement |
208ml |
|
Compression ratio |
8.2: 1 |
|
Ignition system |
Non-contact transistorized ignition(T. C. I) |
|
Spark plug gap |
0.7mm |
|
lubricating oil |
SF or Higher Grade |
|
lubricating oil capacity |
0.6L |
|
Lubrication system |
Pressure Splash |
|
Fuel consumption |
374(g/HP-hour) |
|
Power output |
7.0/3600(HP/ rpm) |
