| Prod Model: |
1104C-44TAG2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine: |
Perkins |
| Alternator: |
Kaijie, Marathonm, Stamford, Leroy Somer |
| Frequency: |
50Hz, 60Hz for Option |
| Rated Voltage: |
400/230V, Various Voltage Available |
| Automatic Controller: |
Smartgen, Deepsea, Comap |
| Optional: |
Silent / Waterproof Canopy, ATS, Parallel System |
| Quality Standard: |
ISO9001.CE.Soncap.Saso |
| Production Leading Time: |
15 to 20 Working Days |
| Warranty Period: |
1 Year or 1000 Hours Running |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Product Description

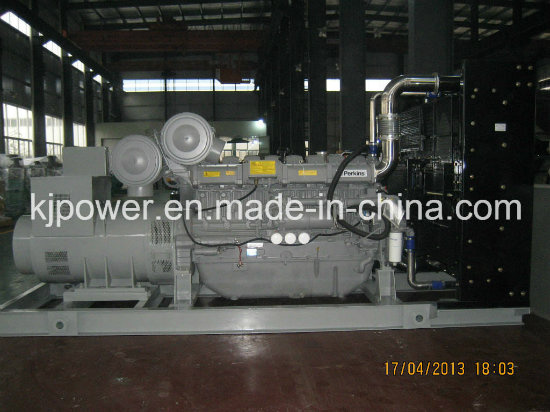

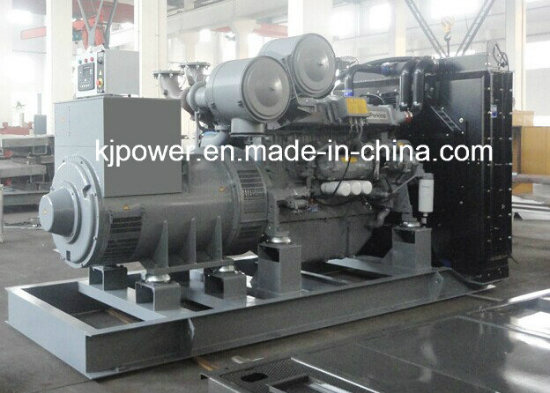

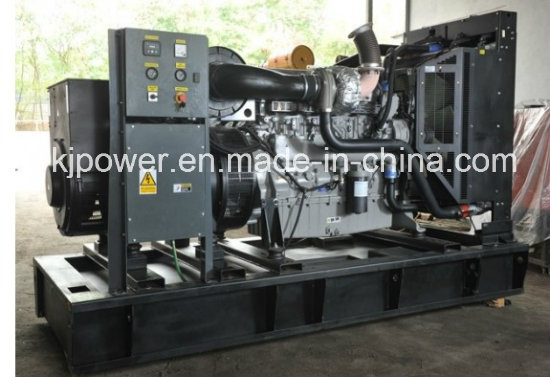

50Hz Perkins generator (1104C-44TAG2)
Engine: 1104C-44TAG2
1) Top brand Perkins Engine
2) Global warranty
3) ATS, AMF, Synchronization Optional
4) ISO approved supplier
5) Competitive Price with High Quality
6) Coupled to Stanford/Leroy Somer/Kaijie alternator
Supply Kaijie diesel generator set:
1. Various Voltage available but coupled alternator model may be changed. For detailed inquiry, pls contact Kaijie sales.
2. Leroy Somer Brushless Alternator, Single Bearing, Flange Connection, IP23, Insulation Class H, AVR Fitted. (Stamford, Engga, Kaijie and Marathon for Option)
3. With 8 Working Hours Base Fuel Tank(for the both of open & silent genset ≤ 650kVA prime, only Base Frame for other models), AVM Suspension System, Set-mounted Exhaust System, Battery, Battery Charger and Lead supplied
4. With Chint Breaker
5. Complete Operation/Maintenance Manuals for Genset/Engine/Alternator, Genset testing report
6. Warranty: One year or 1000 Working Hours from the shipment date, whichever comes first.
DIESEL
GENERATOR
SET | Diesel GenSet Model | KJ-P110 |
| Prime power (KW/KVA) | 80/100 |
| Standby power (KW/KVA) | 88/110 |
| Rated voltage(V) | 230/400 |
| Rated current (A) | 144 |
| Frequency(Hz) | 50 |
| Rated Rotary Speed (RPM) | 1500 |
| Power factor | 0.8 |
| Power supply mode | 3 phase,4wire |
| Starting method | 24 V DC |
ENGINE | Diesel Engine | Perkins |
| Model | 1104C-44TAG2 |
| Engine prime power (KW/KVA) | 93.6/117 |
| Engine standby power(KW/KVA) | 105/131.25 |
| Cylinder Qty. | 4 |
| Fuel consumption.(L/ h) | 205 |
| Bore(mm) *Stroke (mm) | 105*127 |
| Compression rate | 18.23:1 |
| Cooling liquid volume (L) | 13.6 |
| Displacement(L) | 4.4 |
| Lubricant capacity (L) | 8 |
| Cooling method | Water cooled |
| Intake method | Turbocharged.Inter-cooled |
ALTERNATOR | Alternator Features:
1. Kaijie,ENGGA,Stamford, Leroy Somer, Marathon
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate: ≤±1%
6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts
7. Wide range of flange adapters and single bearing disc coupling
8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528
9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof |
Anhui Kaijie PowerTechnology Co., Ltd. is a professional manufacturer, specializing in production, design, sales, installation, maintenance and service of generator sets with CUMMINS, PERKINS, DEUTZ, Volvo, MTU, DOOSAN, Quanchai, Shangcai, Weichai, Yuchai, etc. Series world famous diesel engine and STAMFORD, LEROY SOMER, MARATHON, KAIJIE series AC alternators. Kaijie series generator set power range is from 10kVA-2500kVA. We believe that it is our assurance of quality and exceptional communication skills in generation set field as well as our competitive prices and professional service that will always mean your best choice. Comply strictly with ISO9001: 2008 Quality System, We always maintain the high quality of transmission and the standard of reliability, safety, durability as well as economy and environment-friendliness. And has formed a completed pre-sale, sale and after-sale service system. Win customers with quality; Stand in the market with credit; Redound upon society with value; Call on innovation and humanism, try our best to serve customers base on novel design and integrated service! Customers' satisfication, our traget!
