Prod Model: |
SX/SXN |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Maximum Current: |
40A |
Protection Class: |
IP44 |
Tech: |
Lighting and Time Control |
Voltage: |
12V/24V |
Application: |
Lighting Controller |
Certificate: |
CE,RoHS |
Warranty: |
3 Years |
System: |
Utility Grid Connect system |
Product Description

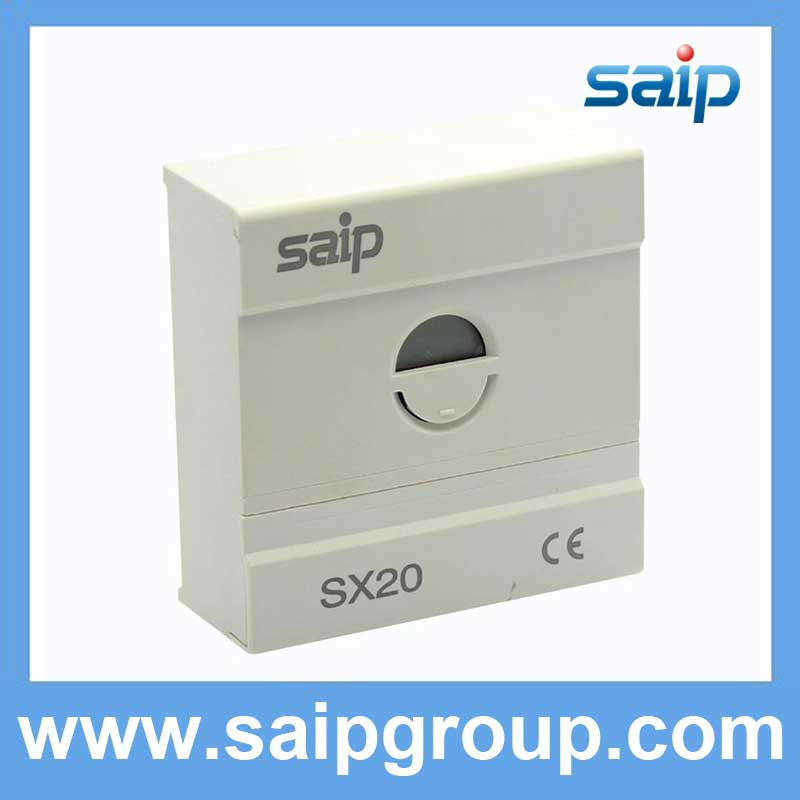

10A solar regulators with NightLight function (SX/SXN)
Specifications
Solar battery controler
1.12/24V auto distinguish
2. Solar Street Light controller
3. CE & RoSH certificated
Newest solar street light solar battery controler, solar regulators with NightLight function 10A, 20A, 40A
Features
SX/SXN Series is a Sophisticated Solar Charge Controller Which Offers Exceptional Features at an Extremely Competitive Price;
----Data Logging
The SX/SXN charge controller stores system data for one year;
----High Reliability Design
Superior design ensures high degree of reliablity through PCB conformal coating and
Anti-corrosive screws and terminals. Full electronic protection againsst short circuits,
Overload, overcurrent, reverse flow, wrong polarity and over-temperature;
----Multifunctional LCD Display
The SOC bar indicates the exact state of charge(available energy)as a percentage through
The battery gauge symbol. Load status and nightlight function are displayed symbolically;
-----Negative Grounding(SXN);
-----Positive Grounding (SX);
-----Various Optional System Accessories;
-----Overcharge Protection;
-----Overdischarge Protection Selectable LCD Modes.
TYPE |
SX/SXN10 |
SX/SXN20 |
SX/SXN40 |
Nominal voltage |
12/24V automatic recognition |
Max. solar panel curren |
10A |
20A |
40A |
Max. load panel current |
10A |
20A |
40A |
Overcharge Protection |
Constant voltage PWM series regulation:boost charge, float charge and optional equalizeation charge. |
Selectable LVD Modes |
Adaptive control (fuzzy logic) of battery voltage and power control |
Amblent Temperature Range |
-25°C to +50°C |
Max.wrie size |
16mm 2 (AWG) |
Self Consumption |
4mA |
Weight |
166/170g |
166/170g |
176/180g |
