The engine features: 1. The rated speed: 1500rpm, four-strokes, water-cooling system, up to the ISO3046 standard. 2. The rated output: From 10kw to 500kw 3. The Weichai engine model: 495D, R4105D, R4105ZD, R6105ZD, R6105ZLD, R6105AZLD, R6105IZLD, 6113ZLD. 4. The charactor of the engine: (1)High efficiency, low exhaust, good start addiciency. (2)24V DC start motor. (3)Engine driven alternator. (4)High pressure oil pump. (5)Turbine charge. (6)Three filter. (7)SAE flywheel shell.
The alternator features: The world famous --first class alternator, up to the GB755, BS5000, VDE0530, IEC34_1, AS2359 standard, brush Less and self-exitation, it can supply excitation in many cases: 1. STAMFORD/MARATHON/LEROY SOMER, and etc 2. Standard pitch winding can be inhibit currents interruption. 3. Insulation class: Hprotaction alass. 4. Frequency at stable state: <1.0%. 5. Telephones interference: THF<2%, TIF<50.

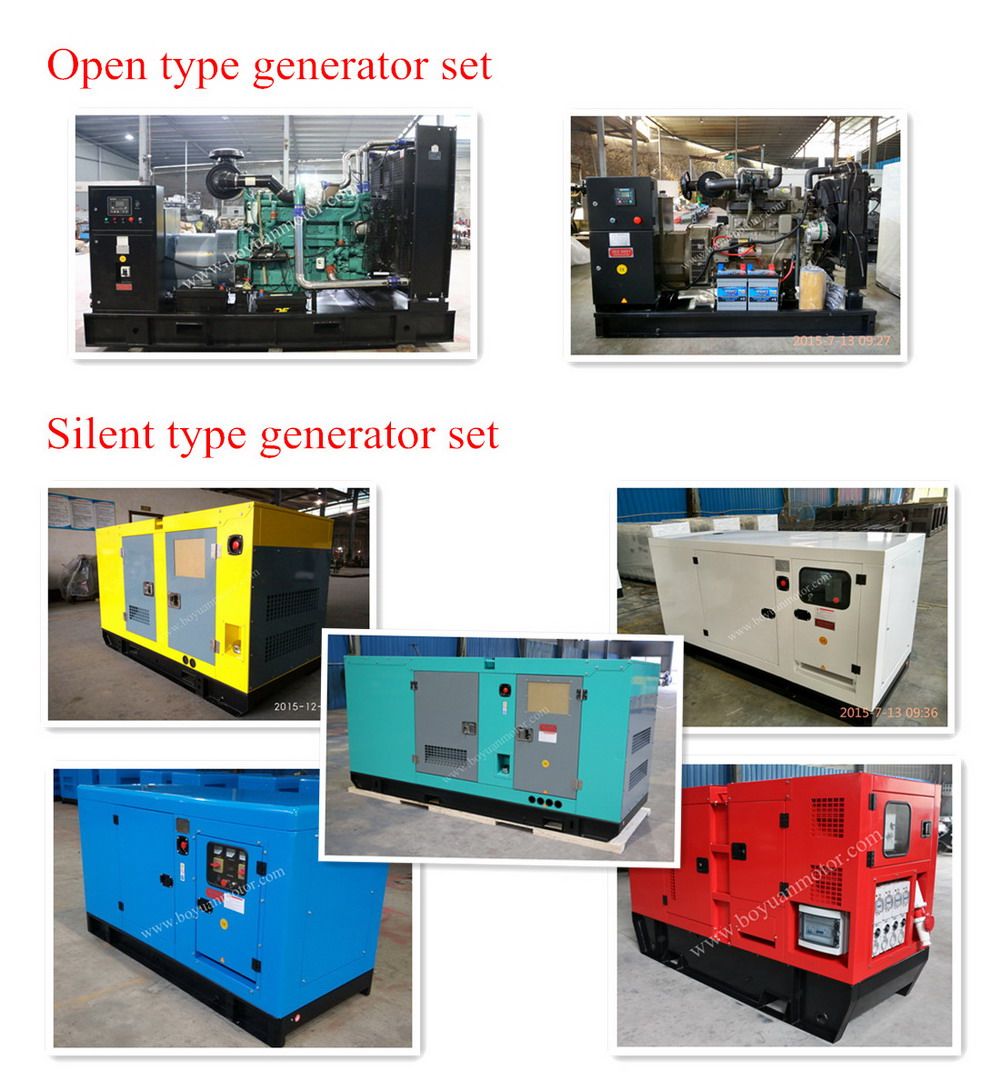

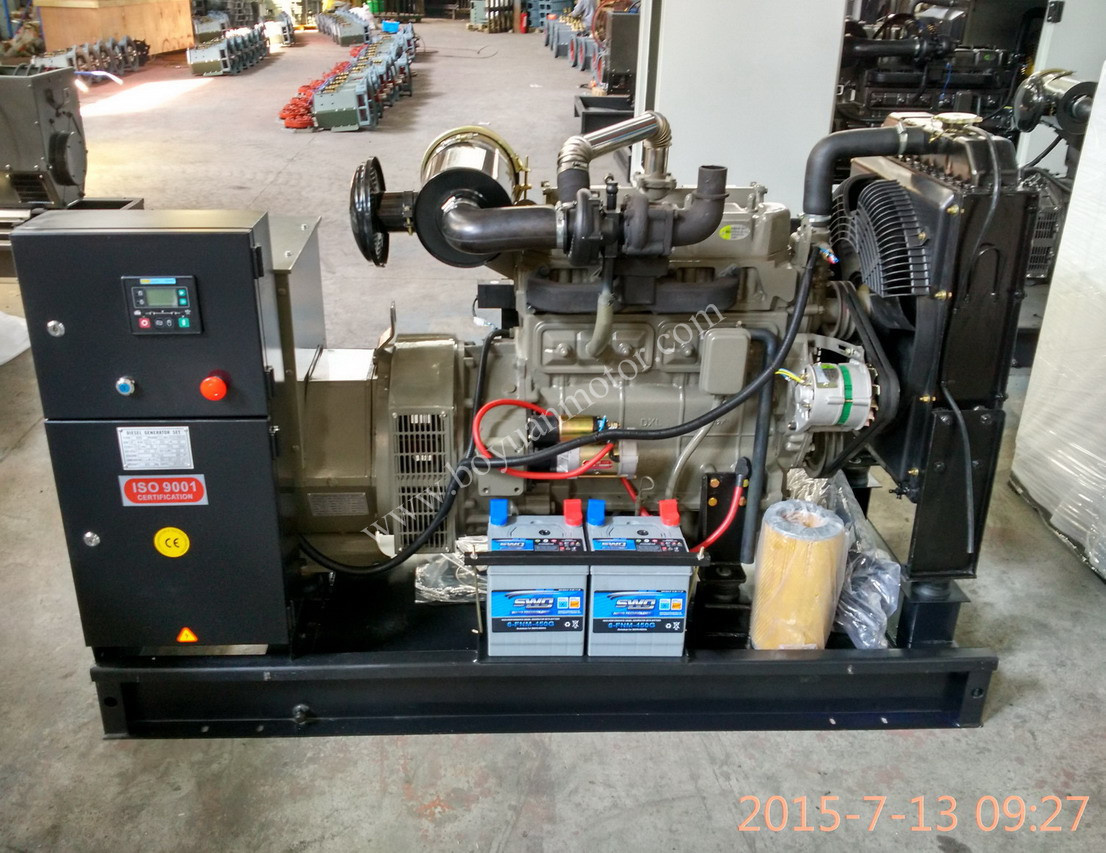

The Specification of Weichai DG genset: 1. The basic specifications: 230V/400V, 50Hz/60Hz, 0.8pf, three phase four wires. 2. Charactor: Base fuel tank for 8 hours(canbe design from 8hours to 24 hours). 3. Use: Can be used for the open type and the soundproof type, automatic type, trailer type and etc. 4. Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any Situation asthe start defeat. The water over temperature, the oil pulls down, over speed, over Load and over current.
Control panel display: (1)Unit voltage, three phase load current and frequency display. (2)Wator temperature, oil pressure display. (3)Fuel level, fuel temperature display. (4)Audible and visual alarm lamps and buzzers.
Supply standard collocation: (1)Diesel engine with all accessories, 3 filter, electrical systems. (2)Alternator. (3)Steel structure. (4)Fan and water cooling system. (5)Flange connector. (6)12V/24vstarting motor and charge engine. (7)Air cleaner, fuel cleaner, oil cleaner. (8)On-board control panel. (9)MCCB air conservation switch. (10)12V/24V starting accumulator and battery line. (11)Set shock absorber.
Optional accessories: Engine collant and oil heater, alternator space heater, cooling for heating exchange, communictaion interface, battery charger by main supply, ATS and paralleling system, silent canopy and moving trialer
Commercial Conditions 1. Port of loading: Fuzhou port 2. Port of destination: To be informed 3. Delivery time: 15-40 days after down payment 4. Payment terms: T/T 100% down payment or 30% deposit, 70% before delivery out of factory 5. Insurance: 110% of total amount 6. Failure Remedy: Free spare parts due to failures cause by the quality 7. Warranty
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
Gensets Model
Rated output (KW)
Rate Current (A)
Engine Model
Power (KW)
Fuel Consumption (g/kw.h)
Starting Method
Generator Model
Dimension(mm)
GF2-R10KW
10
18.1
2100D
13.5
≤257
12V D.C ELECTRIC START
TFW-10KW
1380*640*1000
GF2-R12KW
12
21.6
2100D
13.5
TFW-12KW
1380*640*1000
GF2-R15KW
15
27
K4100D
18
TFW-15KW
1640*640*980
GF2-R20KW
20
36
K4100D
26.5
TFW-20KW
1780*750*1000
GF2-R24KW
24
43.3
K4100D
30.1
TFW-24KW
1780*750*1000
GF2-R30KW
30
54.1
K4100D
30.1
TFW-30KW
1820*750*1900
GF2-R40KW
40
72.1
K4100ZD
47
TFW-40KW
2200*710*1900
GF2-R50KW
50
90.2
R4105ZD
56
≤238
24V D.C ELECTRIC START
TFW-50KW
2280*820*1350
GF2-R64KW
64
115.4
R6105ZD
84
TFW-64KW
2400*850*1400
GF2-R75KW
75
135.3
R6105ZD
84
TFW-75KW
2400*850*1400
GF2-R100KW
100
180.3
R6105ZALD
110
TFW-100KW
2500*900*1370
GF2-R120KW
120
216.5
R6105IZLD
132
TFW-120KW
2500*900*1370
GF2-R150KW
150
270.6
HX6113ZLD
155
≤238
TFW-150KW
2800*960*1650
GF2-R200KW
200
360
6126ZLD
220
TFW-200KW
3000*1000*1500
GF2-R250KW
250
450
6126ZLD1
265
TFW-250KW
3200*1000*1500
GF2-R300KW
300
540
6126ZLD2
330
TFW-300KW
3200*1000*1500
Fuan BoYuan Power Machinery Co., Ltd ( abbreviation: BY Power), Located in Fu'an City, Fujian Province, which is famous manufacturing industrial zone in Southeast China.
BY Power is specialized in manufacturing Diesel Generating Set, brushless alternator, AC synchronous alternator, and supplying various power products, like engine parts, controllers, ATS etc.
BY Power manufactures OEM generator powered by Cummins, Deutz, Volvo, MTU, Doosan engines and Stamford, Leroy Somer, Mecc Alte alternators. BY Power Generator set ranges from 7KW to 1200KW, 50Hz or 60Hz frequency, with open type, silent type, trailer type and containerized type, etc. All products are manufactured in accordance with the ISO9001 production standard to assure them of best quality produced and accepted for export to the international market. The products are mainly exported to Middle East, Africa & Southeast Asia countries and regions.
All staffs of produce and inspection team works for the industry more than 10years. They are professional and passionate for their job.
As a brand new profession manufacturer, our advantage is professional work team, strict inspection controll system and good service.
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers' request
3. Polyester varnish for appearance protecting for shining and raining
4. Two hours testing before out factory
Warranty policy
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
