North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Alternator:
Leroy Somer, Stamford, Marathon
Engine:
Cummins
Quality Control:
ISO9001, ISO14000, CE, Soncap
Warranty:
1 Year or 1000 Hours
Controller:
Deepsea, Woodward, Deif, Comap
Stroke:
Four Stroke
Type:
Self-Starting Diesel Generator
Cooling Method:
Water Cooling
Installation Method:
Portable
Speed:
1500rpm, 1800rpm
Product Description

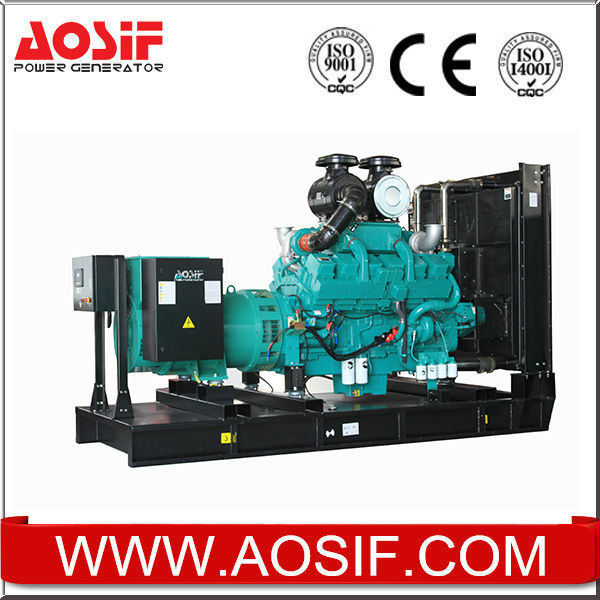

1250KVA/1000kw 12 Cylinder Cummins Engine dynamo generator price
8 hours base tank 50 degree radiator Low noise engine generator Type: Diesel generator Standard Supply Scope: Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame . Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables Documents included: manual book, product qualified card Optional supply scope: 1.ATS 2. Synchronization System 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump Similar products: Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
Manufacturer
Chongqing Cummins Engine Co. Ltd.
Model
KTAA38-G9A
Engine speed
1500rpm
Engine power
--------------------Prime power
1150kw /1564HP
--------------------Standby power
1195kw /1602HP
Type
4 cycle, 60° Vee; 12-cylinder
Aspiration
Turbocharged and air to air Aftercooled
Governor
electrical
Bore * Stroke
159*159 mm
Displacement
37.8 L
Compression ratio
13.0: 1
Idle speed
725 – 775 r/min
Brake mean effective pressure
6829kpa
Piston speed
7.9 m/s
Friction horsepower
86kw(115HP)
Manufacturer / Model
Leroy-somer Electro-technique (Fuzhou) Company Ltd.
Model
LSA50.2 M6
Output power
1000KW
AVR model
R448 V50
Number of phase
3
Power factor (Cos Phi)
0.8
Altitude
≤ 1000 m
Overspeed
2250RPM
Number of Pole
4
Exciter type
Shunt
Insulation class
H
Voltage regulation
± 0.5%
Sustained short circuit current
300% (3 IN): 10s
Total harmonics (TGH/THC)
< 4 %
Wave form: NEMA = TIF
< 50
Wave form: I. E. C. = THF
< 2%
Bearing
single
Coupling
Direct
FAQ(Frequently Asked Question):
1. What is your warranty period?
Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
2. Does your generator have global warranty?
Yes, most of our products like Cummins, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3. Can you accept OEM?
Yes, we can accept OEM.
4. What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
5. What is your delivery time?
Our normal delivery time is 2 to 5 weeks. But if your order is some special engine and alternator, then the delivery time is longer.
Contact details : Belinda Wu Manager of International Trade Dep. XIAMEN AOSIF ENGINEERING LTD Add: No.60 jinying Road, Jimei District, Xiamen, China Tel:(0086)592-2620130 Fax:(0086) 592-2620112 MP:(0086)13799741010 Web:www.aosif.com
We, Xiamen AOSIF Engineering Ltd is one of generator manufacturers founded in 2001, we dedicated ourselves to the production, R & D and maintenance of various diesel generator sets, electrical control systems, and related accessories like soundproof canopy, Trailer, ect.
We always submit ourselves to cooperate with international and domestic manufactures of diesel engine and have earned good recognition and reputation from our customers due to our quality orientation under ISO9001, ISO14001, CE, SGS, Soncap Certifications and OEM Partners of Cummins, Wandi, Jichai and Leroy-somer as well, which were certified one after another since 2003.
Nowadays we have our own registered trademark "AOSIF" to be well known of all customers worldwide who have always been in business on power, and our generator sets have been exported to more than 50 countries, which focus on Asian, European, African and American. Our mission is to advance our scientific management, to improve our quality level constantly and to maximum customers' profitability.
We have manufactured many kinds of products as below,
Engine brand: Cummins, Perkins, Deutz, Doosan, Volvo, Johndeere, Man, Mitsubishi, Lovol, and Chinese local brands etc...
Alternator brand: Leroy somer, Stamford, Marathon
Power range: 5kVA-5000kVA
Delivery time: 15 to 30 days.
Quality Warranty Period: 1 year or 1000hours whichever comes first
8 hours base tank
