Alternator:
Leroy Somer, Stamford, Marathon
Engine:
Cummins
Quality Control:
ISO9001, ISO14000, CE, Soncap
Warranty:
1 Year or 1000 Hours
Controller:
Deepsea, Woodward, Deif, Comap
Stroke:
Four Stroke
Type:
Self-Starting Diesel Generator
Cooling Method:
Water Cooling
Installation Method:
Portable
Output Type:
AC Three Phase
Speed:
1500rpm, 1800rpm
Product Description

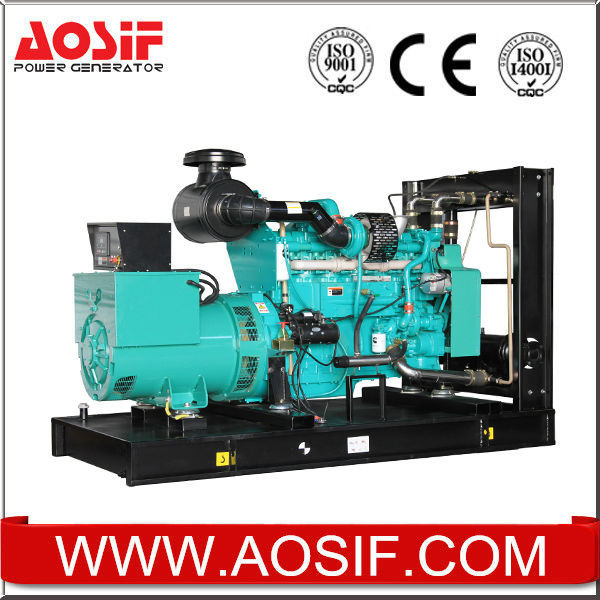

Cummins Genset, Water power diesel engine ,Gas Generator Cummins Diesel Generator Set 2 weeks delivery time 1 year or 1000hours warranty 8 hours base fuel tank 50 Degree Radiator Standard Supply Scope: Generator set included: Diesel Engine, Brushless Alternator, Radiator, self-starting control panel, circuit breaker panel, Vibration damping pads, Hi-strength base frame . Accessories Included: industrial type silencer, flexible bellow, Elbow and Flanges, Starting Battery & battery charger, Battery switch with cables Documents included: manual book, product qualified card Optional supply scope: 1.ATS 2. Synchronization System 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump 7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
Deutz diesel generator, Doosan generator set, Volvo diesel generator set, Chinese power generator, and soundproof generator, movable generator etc, power range from 9KVA to 2000KVA.
Manufacturer
Dongfeng Cummins Engine Company Ltd.
Model
6CTA8.3-G2
Engine speed
1500rpm
Engine power
--------------------Standby power
180kw / 241HP
--------------------Base output power
163kw / 219 HP
--------------------Continuous power
133kw /178HP
Air intake way
after-cooled, turbo-charged
Cylinder quantity
6
Bore * Stroke
114*135 mm
Displacement
8.3L
Fuel system
PB pump_ GAC governor/ BYC ASIMCO
Speed-droop
5%
Low idle
750-950 rpm
Piston speed
6.8 m/s
Friction energy output
17 kw
Max. air intake resistance
---------Dirty filter
635 mmH2O
---------Normal air cleaner and clean filter
254 mmH2O
---------Heavy duty cleaner and clean filter
381 mmH2O
Diameter of intake pipe recommended
125 mm
Air intake flow (base output _ standby power)
192 _ 206 L/sec
FAQ(Frequently Asked Question):
1. What is your warranty period?
Our payment terms is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
2. Does your generator have global warranty?
Yes, most of our products like Cummins, Doosan power generator enjoy the global warranty service. And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service, so you do not need to worry about the aftersales service.
3. Can you accept OEM?
Yes, we can accept OEM.
4. What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or L/C at sight, L/C deferred payment terms or west union.
5. What is your delivery time?
Our normal delivery time is 2 to 5 weeks. But if your order is some special engine and alternator, then the delivery time is longer. Contact details: Belinda Wu Manager of International Trade Dep. XIAMEN AOSIF ENGINEERING LTD Add: No.60 jinying Road, Jimei District, Xiamen, China Tel:(0086)592-2620130 Fax:(0086) 592-2620112 MP:(0086)13799741010 Web:www.aosif.com

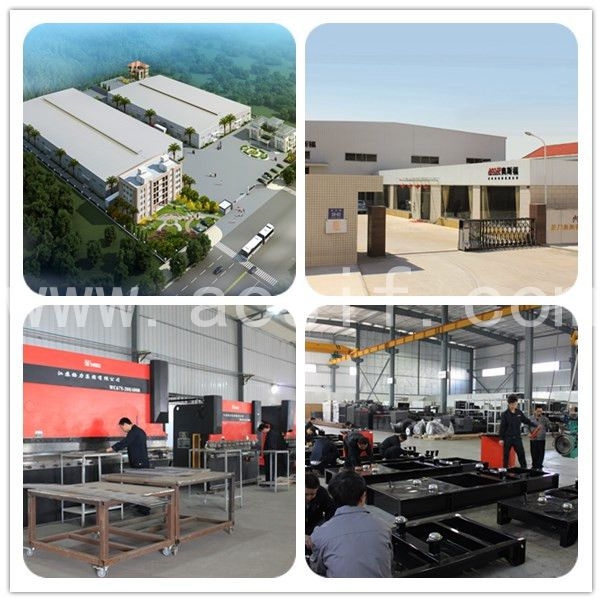

We, Xiamen AOSIF Engineering Ltd is one of generator manufacturers founded in 2001, we dedicated ourselves to the production, R & D and maintenance of various diesel generator sets, electrical control systems, and related accessories like soundproof canopy, Trailer, ect.
We always submit ourselves to cooperate with international and domestic manufactures of diesel engine and have earned good recognition and reputation from our customers due to our quality orientation under ISO9001, ISO14001, CE, SGS, Soncap Certifications and OEM Partners of Cummins, Wandi, Jichai and Leroy-somer as well, which were certified one after another since 2003.
Nowadays we have our own registered trademark "AOSIF" to be well known of all customers worldwide who have always been in business on power, and our generator sets have been exported to more than 50 countries, which focus on Asian, European, African and American. Our mission is to advance our scientific management, to improve our quality level constantly and to maximum customers' profitability.
We have manufactured many kinds of products as below,
Engine brand: Cummins, Perkins, Deutz, Doosan, Volvo, Johndeere, Man, Mitsubishi, Lovol, and Chinese local brands etc...
Alternator brand: Leroy somer, Stamford, Marathon
Power range: 5kVA-5000kVA
Delivery time: 15 to 30 days.
Quality Warranty Period: 1 year or 1000hours whichever comes first
