| Prod Model: |
A138 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Aosif 125kVA Generator Set for Sale |
| Rated Power: |
100kw/125kVA |
| Rated Voltage: |
400/230V |
| Control Panel: |
Deepsea |
| Rated Current: |
198AMP |
| Engine For 125kvagenerator Set: |
Powered by Cummins Engine |
| Governor For 125kVA Generator Set: |
Electrical Governor |
| Alternator For 125kvagenerator Set: |
Leroysomer, Stamford, Copy Stamford, etc |
| Circuit Breaker: |
Acb or MCCB |
| Warranty: |
1 Year or 1000 Running Hours |
| Type: |
Self-Starting Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
Product Description
If you need or interested, please contact me right now
Ms. Wendy

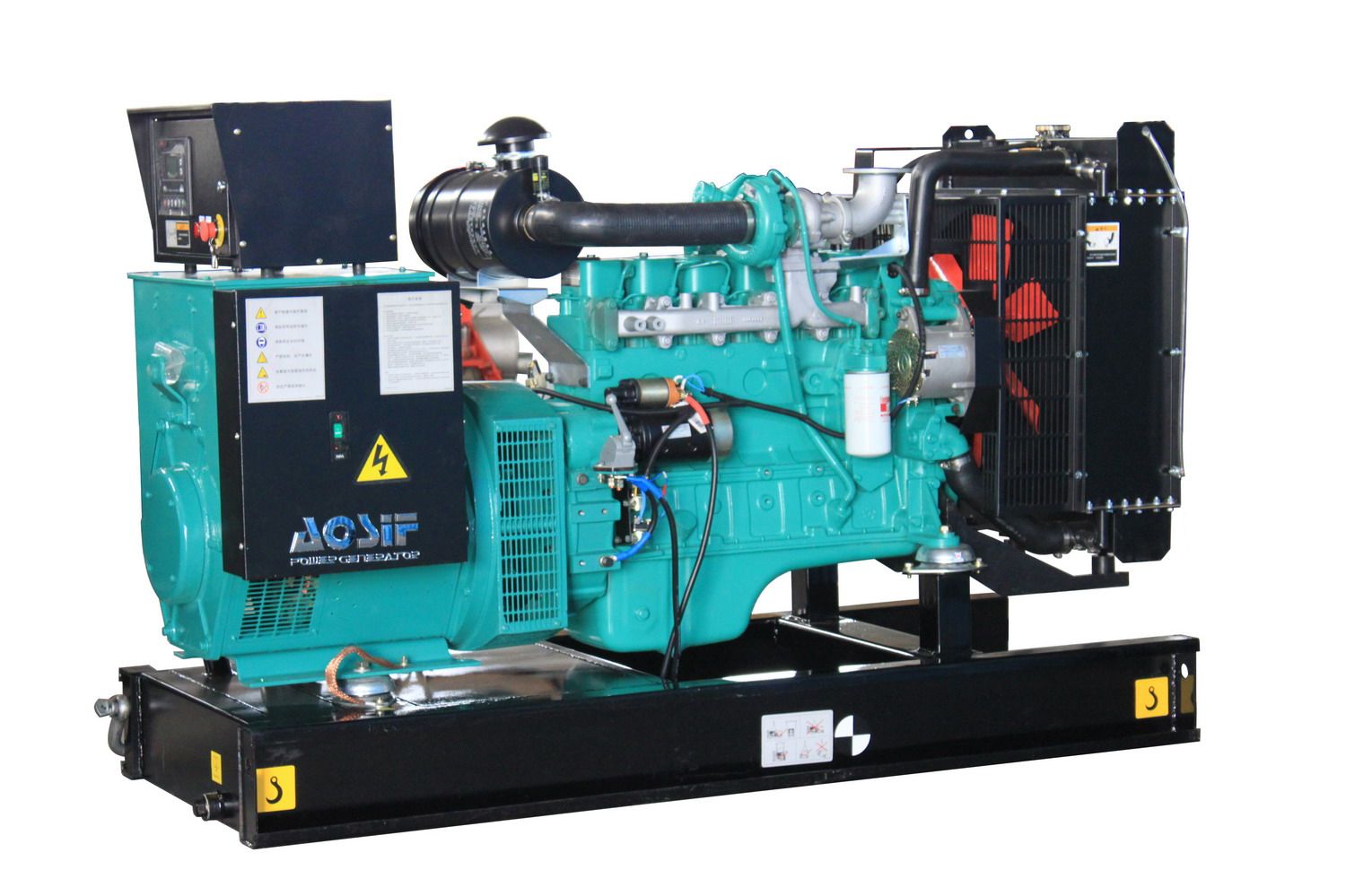

Genset Data for AOSIF Generator 125kva by Cummins engine
Manufacturer: Xiamen AOSIF Engineering Ltd
Product Name: AOSIF Generator with Cummins Power
Prime Power:100kw/125kva
Standby Power:110kw/138kva
Rated Voltage:230/400V(adjustable)
Frequency:50hz
Charge Alternator:24V
Speed:1500rpm
Genset type:Open, Soundproof, Weather Proof/ Super Silent type, Trailer Type
Canopy Color: 8 colors for option
Diesel Engine Data for AOSIF 125kva generators by Cummins engine
Brand:By Cummins Engine
Model:
6BTAA5.9-G2Prime Power:
120kw / 161HPNo. of Cylinders: 6
Fuel System:Electric
Governor Regulation:≤3%
Cooling Method:Water-cooled
Engine Speed:1500rpm
Compression Ratio:17.3:1
Displacement(L):5.9L
Bore x Stroke(mm):102*120 mm
Fuel Consumption(Prime Power):208 g/kw·h (30L/h)at 100% full load
Alternator Data for AOSIF 125kva generators by Cummins engine
Brand:By Leroy somer alternator
Optional Brand:By Stamford, Copy Stamford, etc
Model:
LSA44.3M6/100kwA.V.R Model:R 250
Power Factor(COS Phi):0.8
Excitation system:SHUNT
Winding pitch Code:2/3 ( N° 6 )
Insulation Class:H
Drip proof:IP23
Voltage Regulation: ±0.5%
Altitude≤ 1000 m
Over Speed:2250 min -1
Optional Supply:
1.ATS 2. Synchronization System 3. External daily fuel tank 4. Silent Canopy 5. Trailer 6. Auto Fuel Pump
7. Fuel and Water Separator 8. Lub Oil Heater 9. Coolant Heater 10. Fuel Drain Pump
With Our Own Factory: Cover an area of 33333 square meters, Located in XingTai Industrial Park of ChantTai
Economic Development Zone.
Xiamen AOSIF Engineering Ltd is devoted to the R& D and manufacturing of diesel generator sets since its
establishment in 2001,and AOSIF accumulates a wealth of experience in the manufacturing and maintenance
of generator sets field.
AOSIF EXHIBITION SHOW
OUR SALES PROMISES
? AOSIF Engineering provides a full line of brand new and high quality products. Each and every unit is strictly
factory tested before shipment.
? Quality Warranty is according to our standard conditions: 12 months from BL date or 1,000 running hours,
whichever comes first.
? Service and parts are available from XIAMEN AOSIF Engineering Ltd. or distributors in your location.
? All the products from Xiamen AOSIF Engineering Ltd. is CE marked.
FAQ
1. What is your warranty period?
Our warranty is 1 year or 1000 running hours whichever comes first. But based on some
special project, we can extended our warranty period.
2. Does your generator have global warranty?
Yes, most of our products like the power generator powered by Cummins, Perkins, Doosan engine enjoy
the global warranty service. And the alternator we use like powered by Leroysomer, Stamford, marathon also
enjoy the global warranty service, so you do not need to worry about the aftersales service.
3. Can you accept OEM?
Yes, we can accept OEM.
4. What is your payment terms?
We can accept T/T 30% in advance, and the balance 70% shall be paid before shipment or
L/C at sight, L/C deferred payment terms or west union.
5.What is your delivery time?
Our normal delivery time is 2 to 5 weeks. But if your order is some special engine and alternator,
then the delivery time is longer.
ANY NEWS OR QUESTION,PLEASE SEND YOUR MESSAGE TO ME RIGHT NOW.
We, Xiamen AOSIF Engineering Ltd is one of generator manufacturers founded in 2001, we dedicated ourselves to the production, R & D and maintenance of various diesel generator sets, electrical control systems, and related accessories like soundproof canopy, Trailer, ect.
We always submit ourselves to cooperate with international and domestic manufactures of diesel engine and have earned good recognition and reputation from our customers due to our quality orientation under ISO9001, ISO14001, CE, SGS, Soncap Certifications and OEM Partners of Cummins, Wandi, Jichai and Leroy-somer as well, which were certified one after another since 2003.
Nowadays we have our own registered trademark "AOSIF" to be well known of all customers worldwide who have always been in business on power, and our generator sets have been exported to more than 50 countries, which focus on Asian, European, African and American. Our mission is to advance our scientific management, to improve our quality level constantly and to maximum customers' profitability.
We have manufactured many kinds of products as below,
Engine brand: Cummins, Perkins, Deutz, Doosan, Volvo, Johndeere, Man, Mitsubishi, Lovol, and Chinese local brands etc...
Alternator brand: Leroy somer, Stamford, Marathon
Power range: 5kVA-5000kVA
Delivery time: 15 to 30 days.
Quality Warranty Period: 1 year or 1000hours whichever comes first
Customers satisfaction is the aim of our team!
