Certificate:
ISO9001: 2008
Warranty Time:
1 Year Since The B/L Date
Color:
as Per Request
Delivery Time:
About 30 Days
Stroke:
Four Stroke
Type:
Micro-Computer Control Automatic Diesel Generator
Cooling Method:
Water Cooling
Installation Method:
Fixed
Output Type:
AC Three Phase
Excitation Mode:
Brushless
Speed:
1500rpm
Landuse Type Of Unit:
Open Type or Silent Type
Product Description

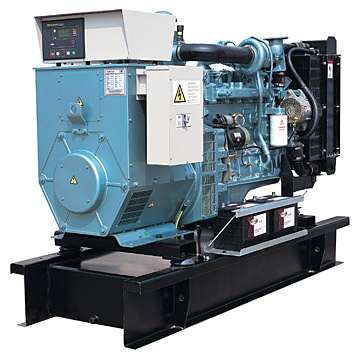

. Open type lower noise genset 200kw Cummins diesel generator set
Sound-proof / weather-proof canopy is optional . Standard configuration of gensets: A) Engine: Cummins series diesel engine B) Engine type: Water-cooled, in line four-stoke, Humit cylinde liner, direct injection C) Alternator: Brushless alternator . Starting system: DC alternator is used to start engine . Short circuit protection: MCCB air switch . Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40° C . Accessories: Exhaust elbow, bellow, muffler
Technical Data
Genset
Manufacturer
WEITUO
Model
WTC200GF
Frequency
50HZ
Power
Standby Power
220KW / 275KVA
Prime Power
200KW / 250KVA
Open type
Dimension(L*W*H)
mm
2500× 850× 1400
Weight
Kg
1400
Diesel engine
Engine Manufacturer
Cummins
Model
6LTAA8.9-G2
Cylinder Arrangement
6 in line
Air Intake System
Turbo
Fuel System
P7100 type fuel pump
Displacement
8.9L
Bore and Stroke
114× 145(mm)
Compression Ratio
16.0: 1
Rated RPM
1500rpm
Max. Standby Power at Rated RPM
240KW/322HP
Frequency Regulation, Steady State
≤ 1.5%
Exhaust Gas Flow
946 L/s
Max Intake Restriction
6.2kPa
Total Oil Capacity
27.6L
Total Coolant Capacity
11.1L(only engine)
Alternator
Manufacturer
Stamford
Model
UCDI274K1
Connecting Type
3 Phase and 4 Wires, " Y"
Protection Grade
IP23
Altitude
≤ 1000m
Exciter Type
Brushless, self-exciting
Insulation Class
H/H
Telephone Influence Factor (TIF)
< 50
THF
< 2%
Voltage Regulation, Steady State
≤ ± 1%
Alternator Capacity
250KVA
Alternator Efficiencies
92.70%
Air Cooling Flow
0.58m3/s
