| Prod Model: |
CDP30KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Generator: |
Diesel Generator |
| Generator Alternator For Option: |
Stamford; Marathon;Leroy Somer |
| Generator Control System: |
Automatic LED Screen Auto Start, Auto Transfer |
| Genrator Noise: |
Super Silent Available |
| Generator Engine For Option: |
Cummins Perkins Isuzu Kubota |
| Generator Alternator: |
Brushless with AVR |
| Generator Fuel Tank: |
8 Hours Contious Running |
| Cooling Method: |
Water Cooling |
| Stroke: |
Four Stroke |
| Installation Method: |
Fixed |
| Type: |
Basic Diesel Generator |
| Output Type: |
AC Three Phase |
Product Description
Generator low noise 65 dB(A) at 1 meters for super silent type
Professional Generator OEM Factory Guangzhou
Engine Perkins Cummins for option
Aternator Stamford brushless with AVR
Generator with Big fuel tank for 8 hours running
JIUAN Diesel Generator Set Advantage: · 50hz@1500rpm or 60HZ@1800rpm all are available· AVR delivers non fluctuating power· Panel type digital control panel· 12 Volt / 24 Volt electric starter ensures easy starting· Low oil pressure shut down system· Low fuel cut out protection· Low water cut out engine protection· Enclosed structure ensures quieter operation· Alternator (Dynamo) excitation mode brushless self excitation· Three-phase output meets differing requirements· Four Cylinder, four stroke, water cooled diesel engine· 8 hours running @ full load on a single tank of fuel· Dual access doors for easy maintenance· Optional automatic or manual transfer switches available· ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option· Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers· Noise Level (65-70dBA @ 7m)· All ratings are at sea levelAfter-sales Service: 1 year or 1800 running hours subject to the earlier one. 24 hours after-sales contact number: 0086 18520604611Contact Sales Manager24 hours after-sales contact number: 0086 15817087202Our Diesel Generator Set Production Range is as follows: * Engine (motor) for Choice 1. Cummins (USA ) 20KVA - 2000KVA2. Deutz (Germany) 20KVA - 150KVA3. (UK) 8KVA - 2000KVA4. ISUZU (Japanese) 20KVA - 40KVA5. Lovol (China) 20KVA - 150KVA6. Yangdong (China) 8KVA - 40KVA7. Weichai (China) 8KVA - 150KVA8. Shanghai Engine 9. Yuchai Engine 10. KUBOTA Engine 10KVA - 50KVA* Canopy for Choice 1. Silent type (75- 80 dB(A) at 7 meters)2. Super Silent type (65-70 dB(A) at 7 meters )3. Open type 4. Trailer type (mobile) 5. Container Type 6. Parallel System JIUAN Photos:
JIUAN CERTIFICATE:

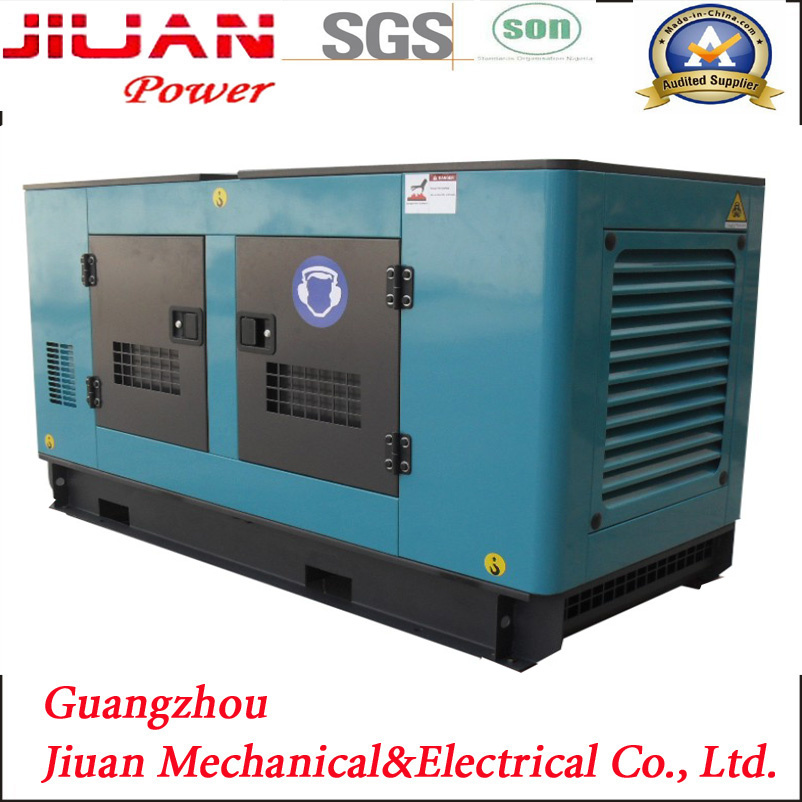

Generator 30KVA with Perkins Engine
MODEL |
CDP30KVA |
|
Powered by Perkins Engine |
|
Standby Power (50HZ) |
24KW/30KVA |
|
Prime Power (50HZ) |
22KW/28KVA |
|
Engine Model |
Original Uk Perkins 404D-22TG |
|
Engine Prime Power (50HZ) |
24.5 |
|
Engine Standby Power (50HZ) |
27 |
|
Speed |
1500rpm |
|
Cylinders |
4L |
|
Fuel Consumption |
7.1L/H |
|
Displacement (L) |
2.216 |
|
Compression Ratio |
23.3:1 |
|
Bore x Stroke |
84 X 100 mm |
|
Cooling Method |
Water - cooled |
|
Starting Method |
24V DC electrical start |
|
Alternator Model |
Stamford copy 184F |
|
Voltage |
220V |
|
Electric Current |
78A |
|
Power Factor |
0.8 |
|
Phase |
3-phases |
|
Brush/Brushless |
Brushless |
|
Insulation Grade |
H |
|
Protection Grade |
IP23 |
|
G.W/N.W |
550 KGS |
|
Overall Size |
2100x1000x1300 MM |
|
20FT |
12 PCS |
|
OPTIONAL |
ATS(auto transfer switch) |
|
|
Auto Battery Charger |
|
|
AMF(auto mains failure) |
|
|
New canopy |
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cummins (USA ) 20kVA - 1500kVA
2. Perkins (UK) 8kVA-1000kVA
3. Deutz (Germany) 20kVA - 150kVA
4. ISUZU (Japanese) 20kVA - 40kVA
5. Kubota (Japanese) 7kVA-50kVA
6. Lovol (China) 20kVA - 150kVA
7. Yangdong (China) 8kVA - 40kVA
8. Weichai (China) 8kVA - 150kVA
9. Shanghai Engine
10. Yuchai Engine
* Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice
1. Stamford
2. Leroy Somer
3. Marathon
* Controller
1. Smartgen
2. Deepsea (UK Brand and imported)
