Professional OEM Factory:

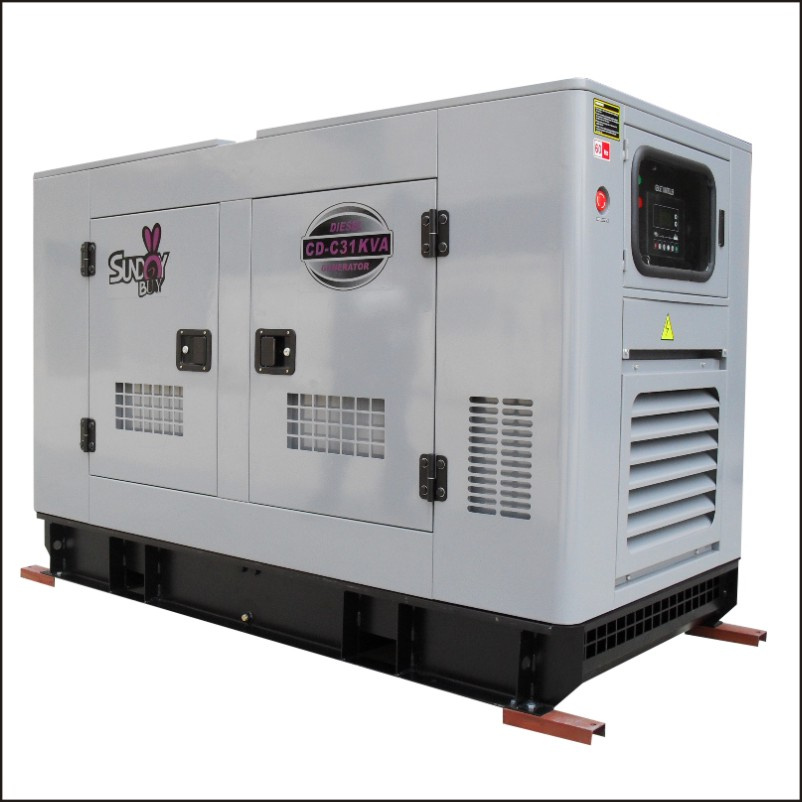

25kVA 20kw Diesel Generator Set
Cooling Method:
Water Cooling
Stroke:
Four Stroke
Installation Method:
Fixed
Type:
Self-Starting Diesel Generator
Output Type:
AC Three Phase
Product Description
25KVA 20KW Diesel Generator Set JIUAN Diesel Generator Set Advantage: · 50hz@1500rpm or 60HZ@1800rpm all are available · AVR delivers non fluctuating power · Panel type digital control panel · 12 Volt / 24 Volt electric starter ensures easy starting · Low oil pressure shut down system · Low fuel cut out protection · Low water cut out engine protection · Enclosed structure ensures quieter operation · Alternator (Dynamo) excitation mode brushless self excitation · Three-phase output meets differing requirements · Four Cylinder, four stroke, water cooled diesel engine · 8 hours running @ full load on a single tank of fuel · Dual access doors for easy maintenance · Optional automatic or manual transfer switches available · ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option · Weatherproof and soundproof, enclosure high grade steel protected by powder coat painting and incorporate internally mounted exhaust silencers · Noise Level (65-70dBA @ 7m) · All ratings are at sea level
After-sales Service: 1 year or 1800 running hours subject to the earlier one. 24 hours after-sales contact number:0086 18520604611

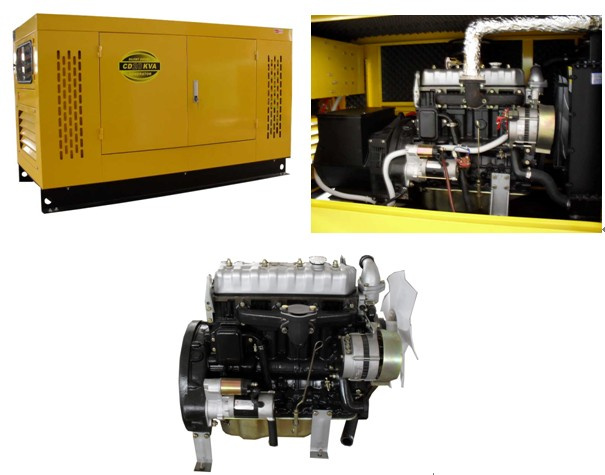

* Canopy for Choice 1. Silent type (75- 80 dB(A) at 7 meters) 2. Super Silent type (65-70 dB(A) at 7 meters ) 3. Open type 4. Trailer type (mobile) 5. Container Type 6. Parallel System JIUAN Generator Photos: JIUAN Certificate
Generator Set Model
CDY-20kw/25kva
Generator Set Power
15kw/20kva
Generator Powered by YANGDONG Engine
Diesel Engine Model
YD495G
Engine Characters
Water-cooled, in line, 4-cycle, direct injection, 1500rpm
Bore x Stroke (mm)
90x105
Rated Output
25kw/31kva
Fuel Consumption (g/kw. hr)
262
Lube Consumption (g/kw. hr)
2.72
Compression Ratio
18
Starting
Electric (12V)
ALTERNATOR MODEL
Stamford copy 184F
Rated Power
20kw/25kva
Voltage (V)
220/380 240
Current (A)
12.1
Frequency (Hz)
50
Power Factor (cos)
0.8
Brush/Brushless
Brushless
Dimensions (LxWxH) mm
S: 1700x960x1060
Gross Weight (KGS)
600
20FT
12 PCS
Guangzhou Jiuan Mechanical & Electrical Co., Ltd. is a professional generator manufacturer and exporter with generator capacity from 2kVA to 2000kVA. Generator can be powered by Cummins, Perkins, ISUZU, KUBOTA and Chinese engine. Welcome to chose our products and don' T hesitate to contact us.
Our Diesel Generator Set Production Range is as follows:
