| Prod Model: |
GHBH 002 12 1R5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Golden |
| Application: |
Air Aeration |
| Insulation Class: |
F |
| Protection: |
IP 54 |
| Sound: |
62 dB |
| Bearing: |
NSK or SKF |
| High Temperature Resistance: |
up to 130 |
| Power: |
1.5kw |
| Type: |
Synthetic Therapy Equipment |
Product Description

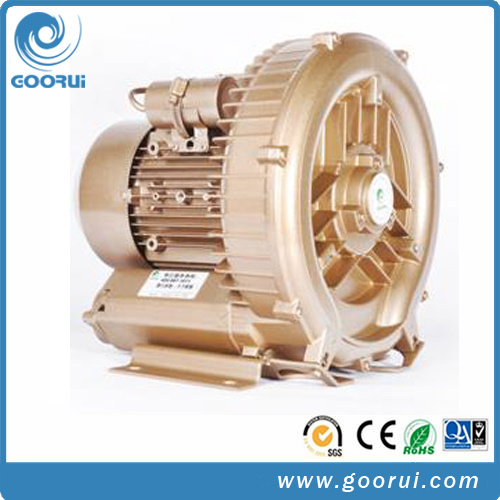

2HP Single Phase Dental used vacuum Pump, Suction Pump
| New Model | Single | Frequency | Rated | Voltage | Rated | Max | Rated | Rated | Sound | Weight |
| Double | Output | Current | Airflow | Vacuum | Pressure |
| Stage | Hz | KW | V | A | m3/h | mbar | mbar | dB(A) | Kg |
| GHBH 002 12 1R5 | Single | 50 | 1.5 | 220-240 | 9 | 210 | -200 | 190 | 64 | 24 |
| 60 | 1.75 | 220-240 | 9.5 | 255 | -220 | 210 | 70 |
Goorui Regenerative Blower's advantages:
1. Suction/blow dual purpose, widely applied in industry machines.
2. Die cast aluminum impeller and housing, rust and erosion proof.
3. SKF NSK bearing, durable and maintence free.
4. Small dimension, portable, easy installation
5.100% oil free, energy saving, low noise and vibration eco-friendly.
6. Excellent heat dispersion, run 24 hours continuously.
7. Stock available, fast delivery.
Application of Goorui blowers/pumps:
1. Aquaculture (fish and prawn pong aeration)
2. Waste water treatment, sewage treatment system.
3. Pneumatic conveying systems.
4. Lifting and holding of parts by vacuum.
5. Packing machines.
6. Filling of bags/bottles/hoppers.
7. Soil remediation
8. Food processing.
9. Laser printers
10. Dental suction equipment.
11. Paper processing.
12. Gas analysis.
Goorui Regenerative Blower's advantages:
1. More than ten years experience in the vacuum field and solution.
2. We have 36 core tech patent
3. Our product all adopted SKF and NSK bearing
4. Our product can heat-resistent up to 130° C
5. With high airflow as 2500m3/h, and surpass 1000 mbar.
6. We have passed the test of CE, RoHS and SGS
7. The max. Motor capacity is more than 29KW
Qualifications and awards:
In 2007, ISO 9001: 2000 passed. CE certified. "Chinese trademark certificate" approved. "Dongguan Energy-saving Association's Standing Council Member" awarded.
In 2008, "German trademark certificate" certified. "Dongguan city high technology private company" awarded.
In 2009, RHOS certified.
In 2010, "Guangdong Province high technology private company" passed.
In 2011, "Dongguan city patent foster company" awarded.
Dongguan Foersheng Mechanical &Electrical Technology Company Limited (FLS) is one of the world's leading side channel blower manufacturer with over 10 years experience in blower and motors R&D, producing, marketing and after sales service.
FLS has own a manufactory center in Dongguan City and sales subsidiaries in 4 cities, Dongguan, Shanghai, Chengdu and Qingdao. Its sales network covers over 20 countries worldwide, including Asia, Europe, Africa and American, etc.
Our service includes
1. Supply & manufacture of side channel blower (ring blower/regenerative blower), air flow capabilities range from 60 to 2550 m3/h, vacuum capabilities 60 to 1000mbar. Supply & manufacture of explosion proof blowers and bare shaft (belt drive style ) blower.
2. On site performance testing of side channel blowers.
3. Also supply accessories (silencer, pressure relief valve, filter, filter barrels), frequency inventor, liquid ring vacuum pump. etc.
Our Blower features are:
1.100% oil free air delivery
2. No routine maintenance
3. Quiet operation, low noise
4. Versatile /ATEX /IE motor options
5. CE, UL, CCC, RoHS, ISO9001
6. Insulation class: F, Protection class: IP54
Industries application:
1. Agriculture(Fish pond and aeration tanks)
2. Food and vegetable processing
3. Dental cart and dental vacuum
4. Air knives blown-off / Labeling/Drying
5. Air knives blown-off/ Bottle blow mould / Extruder Degassing/Pneumatic conveying/ Thermoforming)
6. Printing/CNC table material holding
7. Paper and pulp/ paper converting
8. Textile industry
9. Pneumatic conveying/ Biogas conveying /material handling
10. Water treatment/Sewage treatment
11. Woodworking(CNC Routing/bulk handling)
