| Prod Model: |
FDE-300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Power: |
300W |
| Wheel Diameter: |
1.8meters |
| Blade Material: |
Nylon Firber |
| Rotating Shaft: |
Horizontal |
| Stress Way Of Blade: |
Lift Force |
| Number Of Blade: |
Three Blade |
| Phase: |
3 Phase |
Product Description
Feature:

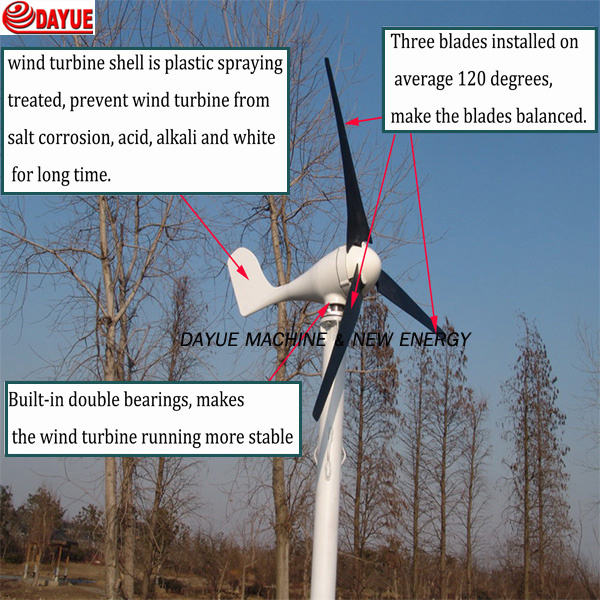

1.Low start up speed,blade diameter is 1.8m. high wind energy utilization
2.Easy installation, tube or flange connection optional
3.Blades using new art of precision injection molding , matched with optimized aerodynamic shape and structure,which enhance the wind energy utilization and annual output.
4.Body of casting aluminum alloy, with 2 bearings swivel , making it survive stronger wind and run more safely
5.Patented permanent magnet ac generator with special stator,effectively reduce torque, well match the wind wheel and generator, and ensure the performance of whole system.
6.Controller,inverter can be matched accroding to customers' specific needs.
| System |
|
| Type: Single Phase | Off-Grid System |
| Configuration Diameter | Horizontal Axis |
| Rotor Diameter: | 1.25m |
| Location Relative To Tower | Upwind |
| Rated wind speed | 1850rpm |
| Yaw system | By Tail, Free, Passive |
|
|
| Performance Parameter |
|
| Rated Electrical Power | 300Watts @ 7m/s |
| Cut-in wind speed | 2m/s |
| Cut-out wind speed | 13m/s |
| Shut-down (high wind) | 16m/s |
| Security wind speed | 45m/s |
| Calculated Annual Output | 970khw@above 5m/s |
|
|
| Blades |
|
| Length | 0.625m |
| Material | Carbon Fibre |
| Blades weight | 16.5kgs |
|
|
| Generator |
|
| Type | 3phase/ PMG |
| Frequency | 50Hz |
| Voltage | 3phase@50Hz, 0-300Vac |
| Rated Power output | 300 Watts |
| Maximum power output | 380 Watts |
| Insulation | Class F |
|
|
| Charge Controller |
|
| Input voltage from generator | 0-60Vac |
| Charge voltage | 24VDC |
| Battery Marching Quantity | 2Pcs x 12V-150AH Batteries |
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-JD series Horizontal Axis Variable Pitch Blades Wind Turbine (2KW- 30KW)
-FDV series Vertical Axis Wind Turbine (300W-5KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;
There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.
If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
