| Prod Model: |
FDV-3KW |
| Markets: |
North America,South America,Eastern Europe,Africa,Oceania,Mid East,Western Europe |
| Rated Power: |
3kw |
| Max Power: |
4.5kw |
| Generator: |
3 Phase AC Permenet Magnet Generator |
| Rotor Diameter: |
3m |
| Blades Number: |
3PCS |
| Height Of Blades: |
3.6m |
| Rated Voltage: |
AC220V/380V |
| Rated Rotor Speed: |
150r/Min |
| Height Of Tower: |
8m, 10m, 12m, 15m for Selection |
| Tower Type: |
Free Standing Tower and Hydraulic |
| Number Of Blade: |
Three Blade |
| Rotating Shaft: |
Vertical |
| Stress Way Of Blade: |
Lift Force |
| Phase: |
3 Phase |
Product Description

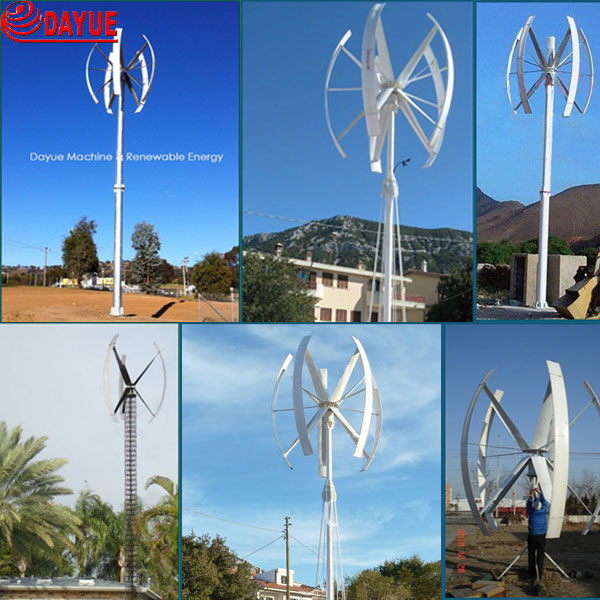

FDV-3KW Vertical Axis Wind Turbine: This vertical
turbine is adopted maglev axis and can be used for on-grid and off-grid, we also supply complete system including the grid tie controller, grid tie inverter ,free standing tower or
hydraulic tower optional .
1,FDV Series Vertical Wind Turbine Feature:2. With 3PCS carboform & FRP blades, which can withstand more than 50m/s wind gust
3. With electricmagnetic brake system
4. Equipped with the hybrid controller, which can connect 1/3 solar panel of rated power of wind turbine
5. Low noise (in 63dB, testing in tower base under more than 18m/s wind speed )

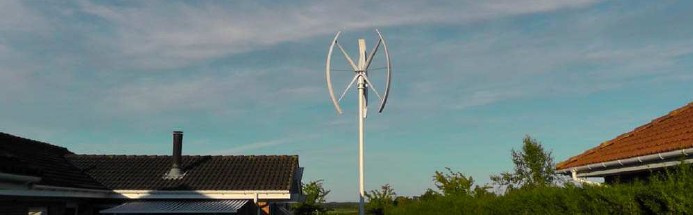

6. Easy installation, it can be installed on rooftop of users.
-FDV-1KW-5KW VAWT (Vertical axis) which is running from 2m/s- 25m/s wind speed ,it is adopted the meglev axis technology for reducing friction between rotor and shaft , so the noise is really lower and can be installed at rooftop.PS: if you want to know clearly and depth the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the "view video " buttom below the main picture, then you will see the FDV-5KW wind turbine complete installing steps and working conditions. 2. Wind Turbine Models Optional For Your House- JD-2kW and FDV- 1KW or 2KW Wind Turbine (220Vac/50-60hz) : A family without more electric appliances, they can choose this unit just for powering lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc. pls note that it is difficult to use this unit power air condition or bigger water pump ,as well as electric water heater etc .- JD-5kW and FDV-3KW or 5KW Wind Turbine (220Vac/50-60hz) : A family can use it power 1-

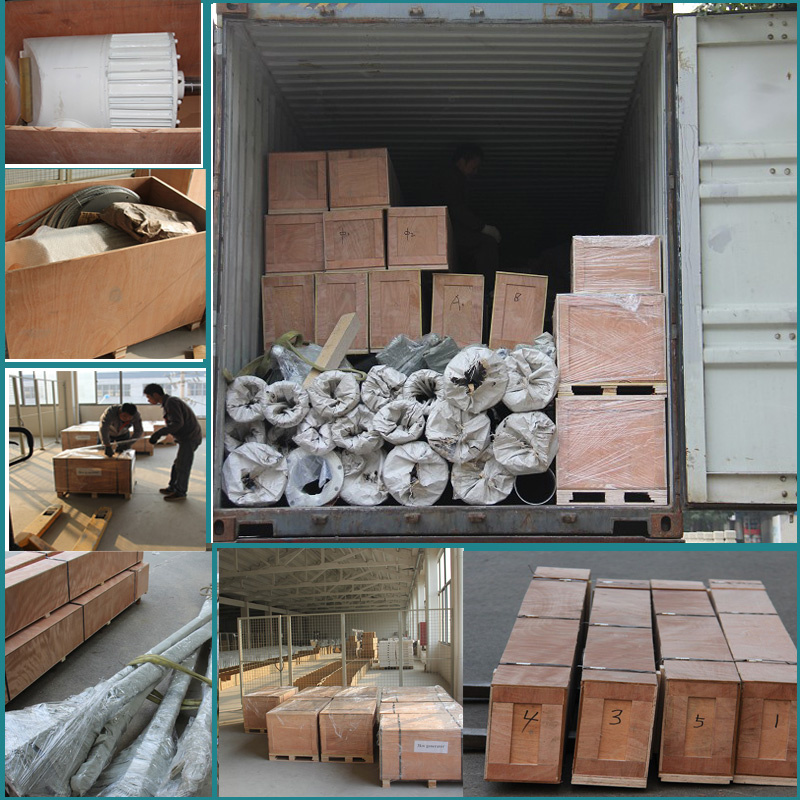

2 sets of air condition with 1 or 1.5P, and all of normal home electric appliances such above mentioned lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc.For more details about our other products, pls feel free to visit our website www.chinawindsun.com or email us , we will try our best to assist youFactory View:
| Model | FDV-3000 |
| Rated Power | 3000W |
| Rotor diameter | 3m |
| Height of blades | 3.6m |
| Number of blades | 3 Pcs |
| Rated rotor speed | 150r/min |
| Rated wind speed | 9-11m/s |
| Start-up wind speed | 2m/s |
| Work wind speed | 3-25m/s |
| Survival wind speed | 50m/s |
| Generator Output voltage | AC220V/380V |
| Charge Voltage | DC240V |
| Inverter Output Voltage | 220Vac/50hz |
| Tower type | Free Standing Tower |
| Height of tower | 8m, 10m, 12m, 15m height for selection
Hydraulic Tower and Free standing Tower Available |
| Suggested Batteries | 20Pcs
12V100AH |
PS: if you want to know clearly and in depth the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the "view video " buttom below the main picture, then you will see the FDV-3KW wind turbine installing steps completely and running conditions.
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-JD series Horizontal Axis Variable Pitch Blades Wind Turbine (2KW- 30KW)
-FDV series Vertical Axis Wind Turbine (300W-5KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;
There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.
If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
