Rated Power:
10kw
Diameter Of Wind Rotor:
6.4meters
Material Of Blade:
FRP Complex Resin
Rated Speed:
180rpm
Generator:
Three Phase Permanent Magnet Generator
Rotating Shaft:
Horizontal
Stress Way Of Blade:
Lift Force
Number Of Blade:
Three Blade
Phase:
3 Phase
Product Description

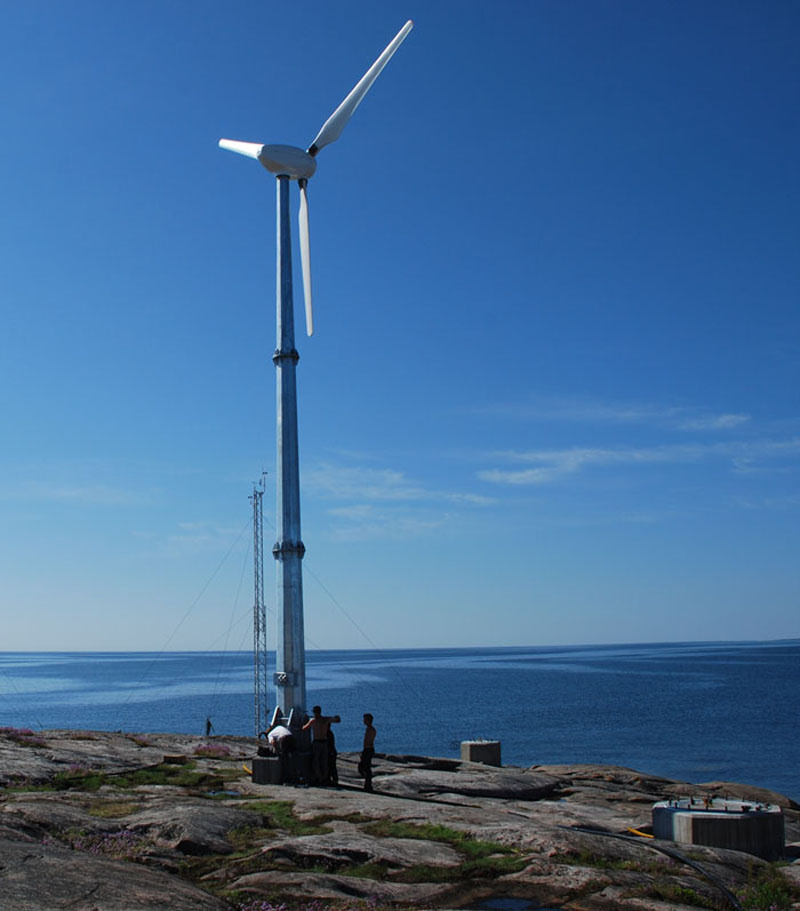

Variable Blades Pitch Wind Turbine (FD-10KW)
JD Series 2KW-5KW 10KW Wind Turbine System Features:
------1) With AerofoilType Blades , the structure are comply with aerodynamic standard with high efficiency and lower noise , you can check the pictures of our JD series turbine blades, which are difference for other factories blades. And there's really important design is this turbine is adopted the Variable pitch propeller, it can adjust the blades wind-toward angle for getting the best driven energy for generator
---2) This turbine all withmechanical brake device which can be automatically operation or by manual operation, when your wind turbine meet the strong windy , you can totally brake it to avoid any damaged.
--3) There're also few kinds of tower for selection,Tapered tower, Lattice Tower, hydraulic tower , you can choose the best one against the purchasing cost budget and the installation site condition.
--4) All towers will be with a working station fence , the technicians can stand at the working station for making installation and commissioning for this turbine
--5) On-grid and off-grid system application for different countries demanding
If you choose the off-grid system , we can equipment with a dual powers inverter with this turbine, so that it can use the utility grid power and wind power to together supply your home , the wind power as main power and utility grid power as standby power ,its voltage output can be designed against users requirements
---6)The on-grid system is equipped with Sungrow controller and inverter, which are obtained the CE , TUV ,G83 certificate to ensure you can easily get the installation permission from your government ,The on-grid voltage can be single phase 240Vac or three phase 380-415Vac
----7) Low noise (Under 55db), never effect people working and rest.
PS:if you want to know clearly and in depth the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the "view video " buttom below the main picture, then you will see the JD-10KW wind turbine complete installing steps and working conditions.
PS:if you want to know clearly and in depth the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the "view video " buttom below the main picture, then you will see the JD-10KW wind turbine complete installing steps and working conditions.

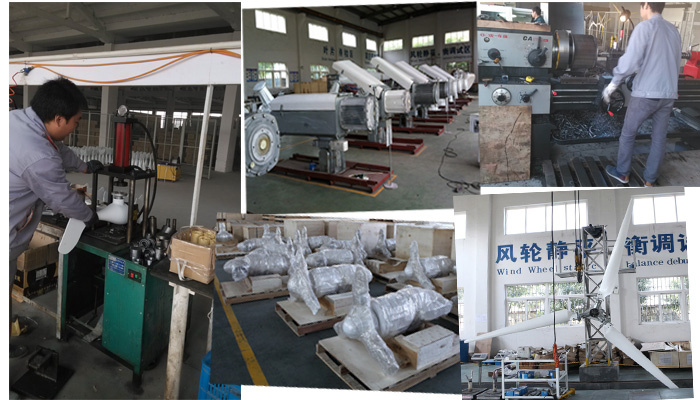

Factory view:
Numbers of Blade
3 Pcs
Material of Blade
FRP Complex Resin
Diameter of Wind Rotor
6.4m
Start (out-in) wind speed
3m /s
Working wind speed
3 -31m /s
Rated speed
180 rpm
Security wind speed
45m /s
Wind energy ratio
40%
Generator
Three phase Permanent magnet generator
Generator rated power
10000w
Max output power
1400w
Charging voltage
240Vdc
Output voltage of Inverter
Single phase 220-240Vac/50HZ 110-130Vac /60HZ Three Phase 380-415Vac/60HZ
Stop method
By Controller auto-brake or Manual
Wind direction tracking method
By dogvane and controller auto-adjustment
Speed adjustment method
By anemoscope and serve motor
Protect method
Intelligent control full-automatically
Tower type
Galvanized Tapered tower
Tower height & weight
12m / 1450kgs
Charging control
Intelligent control full-automatically
Inverter power supply
Pure sine wave
Battery Matching (for off-grid wind system)
20-30pcs 12Vdc-200AH Lead-acid or colloid batteries
Input: 240Vdc Output: 240Vac single phase or 380-415Vac Three phase Recommend: SMA WB 6000A (two pcs) Sungrow WG20K (One pcs)
Time of charging (off-grid type)
About 18 hours
Annual power generation
About 25000 KWH ( annual average wind speed above 7.5m /s )
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;
There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.
If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
