| Prod Model: |
AC440-3125KVA-RL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
AC440V |
| Frequency: |
50Hz |
| Rated Capacity: |
3125kVA |
| Resistive Load: |
2500kw |
| Inductive Load: |
1875kvar |
| Power Factor: |
0.8~1 |
| Working Voltage: |
AC380V/50Hz |
| Dimension: |
6058*2438*2896mm |
| Insulation Grade: |
F Class |
| Cooling: |
Forced Air Cooling, Horizontal Inlet Air, Upward C |
Product Description

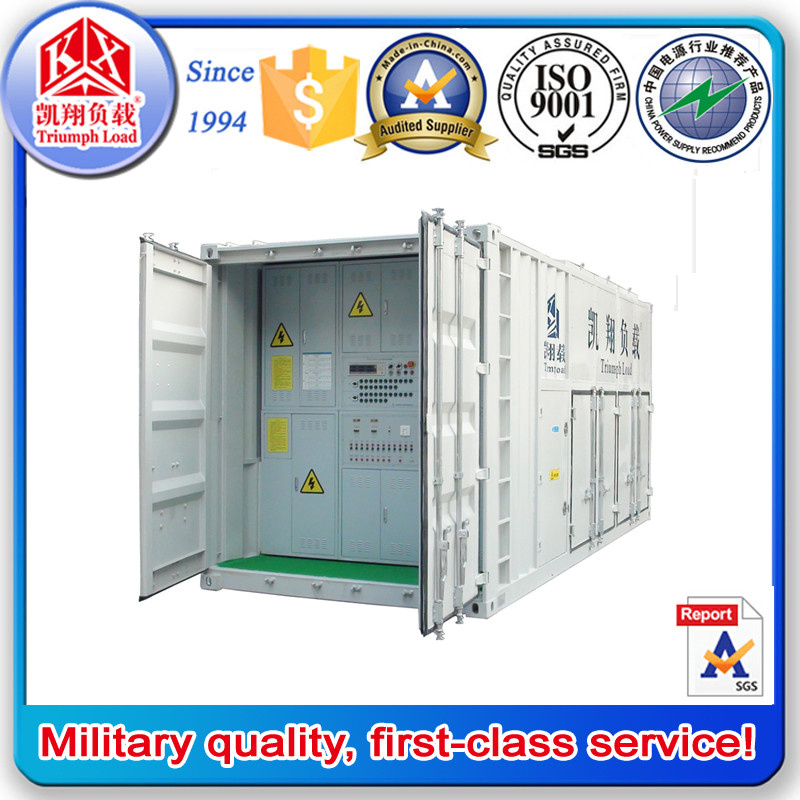

3125KVA RL Generator Set Test LoadBank
1.Product Introduction
3125KVA RL Generator Set Test LoadBank( Testing System) Introduction
The system is a self-developed device used for electricity load testing by Kaixiang Technology.
It perfectly combines the dry type load module and measurement and control module, precisely test output power and load performance of kinds of generator set, and realize setting, fluctuation, instant load, instant unload, record wave analysis,
and harmonic wave analysis, so to finish all the static parameters and dynamic parameters testing.
Measuring Feature
Steady-state Test: load power in rated range, measure generator steady-state 3 phase voltage, current, active power,
reactive power, apparent power, power factor, frequency, and running time.
Setting Test: can catch the max and min setting value of voltage and frequency, and calculate the relative setting up and
down range of voltage and frequency and adjustment rate within 100 seconds setting time.
Fluctuation Test: catch the max and min fluctuating value of voltage and frequency, and calculate steady-state frequency
band, steady-state voltage deviation, voltage modulation, fluctuation rate and frequency in 60 seconds fluctuation time.
Transient Test (Instant Load Test): sample interval is 40μs,system catch the transient max and min value and
recovery time of voltage, current, and frequency, and calculate instant load transient voltage deviation and instant load
transient frequency deviation.
Transient Test (Instant Unload Test): sample interval is 40μs,system catch the transient max and min value and
recovery time of voltage, current and frequency, and calculate instant unload transient voltage deviation and instant
unload transient frequency deviation.
Harmonic Analysis: It can analysis 2~50 harmonic content and total harmonic content in voltage and current at same
time.
Record Wave Analysis: 5 patterns for recording voltage real-time waveform, and the record time is 4~ 280 seconds
and accurately sampling at 128 points in a wave cycle at most.
2.3125KVA RL Generator Set Test LoadBank Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
3.3125KVA RL Generator Set Test LoadBank Technical Specifications
Technical parameter |
AC440-3125KVA-RL |
Rated voltage /Frequency |
Three-phase three-wire 440V,50Hz |
Rated Capacity |
31255KVA |
Load Distribution |
Resistive load: 2500kW,Inductive load: 1875Kvar |
Stepping Value |
Resistive load: 10KW Inductive load: 5Kvar |
Resistor divider file |
10, 20, 20, 50, 100, 100, 100, 100, 200, 200, 200, 200, 200, 200, 200, 200, 200, 200KW 18steps |
Reactance file |
5, 10, 20, 20, 20, 50, 50, 100, 100, 100, 200, 200, 200, 200, 200, 200, 200Kvar 17steps |
Power factor |
0.8-1 |
Load Tolerance(each step) |
±5% |
Load Tolerance(overall) |
±3% |
Display Precision |
0.5 class |
Control Power Supply |
External AC three phase connection 380V/50Hz |
Wire Connection |
Load power supply input--Copper bar (star coupling)
Control power supply input--Connector-bar |
Insulation grade |
F class |
Duty cycle |
Continuous |
Cooling |
Forced air cooling, Horizontal inlet air, Vertical cooling |
Transportation |
Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Casing Color |
Grey(RAL7035) |
Dimension |
About 6058mm*2438mm*2896mm(length*width*height) |
Weight |
About 18000kg |
Operating Environment Parameter |
Ambient Temperature |
-10ºC~+50ºC |
Relative Humidity |
≤95% |
Altitude |
≤2500 meters |
Atmospheric Pressure |
86~106kPa |
Main components brand |
Contactor |
Schneider |
Circuit Breaker |
Siemens |
Fuse |
Delixi |
SCM |
Infineon |
Alloy Resistor |
Kaixiang |
Data Management Software |
Kaixiang |
4.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
