| Price: | US $ 1000/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 10/Piece |
| Pay Type: | L/C,T/T |
| Prod Model: | GR225E-48KW |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

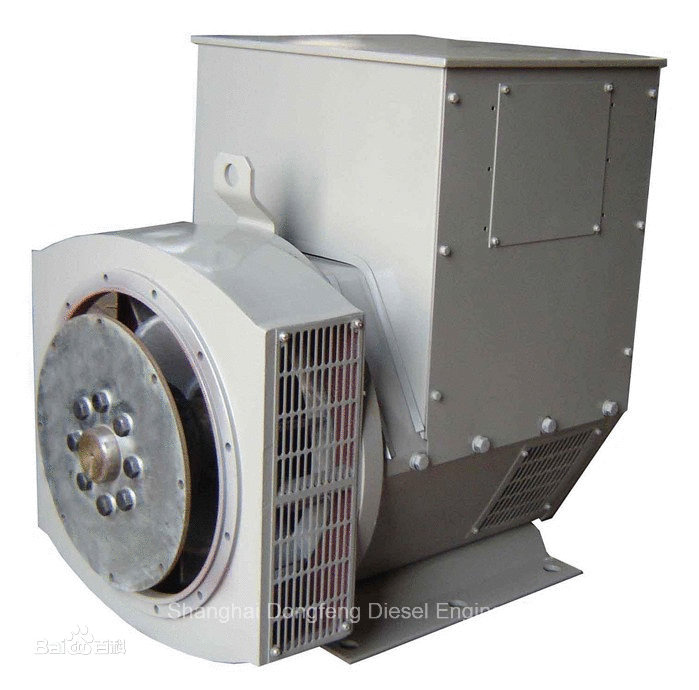

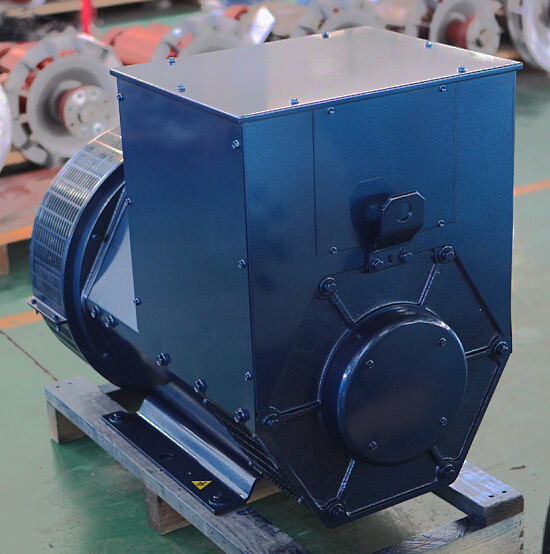

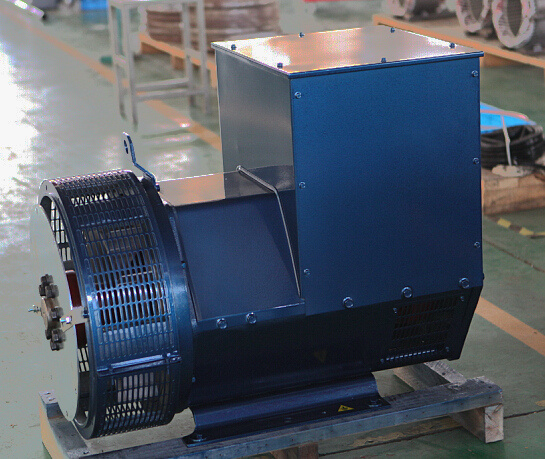

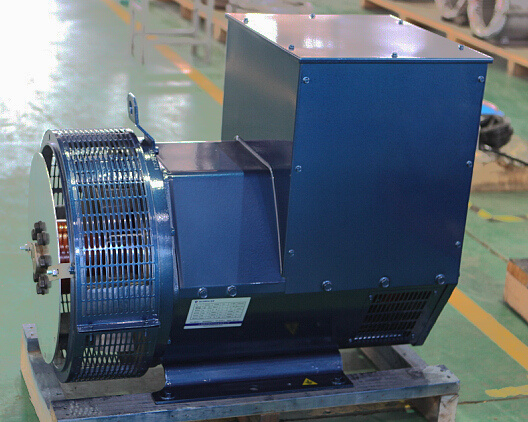

Cummins designed alternator, Brushless alternator.
Main Specification:
Power output: 48KW
Voltage: 110/220/230/240/380/400/410V
Frequency: 50HZ,60HZ.
Rated speed: 1500rpm,1800rpm.
AVR: SX 460 or SX440
Single phase or Three phase to option.
SAE:0, 1,2,3# or 7.5'',10'',11.5''14 disk to option.
| SAE/ Frame No. | CONTINUOUS DUTY | ||||
| Brushless Alternator Model | Rated Output (KW/KVA) | Specification | |||
| KW | KVA | Packing Size(cm) | G.W/N.W(kg) | ||
| GR225C | SEA1,2,3#/ 8,10,11.5,14disk | 34 | 42.5 | 108X66X94 | 255/235 |
| GR225D | 40 | 50 | 270/250 | ||
| GR225E | 48 | 60 | 290/270 | ||
| GR225F | 58 | 72.5 | 330/310 | ||
| GR225G | 68 | 85 | 370/350 | ||
| 1) Insulation Class: H | |||||
| 2) Protection Class: IP 21 or IP23 | |||||
| 3) All generators have two kinds of coupled construction: single-bearing or double-bearing | |||||
