108X66X94cm:
255kg
Product Description

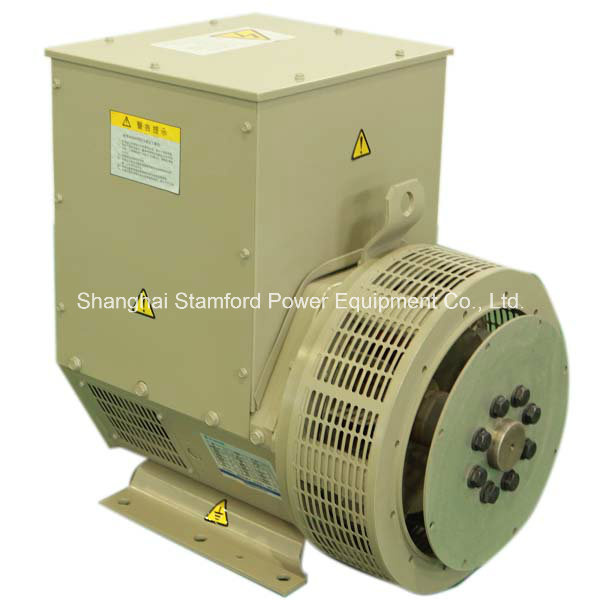

Alternator Main Specifications 1) Power range: 8kVA-2150kVA (6.5KW-1720KW) 2) Rated voltage 380/400V, 110-480V option 3) Synchronous A. C. Brushless Alternator, 4) Stamford Generator type, 5) Single phase or Three Phase option 6) Enclosure: IP23, 7) Insulation Class: H 8) SAE international coupling. 9) AVR. (Automatic Voltage Regulator) controlled: SX460 or SX440 10) 12 wire reconnect winding
Features 1) USA Superior Essex excellent copper wire 2) WSICO excellent Silicon steel sheet. 3) Germany Elantas electrical insulating painting 4) Insulating painting for every winding wire one by one 5) double VPI craft, so that stronger enclosure. 5) Dynamically balanced rotor and sealed-for-life bearings; 6) Permanent Magnet Generator(PMG) is available as an option; 7) Reliable supplier with Quality Materials, and strict Quality Controller (by QC Dept. ) 8) Easily coupled with diesel engine 9) Balance rotor with single or double bearings available, 10) Convenient installation and easy maintenance, easy access to terminal, rotating rectifier and coupling bolts, 11) Wide range of flange adaptor and single bearing coupling disc, 12) Adjusting rate of stable voltage≤ 1% 13) Transient state voltage≤ -15% - +20% 14) Wave aberration rate of voltage THD≤ 3% 15) Telephone harmony wave factor of telephone THF≤ 2%
Standards & Certifications 1) Shanghai Stamford generators are comply with International standards of IECBS 5000, VDE 0530, IEC 34, NEMA MG1-22, CSA C22.2-100 and ASB59. 2)Shanghai Stamford generators are Certified of ISO9001, CE, CCC, SGS
Solutions 1) Easily coupled with Industrial & Marine, Diesel engines, world first-class of Cummins, Volvo Pena, MTU, Deutz, MAN, Caterpillar, Yanmar, Kubota, Lister Petter, Doosan, etc, 2) Widely used in Industry, Commercial, real estate, hospital, hotel, railway, telecommunications, datacenters and mining etc
Warranty: 1 years or 1000hours whichever come frist, Will supply new parts for replacement within 3 days upon customer's complaint.
SAE/ Frame No.
CONTINUOUS DUTY
Brushless Alternator Model
Rated Output (KW/KVA)
Specification
KW
KVA
Packing Size(cm)
G.W/N.W(kg)
GR225C
SEA1,2,3#/ 8,10,11.5,14disk
34
42.5
108X66X94
255/235
GR225D
40
50
270/250
GR225E
48
60
290/270
GR225F
58
72.5
330/310
GR225G
68
85
370/350
1) Insulation Class: H
2) Protection Class: IP 21 or IP23
3) All generators have two kinds of coupled construction: single-bearing or double-bearing
Shanghai Stanford Power Equipment Co., Ltd. is a professional manufacturer of 135 series diesel engines, 135 modified products and subsequent auxiliary products (diesel generating sets). In the business concept of People-oriented, our institution employs high-paying key technicians of all kinds, cultivates a strong technical team, and is kind to the employees to stimulate their passion at work. According to customer requirements, our institution is able to design different stationary, marine and power station diesel engines in line with the international standards.
Please feel free to contact us for further information.
