Prod Model: |
HD6500SW |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rated Output (KVA): |
1.8/2.0KVA |
Max Output (KVA): |
2.0/2.2KVA |
Rated AC Voltage (V): |
230/120/240v |
DC Output: |
12v/8.3a |
Rated Welding Voltage: |
28-32v |
Output Type: |
AC Single Phase |
Cooling Method: |
Air Cooled |
Stroke: |
Four Stroke |
Installation Method: |
Portable |
Type: |
Self-Starting Diesel Generator |
Product Description

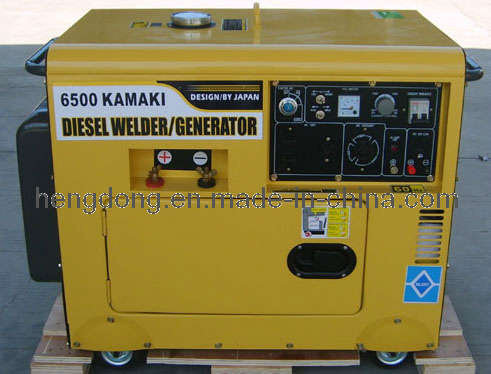

5.5KW Silent Diesel Welder Generator HD6500SW, with CE, GS, EPA certificate.
Low oil protection against damage
Euipped with electic start, easy to operate
Lowest oil consumption
Long working time: 7hrs continuos work time
Automatic air bleeding mechanism
Diesel Welding Generator HD6500SW
Generator Set |
Frequency (HZ) |
50/60 |
Rated output (KVA) |
1.8/2.0 |
Max output (KVA) |
2.0/2.2 |
Rated AC Voltage (V) |
230/120/240 |
Power Factor |
1.0 |
DC output |
12V/8.3A |
Phase |
Single Phase |
Alternator Type |
Self-excited, 2-pole brush AVR |
Starting System |
Electric |
Noise Level (Dba/7m) |
68-72Dba |
Fuel Tank Capacity (L) |
16L |
Continues Running Time (hr) |
7hr |
Engine |
Engine Model: |
HF186FA |
Engine Type: |
single-cylinder, vertical, 4-stroke air-cooled diesel engine |
Max output of engine: |
9.0HP/3600rpm |
Bore × Stroke (mm) |
86× 72 |
Displacement Capacity(cc) |
418cc |
Fuel Consumption rate(g/kw. h) |
≤ 280 |
Fuel |
0# or -10# light diesel oil |
Lubrication Oil Volume (L) |
1.65L |
Combustion System |
Direct Injection |
Welder |
No-load Voltage |
65-70V |
Rated Welding Voltage |
28-32V |
Max Welding Current |
180A |
Welding load continuous ratio |
50% |
Current Accommodate |
80-190A |
Welding Rod |
2.5-4.0mm |
Dimensions |
L× W× H (mm) |
950× 555× 760 |
Weight (kg) |
178 |
20FT Load Quantity |
72PCS |
Established in July 2007, located in Weiyang district of Yangzhou, a city subordinate to Jiangsu province, Yangzhou Hengdong Mechanical & Electrical Co., Ltd is conveniently suited near freeway with ascendant investment environment. It arranges a settlement of 50 employees, among which there are 30 boasting academic certificate at or above the junior college level or obtaining junior superior title. Most of 8 technicians have served as Chief Engineer or Assistant Chief Engineer in the well-known generator manufacturing enterprises.
The company owns international advanced product research and development center, assembly line, machine performance test line, and generator component test table, which are all provided with computer-control system. Its leading product, HD power brand generators, can be widely applied in the home power solution, cars industry, army connection system, network system and telecom area.
Until now, with the certification of ISO9001, EPA, CARB and CE, the company has provided its products to a lot of different market which includes North & South America, Europe, Africa, Middle-east and Chinese local market.
Hengdong is not only an OEM factory, but also the strong backing of its client who researches and develops new suitable products every year for the ever-changing world wide market. We will be always keep going on improving the product value and creating long time partnership with all our world wide strategic partners.
