| Prod Model: |
SP-500F |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| System Voltage: |
24VDC |
| Packing Unit: |
PCS |
| Warranty: |
1year |
| Output Voltage: |
DC12V,AC110/220V |
| Product Size: |
500*430*780 |
| Kind: |
Solar Generator |
| System: |
Off-Grid system |
Product Description

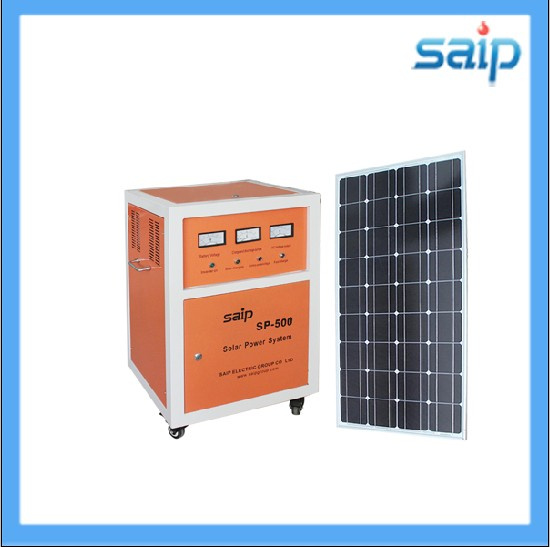

CE Approved Portable Solar Generator With Fast Charger (SP-500F)
FEATURE:
~~~~~~~~~~
1. Energy saving, environmental -friendly
2. Long life service
3. Low maintanence
4. CE&RoHS
INTRODUCTION:
~~~~~~~~~~~~~
We adopt the PV generating technology to develop and the product has the features of no pollution, no noise and maintenance-free. The AC system can provide the function of 50HZ/220V AC output to supply power for AC home appliances, besides the functions of lighting and mobile charging.
SPECIFICATION:
~~~~~~~~~~~~~~~
1. Simple structure, easy maintenance
2. Output for pure sine wave
3. Micro-computer chip controller, PWM regulator, automatic temperature compensation
4. Electronics-insurance is replaced of fuse, surge and over-current protection
5. Protection is wide, with over-voltage, under-voltage, overload, short-circuit and so on.
6. High performace, especially used at home
7. Charge function: Solar and city power
|
Model |
Product Configuration |
|
SP-500F |
Name |
Specification |
Parameter |
Quantity |
|
Solar panel |
Mono |
100W 17.5V |
2pcs |
|
Solar Dedicated Battery |
Lead-acid Battery |
12V/100AH |
2pcs |
|
Solar Control System |
Inverter |
500W Pure sine wave |
1pc |
|
Solar controller |
12V20A |
1pc |
|
Solar Panel bracket |
SP-ZJ |
2pcs |
|
Fast charger |
12V15A |
1pc |
|
Control System Case |
Portable Safety Interlock |
1set |
|
Product size |
500*430*780 |
Packing size |
540*470*920 |
|
Size of solar panel |
680*1190*35 |
Size of bracket |
670*380*50 |
|
Total weight |
150kg |
Package |
3pcs |
|
Output |
AC110 or 220V |
500VA |
1pc |
|
DC 12V |
12V/10A |
1pc |
|
Model |
Product Configuration |
|
SP-500L |
Name |
Specification |
Parameter |
Quantity |
|
Solar panel |
Mono |
80W 17.5V |
2pcs |
|
Solar Dedicated Battery |
Lead-acid Battery |
12V/120AH |
1pc |
|
Solar Control System |
Inverter |
500W Pure sine wave |
1pc |
|
Solar controller |
12V20A |
1pc |
|
Solar Panel bracket |
SP-ZJ |
2pcs |
|
|
|
|
|
Control System Case |
Portable Safety Interlock |
1set |
|
Product size |
450*380*725 |
Packing size |
490*420*865 |
|
Size of solar panel |
680*982*30 |
Size of bracket |
670*380*50 |
|
Total weight |
100kg |
Package |
3pcs |
|
Output |
AC110 or 220V |
500VA |
1pc |
|
DC 12V |
12V/10A |
1pc |
|
Model |
Product Configuration |
|
SP-500M |
Name |
Specification |
Parameter |
Quantity |
|
Solar panel |
Mono |
100W 17.5V |
2pcs |
|
Solar Dedicated Battery |
Lead-acid Battery |
12V/100AH |
2pcs |
|
Solar Control System |
Inverter |
500W Pure sine wave |
1pc |
|
Solar controller |
12V20A |
1pc |
|
Solar Panel bracket |
SP-ZJ |
2pcs |
|
|
|
|
|
Control System Case |
Portable Safety Interlock |
1set |
|
Product size |
500*430*780 |
Packing size |
540*470*920 |
|
Size of solar panel |
680*1190*35 |
Size of bracket |
670*380*50 |
|
Total weight |
150kg |
Package |
3pcs |
|
Output |
AC110 or 220V |
500VA |
1pc |
|
DC 12V |
12V/10A |
1pc |
|
Model |
Product Configuration |
|
SP-500H |
Name |
Specification |
Parameter |
Quantity |
|
Solar panel |
Mono |
100W 17.5V |
4pcs |
|
Solar Dedicated Battery |
Lead-acid Battery |
12V/100AH |
4pcs |
|
Solar Control System |
Inverter |
500W Pure sine wave |
1pc |
|
Solar controller |
12V20A |
1pc |
|
Solar Panel bracket |
SP-ZJ |
4pcs |
|
|
|
|
|
Control System Case |
Portable Safety Interlock |
1set |
|
Product size |
500*440*1040 |
Packing size |
550*490*11190 |
|
Size of solar panel |
680*1190*35 |
Size of bracket |
670*380*50 |
|
Total weight |
280kg |
Package |
3pcs |
|
Output |
AC110 or 220V |
500VA |
1pc |
|
DC 12V |
12V/10A |
1pc |
Load reference:
|
Name of Load |
Power(W) |
Quantity |
Working Time per Day (H) |
Working Days |
|
Color TV |
65W |
1 |
4 |
3 days |
|
TV Receivers |
25W |
1 |
4 |
|
LCD Computer |
100W |
1 |
2 |
|
Lamp |
11W |
2 |
3.5 |
