| Prod Model: |
TP7000DSG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 3 Phase: |
Optional |
| Cooling Method: |
Air Cooled |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Type: |
Basic Diesel Generator |
| Output Type: |
AC Single Phase |
Product Description

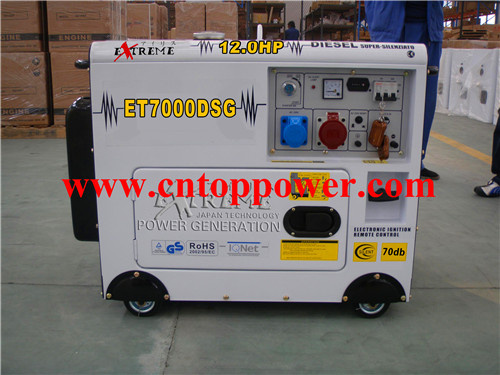

3/4/5/6kw Silent Type Diesel Generator for Home Use With remote control with two ways start？
1. Super silent 65dB at 7 meters, with National patent. (Also a normal silent model, the price is much cheaper!)
2. Perfect air passage and inside design, make inside temperature very low with stable performance.
3. Diesel Generator use good brand components, give clients reliable quality.
4. Warranty time is 1 year, could supply spare parts for every mdoel since we are manufacturing factory.
5. The main features and advantages first lie in the soundproof material and technical application.
6. They are widely adopted by families, companies and other telecommunications.
PHOTOES
General Data Sheet
Rated frequency: 50hz or 60hz
Rated voltage: 110/115/120/220/230/240v
Rated？ power: 4.5kw/3000rpm, 5.0kw/3600rpm
Max power:？5.0kw/3000rpm, 5.5kw/3600rpm
DC output(12V, 8.3A): Include
Power factor: 1.0
Phase no: single
Noise level: 65-69db(A) @7m
Voltage regulator: AVR
Engine model: TP186FAE
Displacement: 418cc
Engine type: single cylinder, 4-stroke, air cooled, direct injection, diesel engine
Start systme: Electric start
Wheels: Include
Battery: Optional
ATS: Optional
Three phase: Optional
Remote control: Optional
Digital panel: Optional
Hour counter; Optional
Fuel type: 0#(summer) -10#(winter) -35#(chiness) diesel
Lube type: CD grade or SAE 10W-30, 15W-40
Protection system: Low oil pressure alert and circuit breaker
Net weight: 100kg
Gross weight: 103kg
Overall dimension: 740*500*670mm
