| Prod Model: |
TP6500E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bearing: |
NSK |
| Alternator: |
Senci |
| Battery: |
30ah |
| Cooling Method: |
Air Cooled |
| Stroke: |
Four Stroke |
| Installation Method: |
Portable |
| Type: |
Basic Diesel Generator |
| Output Type: |
AC Single Phase |
Product Description
Product Description
5KW (5KVA) Generator/Diesel Generator (Open Type)
1, 178F, 186F, 186FA, 188F Series China Famous Diesel Engine (Air-cooled)
2, CE Approved
3, EPA approved
4, 1-Year Warranty
Engine and alternator mounted on the same frame steel skid.
Built-in damper for anti-vibration.
Small size, low weight, easy to operate, installation and maintenance.
Advanced and reliable control module: Key start, Auto start/stop
ATS as Options

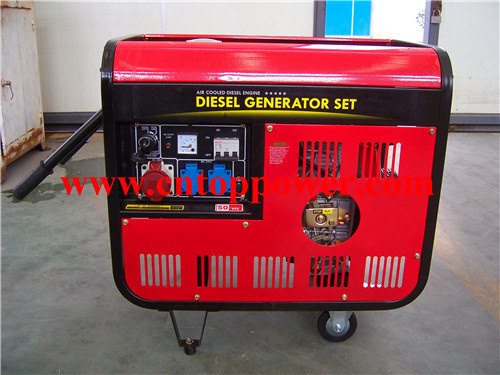

PRODUCT PHOTOES
General Data Sheet
？
Rated frequency: 50hz or 60hz
Rated voltage: 110/115/120/220/230/240v
Rated？ power: 4.5kw/3000rpm, 5.0kw/3600rpm
Max power:？5.0kw/3000rpm, 5.5kw/3600rpm
DC output(12V, 8.3A): Include
Power factor: 1.0
Phase no: single
Noise level: 75-79db(A) @7m
Voltage regulator: AVR
Engine model: TP186FAE
Displacement: 418cc
Engine type: single cylinder, 4-stroke, air cooled, direct injection, diesel engine
Start systme: Electric start
Wheels: Include
Battery: Optional
ATS: Optional
Three phase: Optional
Remote control: Optional
Digital panel: Optional
Hour counter; Optional
Fuel type: 0#(summer) -10#(winter) -35#(chiness) diesel
Lube type: CD grade or SAE 10W-30, 15W-40
Protection system: Low oil pressure alert and circuit breaker
Net weight: 100kg
Gross weight: 103kg
Overall dimension: 740*500*670mm
ABOUT US
Jiang Su Top Power Machinery Co., Ltd. is a Taiwan-funded enterprise, which is located in Zhang Zhuang Industrial Estate,Yan Cheng City, Jiangsu Province, where beautiful environment and convenient transportation.
Our company owns a production and manufacturing, design and development, sales and service team of high quality professional Talent. As one of enterprises of several years professional experience in diesel generator,water pump,diesel engine,and also gasoline products, we have a scientific reliable quality assurance systems and control capabilities. Our products have been approved by the Europe and the United States national environmental, quality and safety certification standards.
|
open tyre |
TP2500DG |
TP3500DG |
TP5500DG |
TP6500DG |
TP7500DG |
|
Rated frequency[Hz] |
50/60 |
|
Rated voltage[V] |
110/115/120/220/230/240,110/220,115/230,120/240 |
|
Rated output power[KVA] |
1.7/2.0 |
2.8/3.0 |
4.0/4.5 |
4.5/5.0 |
5.5/6.0 |
|
Max output power[KVA] |
2.0/2.3 |
3.0/3.5 |
4.5/5.0 |
5.0/5.5 |
6.0/6.5 |
|
Rated rotation speed[rpm] |
3000/3600 |
|
Power factor[cos@] |
1.0 |
|
Phase number |
Single phase |
|
Noise level[Db(A)@7m] |
74-77 |
78-83 |
|
Excitation mode |
Self-excitation brushless |
|
Engine model |
Single cylinder,4-stroke,air-cooled,direct injection, diesel engine |
|
Engine type |
170F/E |
178F/E |
186F/E |
186FA/E |
188F/E |
|
Displacement[ml(cu/in)] |
211 |
296 |
406 |
418 |
456 |
|
Compression ratio |
20:1 |
19:1 |
|
Starting system |
CL:recoil starter E:electric starter |
|
Rotation dircetion |
Clockwise |
|
Fuel |
0#(summer) or -10#(winter) -35#(chillness) diesel oil |
|
Lube |
CDgrade or SAE 10W-30,15W-40 |
|
|
Low oil pressure alert system |
With |
|
|
Overall dimension(LxWxH)[mm] |
660x480x540 |
740x500x670 |
740x500x670 |
740x500x670 |
|
Dry weight[kg] |
58 recoil 63 electric |
73 recoil 78 electric |
100 recoil 105 electric |
102 recoil 107 electric |
105 recoil 110 electric |
|
20'' container(pcs) |
164 |
164 |
101 |
101 |
101 |
|
delivery date |
15days |
Our company has always insisted on relying quality to seek survival, benefit to seek development. Use fine after-sale service to meet the needs of consumers. Honesty and credit. Products are sold well all over our country. Warmly welcome all fields of friends to visit our company and negotiate trade.
