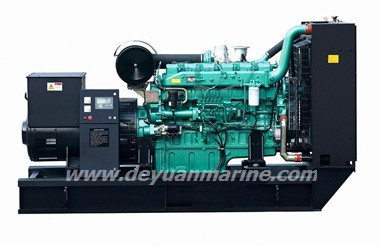

60kw Marine Generator Set (DY110205)

Name: 60kw Marine Generator Set (DY110205)
Brand: aboutgenerator.com
SKU: 727791675
Availability: InStock
Rating: 4.9 (50 reviews)

Price:	US $ 1000/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Zhuhai City Deyuan Import & Export Co., Ltd.

Showroom Product Company Profile

Prod Model:	DY110205
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CylinderBoreStroke:	6-200*210
Types:	Vertical, in-Line, Water Cooled, 4stroke
Displacement:	39.58
Type:	Self-Starting Diesel Generator
Installation Method:	Portable
Stroke:	Four Stroke
Cooling Method:	Water Cooling
Output Type:	DC

Product Description

Yuchai marine generator sets produced by Foundgenerator have the advantages of compact structure, small volume, large power reserve, stable operation, good speed control performance and high reliability.
Guangxi Yuchai machinery co. Ltd is the largest production base of internal combustion engine in China with a annual production quantity of 6 millions. The generator sets produced by our company have the advantages of compact structure, small volume, large power reserve, stable operation, good speed control performance and high reliability which are used as the conventional power supplies or standby emergency power supplies for the industrial and mining enterprises, telecommunications traffic, business hotels, offices and schools as well as the high-rise buildings or some other places.
The type characteristics of Guangxi Yuchai Diesel Generator Set.
1.Adopt the YC6B180L-D20 diesel engines produced by Yuchai as the impetus.
2. It has the advantages of compact structure, large power reserve, stable operation, good speed control performance, low fuel oil consumption, low emission, low noise, etc.
3. Each performance index can reach the requirements of GB/T2820-1997.
Marine generator set/Marine Generating Set are suitable for sea areas as draining water ship, tugboat, fishnet ship, freighter and digging-ship etc as electric power supply and can be used as Marine Main Generator set, Marine emergency Generator set or Harbor Generator set.
As to the certificates of marine generating set,will supply CCS as standard. And we also can supply ABS, BV, DNV,LRS Certificates for clients' option according to their special requirements, which can provide a reliable guarantee for your ship and equipments, FoundPower's marine power generator is one of your best choices in selecting auxiliary equipment for all kinds of ships.
EIAPP, Meet requirements of IMO for NOx Standard.

<

Genset Specification				Engine Specification				Alternator Specification		Unit Appearance
Genset Specification				Engine Specification				Alternator Specification		Unit Appearance
Model	Rated Output		Fre/Volt /	Model	Power/Speed / KW/rpm	Cyl	Fuel Consumption (l/h)	Model		Dimension LWH(mm)	Weight (kgs)
	Rated Output		Fre/Volt /					Model
	KW	KVA	Hz/V					Marathon	Sunvim
CCFJ30JW	30	37.5	50/400	YC4108C	40/1500	4	7.69	MP-H-30-4	SVH224	17807151035	750
CCFJ40JW	40	50	50/400	YC4108ZC	50/1500	4	9.88	MP-H-40-4	SVH224	18507151035	785
CCFJ50JW	50	62.5	50/400	YC6108CA	63/1500	6	12.82	MP-H-50-4	SVH224	19008601000	1300
CCFJ64JW	64	80	50/400	YC6108ZC	80/1500	6	16	MP-H-64-4	SVH274	19009601000	1300
CCFJ75JW	75	93.8	50/400	YC618ZLCA	90/1500	6	18.35	MP-H-75-4	SVH274	19009601000	1330
CCFJ90JW	90	113	50/400	YC6108ZLCB	112/1500	6	21.71	MP-H-90-4	SVH274	19989301160	1400
CCFJ100JW	100	125	50/400	YC6A170C	125/1500	6	24.12	MP-H-100-4	SVH274	20309301160	2650
CCFJ120JW	120	150	50/400	YC6M195C	145/1500	6	26.64	MP-H-120-4	SVH274	236510201420	1900
CCFJ150JW	150	188	50/400	YC6M240C	176/1500	6	33.35	MP-H-150-4	SVH274	236510201420	2000
CCFJ180JW	180	225	50/400	YC6M300C	219/1500	6	45	MP-H-180-4	SVH274	244010201420	2520
CCFJ200JW	200	250	50/400	YC6MK330C	242/1500	6	45.88	MP-H-200-4	SVH314	244010201420	2950
CCFJ220JW	220	275	50/400	YC6MK330C	242/1500	6	55	MP-H-250-4	SVH314	250010201420	2520
CCFJ250JW	250	313	50/400	YC6T375C	275/1500	6	57.35	MP-H-250-4	SVH314	283011101750	3200
CCFJ300JW	300	375	50/400	YC6T450C	330/1500	6	68.82	MP-H-300-4	SVH354	283011101750	3750
CCFJ320JW	320	400	50/400	YC6T490C	360/1500	6	73.5	MP-H-320-4	SVH354	290011101750	3750
CCFJ500JW	500	625	50/400	YC6C820L-C21	600/1500	6	97.5	MP-H-500-4	SVH404	364013002240	6350


60HZ-
Genset Specification				Engine Specification				Alternator Specification		Unit Appearance
Genset Specification				Engine Specification				Alternator Specification		Unit Appearance
Model	Rated Output		Fre/Volt /	Model	Power/Speed / KW/rpm	Cyl	Fuel Consumption (l/h)	Model		Dimension LWH(mm)	Weight (kgs)
	Rated Output		Fre/Volt /					Model
	KW	KVA	Hz/V					Marathon	Sunvim
CCFJ40JW	40	50	60/440	YC4D75C	55/1800	4	9.88	MP-H-40-4	SVH224	17807501065	790
CCFJ90JW	90	113	60/440	YC6B150C	110/1800	6	21.71	MP-H-90-4	SVH274	19407501125	1285
CCFJ100JW	100	125	60/440	YC6B150C	110/1800	6	24.12	MP-H-100-4	SVH274	19007501000	1300
CCFJ120JW	120	150	60/440	YC6A190C	140/1800	6	26.64	MP-H-120-4	SVH274	1900860*1000	1900
CCFJ150JW	150	187.5	60/440	YC6M270C	199/1800	6	33.35	MP-H-150-4	SVH274	228511221420	1960
CCFJ180JW	180	225	60/440	YC6M295C	217/1800	6	41.29	MP-H-180-4	SVH314	246511221420	2050
CCFJ200JW	200	250	60/440	YC6T390C	287/1800	6	45.88	MP-H-200-4	SVH314	293011501850	2950
CCFJ220JW	220	275	60/440	YC6T390C	287/1800	6	57.35	MP-H-220-4	SVH314	293011501850	3040
CCFJ250JW	250	313	60/440	YC6T390C	287/1800	6	58.41	MP-H-250-4	SVH314	293011501850	3050
CCFJ270JW	270	337.5	60/440	YC6T420C	309/1800	6	61.94	MP-H-300-4	SVH314	285011501850	3200
CCFJ300JW	300	375	60/440	YC6T480C	352/1800	6	68.82	MP-H-300-4	SVH314	285011501850	3280
CCFJ320JW	320	400	60/440	YC6T510C	375/1800	6	73.4	MP-H-320-4	SVH314	285011501850	3300
CCFJ350JW	500	437.5	60/440	YC6T540C	396/1800	6	80.29	MP-H-350-4	SVH354	308511501850	3500
