| Prod Model: |
GFS-64KW |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Prime Power Range: |
16kw~84kw |
| Alternator: |
Leroy Somer or Stamford |
| Instrument For Adjusting Speed: |
Electrical |
| Cylinder Amount: |
2,4,6 |
| Controller: |
Smartgen/Deepsea |
| Protection Class: |
IP22 / IP23 |
| Rated Voltage: |
127/220V; 110V/220V; 220V/380V; 240V/400V |
| Warranty: |
1 Year or 1200 Hours |
| Type: |
Basic Diesel Generator |
| Installation Method: |
Fixed |
| Stroke: |
Four Stroke |
| Cooling Method: |
Water Cooling |
| Output Type: |
AC Three Phase |
| Speed: |
1500rpm/1800rpm |
Product Description

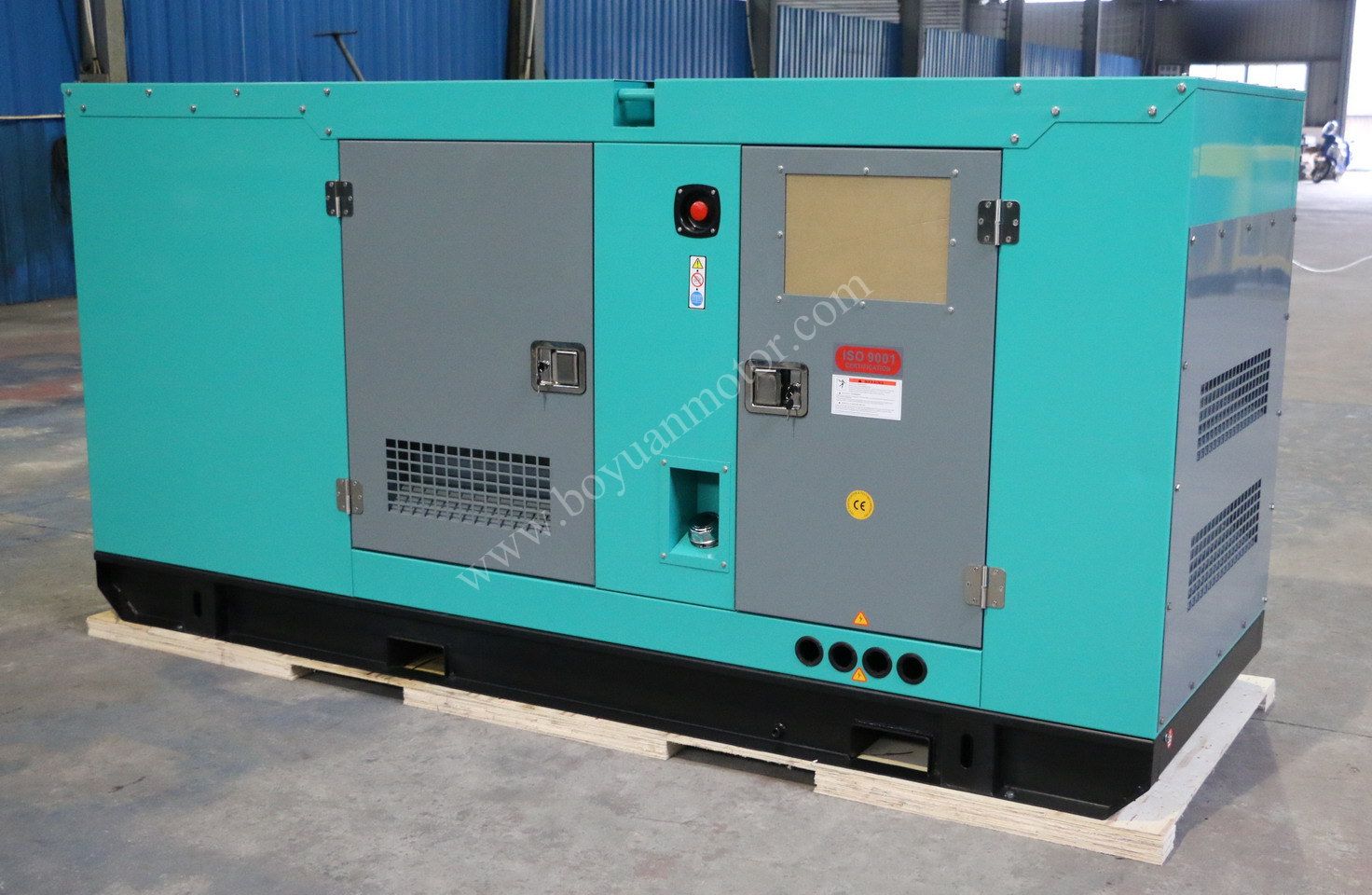

16KW~75KW Weichai Diesel Generator Set
THE SPECIFICATIONS OF THE GENERATOR SET:
1. The basic specifications: 230V/400V, 50Hz/60Hz, 0.8pf, three phase four wires.
2. Charactor: Base fuel tank for 8 hours(canbe design from 8hours to 24 hours).
3. Use: Can be used for the open type and the soundproof type, automatic type, trailer type and etc.
4. Automatic alarm system: The unit has the acousto-optics alarm system and arrestor for any Situation asthe start defeat. The water over temperature, the oil pulls down, over speed, over Load and over current.
5. Operation display:
(1)Unit voltage, three phase load current and frequency display.
(2)Wator temperature, oil pressure display.
(3)Fuel level, fuel temperature display.
(4)Audible and visual alarm lamps and buzzers.
6. Supply standard collocation:
(1)Diesel engine with all accessories, 3 filter, electrical systems.
(2)Alternator.
(3)Steel structure.
(4)Fan and water cooling system.
(5)Flange connector.
(6)12V/24vstarting motor and charge engine.
(7)Air cleaner, fuel cleaner, oil cleaner.
(8)On-board control panel.
(9)MCCB air conservation switch.
(10)12V/24V starting accumulator and battery line.
(11)Set shock absorber.
THE SPECIFICATIONS OF THE ENGINE:
1. The rated speed: 1500rpm, four-strokes, water-cooling system, up to the ISO3046 standard.
2. The rated output: From 8kw to 200kw
3. The Weichai engine model: 495D, R4105D, R4105ZD, R6105ZD, R6105ZLD, R6105AZLD, R6105IZLD, 6113ZLD.
4. The charactor of the engine:
(1)High efficiency, low exhaust, good start addiciency.
(2)24V DC start motor.
(3)Engine driven alternator.
(4)High pressure oil pump.
(5)Turbine charge.
(6)Three filter.
(7)SAE flywheel shell.
THE SPECIFICATIONS OF THE ALTERNATOR:
The world famous --first class alternator, up to the GB755, BS5000, VDE0530, IEC34_1, AS2359 standard, brushless and self-exitation, it can supply excitation in many cases:
1. STAMFORD/MARATHON/LEROY SOMER, and etc
2. Standard pitch winding can be inhibit currents interruption.
3. Insulation class: Hprotaction alass.
4. Frequency at stable state: <1.0%.
5. Telephones interference: THF<2%, TIF<50.
Technical Data:
| GNESET MODEL | 10GF | 12GF | 15GF | 20GF | 24GF | 30GF | 40GF | 50GF | 64GF | 75GF |
| Engine Model | SL2100AD | SL2100ABD | SL2110ABD | 495D | 495D | K4100D/495ZD | 4105D/4100ZD | R4105ZD | R6105ZD | R6105ZD |
| Model Information | Vertical Four-stroke direct Injection |
| 12hr rated output | 16KW | 16KW | 19.3KW | 26.5KW | 26.5KW | 36KW | 42KW | 56KW | 84KW | 84KW |
Min. Fuel Consumption | Fuel | < 246.2 | < 246.2 | < 246.2 | < 258.4 | < 258.4 | < 251.6 | < 239 | < 239 | < 224 | < 224 |
| Oil | < 2.04 | < 2.04 | < 2.04 | < 2.04 | < 2.04 | < 2.04 | < 1.63 | < 2.72 | < 2.72 | < 2.72 |
| Generator Model | STC-10 | STC-12 | STC-15 | STC-20 | STC-24 | STC-30 | STC-40 | STC-50 | TFW-64 | TFW-75 |
| Rated Voltage V | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 | 230/400 |
| Rated Current(A) | 18.1 | 21.7 | 27.1 | 36.1 | 43.3 | 54.1 | 72.2 | 90.2 | 115.2 | 135.3 |
| Exciting | Harmonic | Brushless-self-exciting |
| Hz/rpm | 50/1500 |
| Phase | 3 |
| Start Method | Electric Start |
| Cooling | Closed water cooling |
| weightkg | 460 | 480 | 680 | 710 | 750 | 900 | 1000 | 1150 | 1550 | 1850 |
| Dimension(mm) | 1700× 950× 1100 | 1850× 1030× 1100 | 2050× 1020× 1180 | 2150× 1020× 1300 | 2150× 1030× 1300 | 2300× 1030× 1330 | 2850× 1220× 1510 | 2850× 1220× 1510 |
Fuan BoYuan Power Machinery Co., Ltd ( abbreviation: BY Power), Located in Fu'an City, Fujian Province, which is famous manufacturing industrial zone in Southeast China.
BY Power is specialized in manufacturing Diesel Generating Set, brushless alternator, AC synchronous alternator, and supplying various power products, like engine parts, controllers, ATS etc.
BY Power manufactures OEM generator powered by Cummins, Deutz, Volvo, MTU, Doosan engines and Stamford, Leroy Somer, Mecc Alte alternators. BY Power Generator set ranges from 7KW to 1200KW, 50Hz or 60Hz frequency, with open type, silent type, trailer type and containerized type, etc. All products are manufactured in accordance with the ISO9001 production standard to assure them of best quality produced and accepted for export to the international market. The products are mainly exported to Middle East, Africa & Southeast Asia countries and regions.
All staffs of produce and inspection team works for the industry more than 10years. They are professional and passionate for their job.
As a brand new profession manufacturer, our advantage is professional work team, strict inspection controll system and good service.
Our Advantages:
1. Solve your technical problems in 24 hours and provide international warranty service for engines
2. Design the appearance form according to customers' request
3. Polyester varnish for appearance protecting for shining and raining
4. Two hours testing before out factory
Warranty policy
The goods are under warranty against defects in material and workmanship for a period of 12 months or 1000 hours, whichever come first from the date of delivery to the end user except the damageable spare parts of genset caused by incorrect man-made operation, and that the aforementioned warranty for the same taken is back up by the engine and alternator suppliers.
