Prod Model: |
KJ-G775M |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Frequency: |
50Hz |
Rated Voltage: |
400/230V, Various Voltage Available |
Engine: |
Ptaa1340g3 |
Alternator: |
Marathon |
Controller: |
Deepsea Dse6020 |
Optional: |
Silent / Waterproof Canopy, ATS, Parallel System |
Quality Standard: |
ISO9001.CE.Soncap |
Warranty Period: |
1 Year or 1000 Hours Running |
Type: |
Basic Diesel Generator |
Installation Method: |
Fixed |
Stroke: |
Four Stroke |
Cooling Method: |
Water Cooling |
Output Type: |
AC Three Phase |

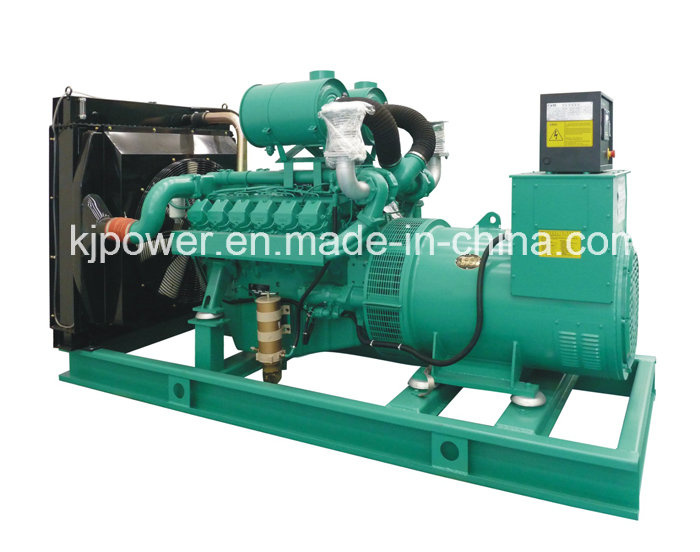

Product Description
GOOGOL Engine Characteristics- 1.12 cylinder V type engine
- 2.Turbocharged and water-to-air charging cooling system.
- 3.Exhaust ducting via single-line system (Pulse energy advanced recovery line).
- 4.Single cylinder heads with four-valve technology.
- 5.Electronic governor included in standard scope of supply.
- 6.Integrated cooling radiator or water heat exchanger system according to customer demand
- 7.Robust and fully balanced crankshaft design for a more steadily and higher strength and longer working life.
- 8.High quality alloy cast iron for rigidity performance and good stability.
- 9.Wet type cylinder liner with good cooling effect and work performance, more easy to replaced.
- 10.High pressure fuel pump with high injection pressures.
- 11.Compact dimensions design
Alternator Feature
1.Brushless, 4 poles, rotation magnet.
2.IP21-23 enclosure is standard for all industrial alternators.
3.The insulation system is Class H.
4.Simple installation and maintenance, with easy access to terminals, rotating diodes and coupling bolts.
5.Wide range of flange adaptors and single bearing disc coupling.
6.Standard 2/3 pitch windings avoid excessive neutral currents.
7.Optional accessories available for easy paralleling with mains or other generators.
8.Optional permanent magnet generator ( PMG ) system provide constant excitation under all condition.
9.AVR auto voltage regulator, auto exciter, auto adjustment.
10.Standard: BS5000, VDE0530, NEMA MG1-32, IEC34, IEC60034, AS1359.
Control SystemThe DSE6010 is an Auto Start Control Module and the DSE6020 is an Auto Mains (Utility) Failure Control Module suitable for a wide variety of single,diesel or gas,gen-set applications.Monitoring speed, frequency,voltage,current, oil pressure, coolant temperature and fuel level, the modules will display warnings,shutdown and engine status information on the back-lit LCD screen and illuminated LED. Both modules offer electronic
(CAN) and non-electronic (magnetic pick-up/alternator sensing) engine versions and offer a number of flexible inputs, outputs and engine protections. so the system can be easily adapted to suit a wide range of application demands.
Standard AccessoryCommon steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery connecting wires, Operation manual and document.Optional AccessoryCircuit breaker, Starting battery, Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Control system with RS232/485 communication interface, Battery charger by main supply. Fuel-water separator, Daily fuel tank, ATS & parallelin system, Soundproof canopy and Moving trailer.Quality Warranty PeriodAll equipment is guaranteed for a period of 1000 hours running or 12 months from the date when the generator set has been delivered from the factory.Diesel Generator Set | Model | KJ-G775M |
Prime Power(KVA/KW) | 700/560 |
Standby Power(KVA/KW) | 775/620 |
Frequency(HZ) | 50 |
Voltage(V) | 400/230 |
Diesel Engine | Model | PTAA1340G3 |
Prime Power(KW) | 605 |
Standby power(KW) | 669 |
Rated Speed(RPM) | 1500 |
Cylinders | 12-Vee Type |
Bore*Stroke(mm) | 128*142 |
Displacement(L) | 21.9 |
Compression Ratio | 15:01 |
Aspiration Type | Turbocharger,Air-air aftercooler |
Lubrication Capacity(L) | 36 |
Coolant Capacity for engine(L) | 23 |
Marathon Alternator | Model | MX-560-4 |
Power(KW) | 560 |
Altitude | ≤1000m |
Voltage(V) | 400 |
power factor | 0.8 |
Insulation grade | H |
Protection grade | IP21-IP23 |
