| Prod Model: |
AC690-1000KW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
AC690V |
| Frequency: |
50/60Hz |
| Max Load Power: |
1000kw |
| Power Factor: |
1 |
| Load Tolerance(Each Step): |
±5% |
| Load Tolerance(Overall): |
±3% |
| Display Precision: |
0.5 Class |
| Dimension: |
4200*2438*2896mm |
| Weight: |
5000kg |
| Insulation Grade: |
F Class |
Product Description

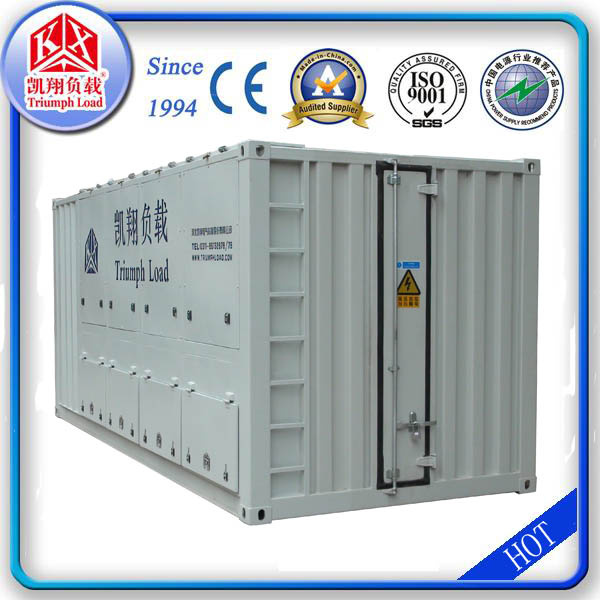

AC 690V 1000KW Containerised LoadBank for Wind Power Station
1.Product Introduction
AC 690V 1000KW Containerised LoadBank for Wind Power Station
The system can accurately test output power and load capacity with all kinds of generators, generator sets for all main electrical parameters including the dynamic parameters tested.
System monitoring and load the cabinets of two parts, with the host computer with the use of intelligent, auto-complete for all the electrical parameters of the generator set special test, while generating charts, graphs and test reports, from full manual operation. Provides a scientific means of detection equipment for the power generators.
2.AC 690V 1000KW Containerised LoadBank for Wind Power Station Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
3.AC 690V 1000KW Containerised LoadBank for Wind Power Station Technical Specifications
Technical parameter |
AC690-1000kW |
Rated voltage /Frequency |
3 Phase 4 Wire AC 690V/50Hz |
Max load power |
Resistive load: 1000kW |
Load step |
Resistive load: 10 steps; 10,20,20,50,100,100,100,200,200,200kW |
Power factor |
1 |
Load Tolerance(each step) |
±5% |
Load Tolerance(overall) |
±3% |
Display Precision |
0.5 class |
Control Power Supply |
External AC380V/50Hz 3 phase 4 wire |
Wire Connection |
Load Power Supply Input--Copper bar (star connection)
Control power supply input--Connector bar |
Insulation grade |
F class |
Duty cycle |
Continuous |
Cooling |
Forced air cooling, Horizontal inlet air, Upward cooling |
Transportation |
Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Casing Color |
Grey(RAL7035) |
Dimension |
About 4200 mm*2438mm*2896mm(length*width*height) |
Weight |
About 5000kg |
Operating Environment Parameter |
Ambient Temperature |
-10ºC~+50ºC |
Relative Humidity |
≤95% |
Altitude |
≤2500 meters |
Atmospheric Pressure |
86~106kPa |
Main components brand |
Contactor |
Schneider |
Circuit Breaker |
Siemens |
Fuse |
Delixi |
SCM |
Infineon |
Alloy Resistor |
Kaixiang |
Data Management Software |
Kaixiang |
4.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
