| Prod Model: |
AC380V-5000KVA-RL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
AC380V |
| Frequency: |
50Hz/60Hz |
| Apparent Power: |
5000kVA |
| Resistive Load: |
4000kw |
| Inductive Load: |
3000kvar |
| Insulation Grade: |
F Class |
Product Description
AC High Power Load Bank for Generator Testing
1.Product Introduction

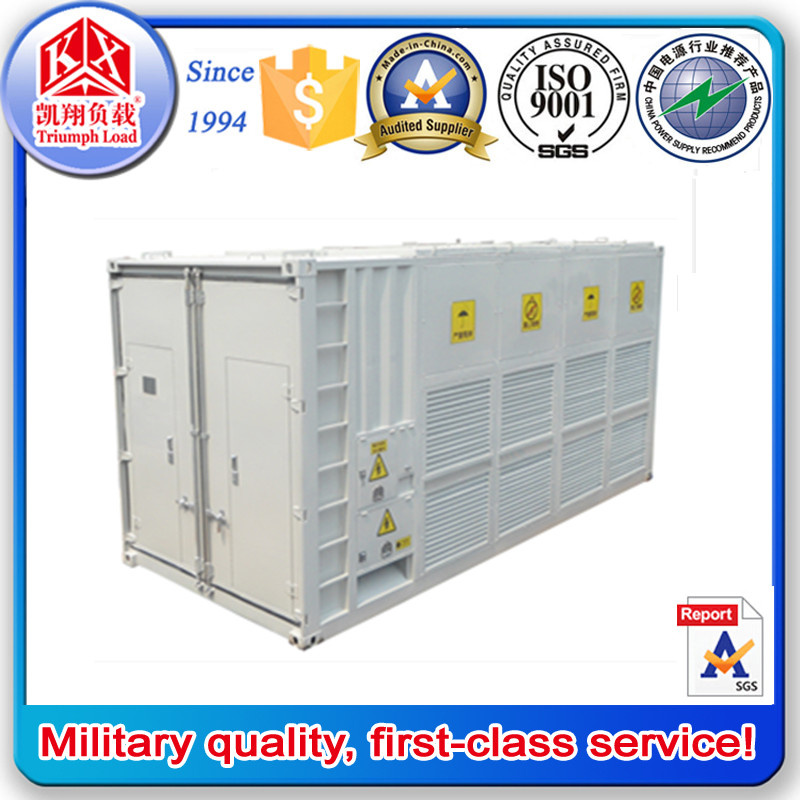

AC 380V 5000KVA High Power Load Bank for Generator Testing
AC High Power Load Bank for Generator Testing is composed of outdoor resistor-inductance AC load bank,data
collection system,electric control module,thermal module,control part etc.It can accurately detect Marine generator
output power and load capacity,and assist shipyard in acceptance of vessel,mooring test,sea trial,load test,static voltage
characteristic test, speed characteristic test,overload protection test,reverse power and reverse current protection test,
and parallel operation test etc.
AC 380V 5000KVA High Power Load Bank for Generator Testin Application
Large generator system testing in ocean engineering, drilling facilities,ship construction etc field
Factory testing for generator, static voltage characteristic test, speed characteristic test;
Marine generator overload protection test,parallel operation test,reverse power and reverse current protection test
Assist shipyard in mooring test,sea trial test
Assist with the acceptance of the vessel generator test
Eliminate the carbon deposition of generator
As the generator loading system
Periodic running test for standby generator
UPS inspection and maintenance
Ship battery charging/discharging system testing
The acceptance of new system and testing of servicing equipment
2.AC 380V 5000KVA High Power Load Bank for Generator Testing Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
3.AC 380V 5000KVA High Power Load Bank for Generator Testing Technical Specifications
Load Bank Parameters |
Rated Voltage |
3 phase 3 wire 380V |
Power |
5000kVA |
Power Consist |
Resistor: 4000kW Inductive:3000kvar |
Steps |
12 steps(resistive and inductive is corresponding) |
Accuracy |
< ±2%RD |
IP |
IP55 (storage and transport) |
Transformer Parameters |
Capacity |
5000kVA(2×2500kVA) |
Frequency |
60Hz/50Hz |
Transformer Voltage |
10500V/6300V/4160V/3300V/400V |
Transformer |
3 phase |
Cooled |
AN/AF |
Current Density |
2.5~3.6A/mm2 |
Resistor Warming |
Allow average temperature rise 80K |
Insulation Class |
F Class |
Unload Current |
≤0.7% |
Insulation |
LI75AC28/AC3 |
Excitation Regulate Voltage |
No |
Connect Tranches |
Dyn11 |
Short Impedance |
≤8% |
Loss(no load and load) |
No load loss 5000W,Load loss 20000W |
Overall Demand of Machine |
Capacity |
5000kVA |
Frequency |
50Hz/60Hz |
PF |
0.1~1 |
Insulation Class |
≥F class |
Cooling |
Air cooled |
Accuracy of Indicating Instrument |
Above 1.0 class |
Dimension |
20ft(6058mm×2438mm×2591mm) |
Single weight |
≤23000kg |
Environment |
-20ºC~50ºC |
Working Type |
Continue work in all-weather, normal operate under the rain, snow, frog and seaside air conditions. |
External Power |
3 phase 3 wire or 3 phase 5 wire, 380VAC |
