| Prod Model: |
S1206 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Saip |
| Power: |
12W |
| Battery Capacity: |
4ah |
| Usage: |
for Home |
| Service: |
OEM, ODM |
| System: |
Utility Grid Connect system |
Product Description

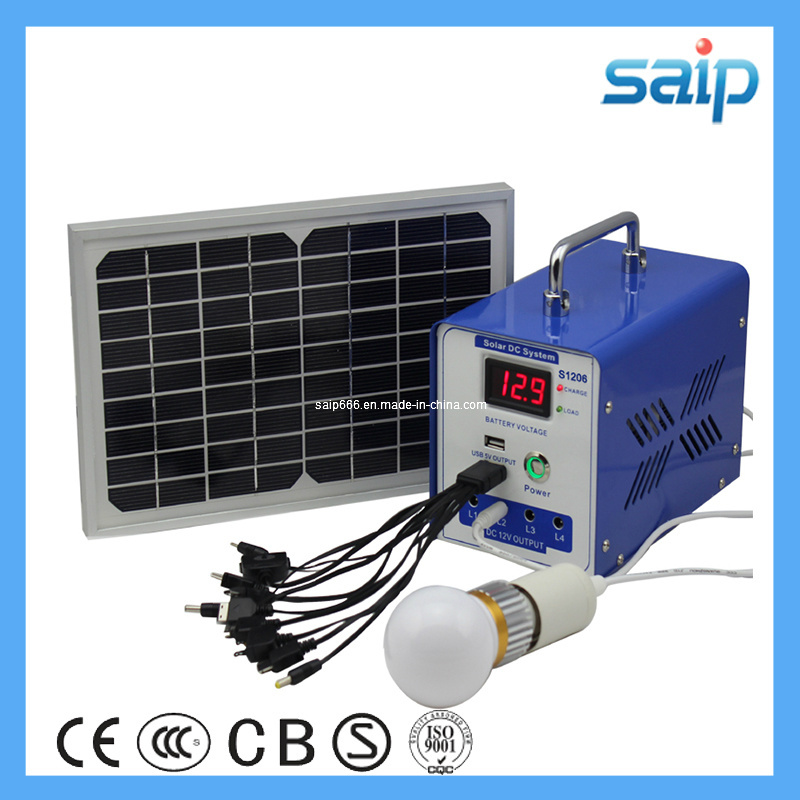

Best Price Hot Home Solar System Mini Solar System (S1206)
1. Feature:
1.1 Portable.
1.2. For home or camping use.
1.3. Short delivery.
1.4. OEM service.
1.5. Market pioneer of portable solar generat or for home use.
2. Technical datas:
Model S1206
Battery Capacity; 4AH
Rated Charging Current1ARated Discharge Current: 2A
Rated Working Voltage: 12V
Solar Panel Voltage≤ 25
Floating Charge Voltage14V
No-load Loss≤ 8mA
Low Voltage Disconnecting Point10.5V
Low Voltage Reconnecting Point11.5V
USB Port Current≤ 500mAHumidity Requirement-15° C-40° C
Working Temperature-10° C-50°
CStorage Temperature≤ 90%
No Condensation
3. Other parameter recommendation:
ModelS1207
Battery Capacity: 7AH
Rated Charging Current: 2A
Rated Discharge Current: 2A
Rated Working Voltage: 12V
Solar Panel Voltage≤ 25
Floating Charge Voltage14VNo-load Loss≤ 8mA
Low Voltage Disconnecting Point 10.5V
Low Voltage Reconnecting Point11.5V
USB Port Current≤ 500mAHumidity Requirement-15° C-40° C
Working Temperature-10° C-50° CStorage Temperature≤ 90%, No Condensation
Model S1217
Battery Capacity7AH
Rated Charging Current2ARated Discharge Current2A
Rated Working Voltage12V
Solar Panel Voltage≤ 25
Floating Charge Voltage14V
No-load Loss≤ 8mA
Low Voltage Disconnecting Point10.5V
Low Voltage Reconnecting Point11.5V
USB Port Current≤ 500mAHumidity Requirement-15~40° C
Working Temperature-10~50° CStorage
Temperature≤ 90%,
No condensation
Model S1224H
Battery Capacity: 24AH
Rated Charging Current2ARated Discharging Current: 2A
Rated Working Voltage12V
Solar Panel Voltage≤ 25V
Floating Charge Voltage14V
No-load Loss≤ 8mA
Low Voltage Disconnecting Point10.5V
Low Voltage Reconnecting Point11.5V
USB Point Current≤ 500mA
Humidity Requirement-15 to 40
Working Temperature-10 to 50
Storage Temperature≤ 90%, No Condensation
Solar Panel Wire Length5MLoad Wire Length4M
Dimension250mm*153mm*206mm
4. About us:
Principle------To creat products that deliver happiness to everybody.
China Saip Group, located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China". Saip, an ISO9001 certificated enterprise with 20 years development history.
Gree Wu
Tel: 86-577-61770759
Fax: 86-577-61760731
http://www.saipgroup.com
|
MODEL |
SP-300F |
SP-500F |
|
Part |
size(L*W*Hmm) |
Weight(kg) |
size(L*W*Hmm) |
Weight(kg) |
|
Power Box |
450*380*655 |
68 |
450*380*655 |
73 |
|
Solar Panel |
850*610*60 |
6.5 |
1200*850*45 |
12 |
|
Solar Panel Bracket |
825*760*55 |
9.2 |
1460*85*75 |
13 |
|
Battery |
406*174*208 |
37 |
406*174*208 |
43 |
|
SP-1000 S |
|
Capacity |
1000VA |
|
System voltage |
48VDC |
|
Inverter |
Output wave |
Pure sine wave |
|
Output voltage |
DC12V,AC110/220V |
|
Output frequency |
50HZ/60HZ |
|
Output current |
1.09A(220V) / 2.18A(110V) |
|
Solar panel |
Pmax |
400W |
|
Vmp |
70V |
|
Imp |
5.7A |
|
Charger |
Charger voltage & current |
24V10A |
|
Battery |
Capacity |
48V120AH |
|
Package data: |
|
Part |
Size (L*W*H mm) |
Weight (kg) |
20' (pcs) |
40' (pcs) |
|
Power box |
500*430*700 |
81 |
55 |
130 |
|
Solar panel |
1200*850*45 |
12 |
|
Solar panel bracket |
1460*85*75 |
13 |
|
Battery |
535*500*255 |
113 |
Load reference:
|
Name of Load |
Power(W) |
Quantity |
Working Time per Day (H) |
Working Days |
|
Color TV |
65W |
1 |
4 |
3 days |
|
TV Receivers |
25W |
1 |
4 |
|
LCD Computer |
100W |
1 |
2 |
|
Lamp |
11W |
2 |
3.5 |
|
Model |
SP-2000L |
SP-2000H |
|
System |
Capacity |
2000VA |
2000VA |
|
System voltage |
110VDC |
110VDC |
|
Best output power everyday |
3378WH |
6756WH |
|
Inverter |
Output wave |
Pure sine wave |
|
Output voltage |
AC110/220V |
|
Output frequency |
50HZ/60HZ |
|
Output current |
7.2A(220V) / 14.5A(110V) |
|
Precision of output voltage |
±3% |
|
Precision of output frequency |
±0.1% |
|
False output wave of AC |
<3% |
|
Overload ability |
120%, 30 seconds |
|
Invert efficiency |
>85% |
|
Solar panel |
Pmax |
900W |
1800W |
|
Vmp |
157.5V |
157.5V |
|
Imp |
5.7A |
11.4A |
|
Battery |
Capacity |
108V100AH |
108V200AH |
Yueqing Saibang Electric Co., Ltd. is a subordinate of saip electric group company limited, which is wholly invested by our group company. Depending on our group company's advanced technology and equipment introduced form developed countries, we have tremendous technical capabilities. Buondi mainly develops and produces new source products, including Solar Generator, Solar charge controller, Wind Generator, Solar Inverter, Solar tracking systems and so on.
