Frequency:
50Hz, 60Hz for Option
Rated Voltage:
400/230V, Various Voltage Available
Alternator:
Kaijie, Marathon, Stamford
Controller:
Smartgen, Deepsea
Function Option:
ATS, Amf, Parallel System
Generator Type:

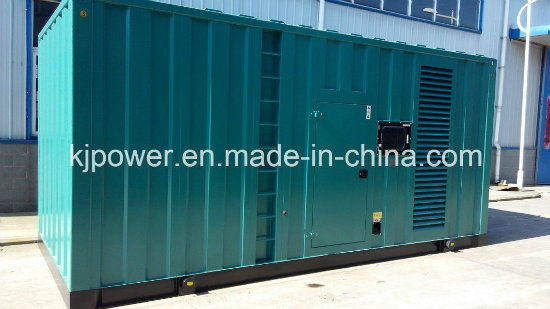

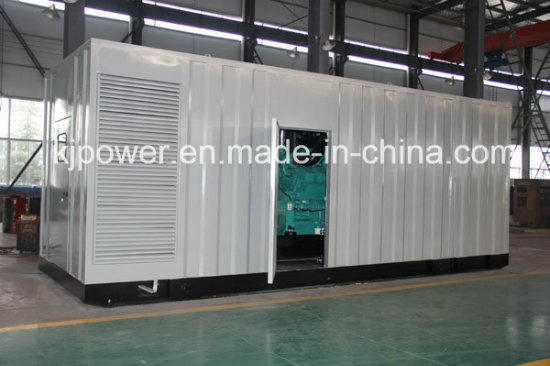

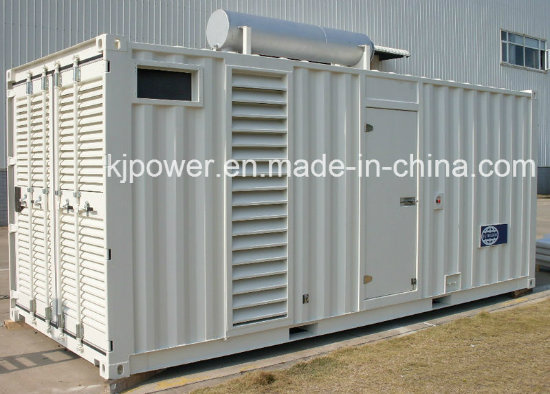

Open Type/Silent Type /Container Type/Trailer Type
Quality Standard:
ISO9001.CE.Soncap.Saso
Production Leading Time:
20 to 30 Working Days
Type:
Basic Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Product Description

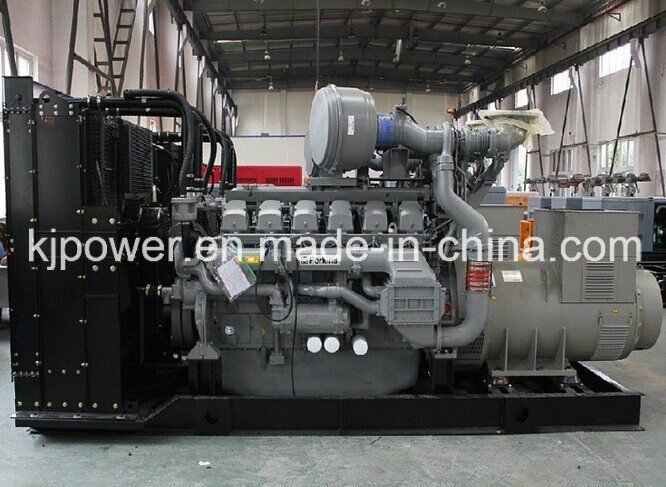

Product Description-1850kva Perkins power diesel generator with CE ISO
1.Power by Perkins Engine 2.With Stamford / Leroy Somer / Marathon Alternator 3. With CHINT / ABB MCCB & Electronic Components 4. Electric Start with Battery 5. Base Integrated Fuel Tank 6. ATS, Deepsea / ComAp / Smartgen Controller 7. Comply with ISO9001/CE 8. After-sale Services
Control Systems
Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
LED Automatic Control Panelis a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.
AMF Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator set.
ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically; While main power resumes balanced, it controls the generator set to shut down after cooled.
Engine *Heavy duty diesel engine *Four stroke, water cooled *12V and 24V stater and charge alternator *Cooling radiator and fan *Maintenance free battery including ract and cable *Flexible fuel connection hoses and manual oil sump drain valve *Exhaust silencer Alternator *Brushless, single bearing, flexible disc *Insulation class: H *Protection class: IP23 *Self-exciting and Self-regulation Canopy *All canopy designed with modular principles *All metal canopy parts painted by electrostatic polyester power paint *Soundproof design ensure that the noise level be controlled in small scope *Convenient to lift and move *Easy to maintenance and operate
Base Frame *Base frame including position for forklift and crane *Integral fuel tank *Daily fuel tank continuously supply for 8-24 hours *Fuel tank easy to maintain and clean *Anti-vibration pads are flexed between engine and alternator.
Control System *Control, monitor and protect the Generator Set including: *High water temperature *Low oil pressure *Over and under speed *Over current *Under/Over generator voltage *Start and stop failure *Low and high battery voltage *Charge fail *Emergency stop
DIESEL GENERATOR SET
Diesel GenSet Model
KJ-P1875
Prime power (KW/KVA)
1480/1850
Standby power (KW/KVA)
1600/2000
Rated voltage(V)
230/400
Rated current (A)
2664
Frequency(Hz)
50
Rated Rotary Speed (RPM)
1500
Power factor
0.8
Power supply mode
3 phase,4wire
Starting method
24 V DC
ENGINE
Diesel Engine
Perkins
Model
4016TAG1A
Engine prime power (KW/KVA)
1537/1921
Engine standby power(KW/KVA)
1690/2112
Cylinder Qty.
16
Fuel consumption.(L/ h)
205
Bore(mm) *Stroke (mm)
160*190
Compression rate
13.6:1
Cooling liquid volume (L)
316
Displacement(L)
61.123
Lubricant capacity (L)
237.2
Cooling method
Water cooled
Intake method
Turbocharged
ALTERNATOR
Alternator Features: 1. Kaijie,ENGGA,Stamford, Leroy Somer, Marathon 2. Brushless, 4 poles, rotation magnet 3. IP21-23(NEMA1) enclose is standard for all industrial alternators 4. H class insulation system 5. AVR self-regulated, voltage regulation rate: ≤±1% 6. Simple installation and maintenance with easy access to terminals, rotating diodes and coupling bolts 7. Wide range of flange adapters and single bearing disc coupling 8. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528 9. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof
