Brotie Psa Nitrogen Generator for Petrol Chemical

Name: Brotie Psa Nitrogen Generator for Petrol Chemical
Brand: aboutgenerator.com
SKU: 668769432
Availability: InStock
Rating: 4.4 (80 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Brotie Technology Company Limited

Showroom Product Company Profile

Prod Model:	BR-A, B, C, D, E, F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	1-5000nm3/H
Purity:	90%-99.999%
Pressure:	0.1-8bar
Highest Pressure After Booster:	200bar
PLC:	Siemens
Touch Screen:	Siemens
Control System:	Automatic Bro-Control
Manufacturing Time:	30days
Gas Source:	Gas

Product Description

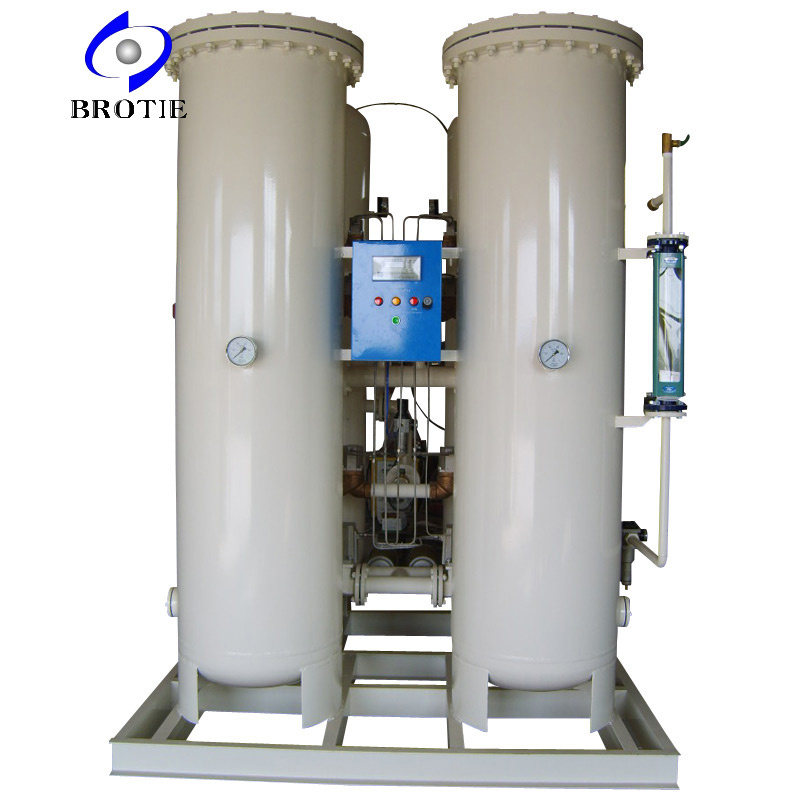

BROTIE PSA Nitrogen Generator

Principles:

Customized PSA nitrogen generator, purity from 95%-99.999% with no purification system, capacity from 1Nm3/h-5000Nm3/h, pressure from 0.1bar to 200bar, uses carbon molecular sieve as sorbent, produces nitrogen by making use of the PSA principle. Professional energy saving design provided with each of BROTIE nitrogen generator system, low air consumption means more economical for customers.

The BRO-CONTROL system is provided, all the parameters can be read and the operation can be actualized by one touch only. Alarming system can work automatically when the purity, the capacity and pressure is lower than required, it means more reliable and more humanistic for customers.

Applications:

Foodstuff: For food packing, beer, vegetable, fruit and other foodstuff fresh keeping, foodstuff's traffic.

Capacity (Nm 3 /h)	Purity (%)	Model	Construction	Dimensions (mm)	Inlet& Outlet	Weight (Kg)
Capacity (Nm 3 /h)	Purity (%)	Model	Construction	Dimensions (mm)	Inlet& Outlet	Weight (Kg)
5	95	CA-A-5	Four towers	5704501300	G1/4; G1/4	253
	99	CA-B-5	Four towers	5804601450	G1/4; G1/4	295
	99.5	CA-C-5	Four towers	10009001200	DN20; G1/2"	370
	99.9	CA-D-5	Four towers	10009001500	DN20; G1/2"	431
	99.99	CA-E-5	Four towers	120011001350	DN20; G1/2"	535
	99.99	CA-E-5	Four towers	110010501400	DN20; G1/2"	493
	99.999	CA-F-5	Four towers	130012001700	DN25; G1/2"	698
	99.999	CA-F-5	Two towers	11006001600	DN25; G1/2"	510
10	95	CA-A-10	Four towers	10009001400	DN20; G1/2"	414
	99	CA-B-10	Four towers	110010501400	DN20; G1/2"	485
	99.5	CA-C-10	Four towers	110010501650	DN20; G1/2"	510
	99.9	CA-D-10	Four towers	120011501850	DN20; G1/2"	624
	99.9		Two towers	11006001600	DN20; G1/2"	451
	99.99	CA-E-10	Four towers	140013001600	DN25; G1/2"	788
			Two towers	12006501410	DN25; G1/2"	565
			Four towers	130012501600	DN25; G1/2"	762
			Two towers	12006501400	DN25; G1/2"	552
	99.999	CA-F-10	Four towers	150014001850	DN25; G1/2"	1098
	99.999	CA-F-10	Two towers	13007001850	DN25; G1/2"	838
15	95	CA-A-15	Four towers	10009001550	DN20; G1/2"	426
	99	CA-B-15	Four towers	110010501580	DN20; G1/2"	534
	99.5	CA-C-15	Four towers	110010501680	DN20; G1/2"	550
	99.9	CA-D-15	Four towers	130012001700	DN25; G1/2"	666
	99.9		Two towers	12006001500	DN25; G1/2"	468
	99.99	CA-E-15	Four towers	150014001650	DN25; G1/2"	991
			Two towers	13007501550	DN25; G1/2"	711
			Four towers	140013001700	DN25; G1/2"	882
			Two towers	12006501700	DN25; G1/2"	650
	99.999	CA-F-15	Four towers	170015502050	DN40; G1/2"	1349
			Two towers	14007501960	DN40; G1/2"	935
			Four towers	190017502150	DN40; G1/2"	1860
			Two towers	17508502150	DN40; G1/2"	1341
20	95	CA-A-20	Four towers	110010501400	DN20; G1/2"	498
	99	CA-B-20	Four towers	120011501550	DN20; G1/2"	597
	99.5	CA-C-20	Four towers	120011501600	DN20; G1/2"	611
	99.5		Two towers	11006001600	DN20; G1/2"	435
	99.9	CA-D-20	Four towers	140013001650	DN25; G1/2"	845
	99.9		Two towers	13006501600	DN25; G1/2"	621
	99.99	CA-E-20	Four towers	150014002050	DN40; G1/2"	1192
			Two towers	13007001950	DN40; G1/2"	848
			Four towers	150014001800	DN25; G1/2"	1059
			Two towers	13007001700	DN25; G1/2"	780
	99.999	CA-F-20	Four towers	180016502100	DN40; G1/2"	1582
			Two towers	15508002100	DN40; G1/2"	1119
			Four towers	210019502160	DN40; G1/2"	2320
			Two towers	18009502160	DN40; G1/2"	1714
25	95	CA-A-25	Four towers	110010501680	DN25; G1/2"	558
	99	CA-B-25	Four towers	130012001650	DN25; G1/2"	675
	99		Two towers	11006001650	DN25; G1/2"	475
	99.5	CA-C-25	Four towers	130012001700	DN25; G1/2"	687
			Two towers	11006001700	DN25; G1/2"	478
	99.9	CA-D-25	Four towers	140013001850	DN25; G1/2"	930
	99.9		Two towers	12006001820	DN25; G1/2"	645
	99.99	CA-E-25	Four towers	160015002050	DN40; G1/2"	1323
			Two towers	14507501800	DN40; G1/2"	932
			Four towers	150014002050	DN40; G1/2"	1217
			Two towers	13007001950	DN40; G1/2"	857
	99.999	CA-F-25	Four towers	190017502170	DN40; G1/2"	1876
			Two towers	16008502170	DN40; G1/2"	1336
			Four towers	220020002460	DN40; G1/2"	2703
			Two towers	18009502060	DN40; G1/2"	1992
30	95	CA-A-30	Four towers	120011501600	DN25; G1/2"	627
	95		Two towers	11006001450	DN25; G1/2"	426
	99	CA-B-30	Four towers	140013001500	DN25; G1/2"	772
	99		Two towers	12006501400	DN25; G1/2"	543
	99.5	CA-C-30	Four towers	140013101550	DN25; G1/2"	813
	99.5		Two towers	12006501450	DN25; G1/2"	567
	99.9	CA-D-30	Four towers	150014001700	DN40; G1/2"	1049
	99.9		Two towers	13007001600	DN40; G1/2"	751
	99.99	CA-E-30	Four towers	180016502000	DN40; G1/2"	1498
			Two towers	15008001900	DN40; G1/2"	751
			Four towers	170015501980	DN40; G1/2"	1367
			Two towers	14007501980	DN40; G1/2"	951
	99.999	CA-F-30	Four towers	200018502120	DN50; G1"	2099
			Two towers	17509002110	DN50; G1"	1525
			Four towers	230021002550	DN40; G1"	3090
			Two towers	190010502550	DN40; G1"	2275
40	95	CA-A-40	Four towers	130012001750	DN40; G1"	743
	95		Two towers	11006001700	DN40; G1"	502
	99	CA-B-40	Four towers	140013001900	DN40; G1"	968
	99		Two towers	12006501800	DN40; G1"	671
	99.5	CA-C-40	Four towers	140013001900	DN40; G1"	985
	99.5		Two towers	12006501800	DN40; G1"	685
	99.9	CA-D-40	Four towers	170015501850	DN40; G1"	1242
	99.9		Two towers	14007501750	DN40; G1"	868
	99.99	CA-E-40	Four towers	190017502100	DN40; G1"	1842
			Two towers	16508502100	DN40; G1"	1323
			Four towers	180016502100	DN40; G1"	1672
			Two towers	15508002100	DN40; G1"	1178
	99.999	CA-F-40	Four towers	220020002400	DN50; G1"	2543
			Two towers	18009502400	DN50; G1"	1920
			Four towers	250023002650	DN40; G1"	3889
			Two towers	210011502650	DN40; G1"	2945
50	95	CA-A-50	Four towers	140013001650	DN40; G1"	881
	95		Two towers	12006501550	DN40; G1"	617
	99	CA-B-50	Four towers	150014001850	DN40; G1"	1115
	99		Two towers	13007001800	DN40; G1"	790
	99.5	CA-C-50	Four towers	150014001900	DN40; G1"	1139
	99.5		Two towers	13007001750	DN40; G1"	806
	99.9	CA-D-50	Four towers	175016001850	DN40; G1"	1418
	99.9		Two towers	15008001750	DN40; G1"	1012
	99.99	CA-E-50	Four towers	200018502150	DN50; G1"	2133
			Two towers	17509002100	DN50; G1"	1557
			Four towers	190017502170	DN40; G1"	1901
			Two towers	16008502170	DN40; G1"	1366
	99.999	CA-F-50	Four towers	240022002350	DN50; G1"	2679
			Two towers	200011002350	DN50; G1"	2045
			Four towers	270024502900	DN50; G1"	4415
			Two towers	220012002900	DN50; G1"	3288

Registered in Beijing, BROTIE is specialized in air separation solutions, gas boosting solutions, gas analyzing and related industrial gas solutions. Our products include PSA nitrogen generators, PSA oxygen generators, totally oil-free gas compressors, gas analyzers and related equipments.

So far, BROTIE has extended its business scope from simple gas equipment to gas supply so as to provide particular product, technical consultations and solutions for global users in gas and gas equipment field. Owing to our self-motivated passion in researching and developing gas technologies with the cooperation of some professional researching institutes, our prompt and customer-oriented services have reached many countries over the world. You can find BROTIE in United States, Russia, Kazakstan, Tajikistan, Turkey, Philippines, Korea, Bolivia, Brazil, Colombia, Czech, Germany, Kenya, Korea, Turkey, India, Palestine, Senegal, Singapore, Indonesia, Iran, Saudi Arabia, Austrilia, Cyprus, Netherland, Thailand, Sudan, Surname, Ecuador and so on.

With the strategic location of BROTIE, we have got continuous development of technologies and more than 20 long-term partner suppliers located in China such as Siemens, Kobelco, Atlas Copco, Domnick Hunter, Mitsubishi, CKD and SMC. So, BROTIE is able to be one of the best air separation solution manufacturers and one of the most comprehensive Chinese industrial source solution providers for customers at every corner of the world.

Understanding that every application, location and every customer's demand is unique, BROTIE experienced engineers work closely with the customer to analyze the special requirements and the working conditions to provide gas generation systems which meet the specifications of flow, purity and pressure, and customize the system to meet every special requirement.

We believe in that the never stop improvement of ourselves and the support from the cooperators, professional, technical on-top and service concept, BROTIE is continuously supplying more and more professional solutions of on-site gas generation for customers.
