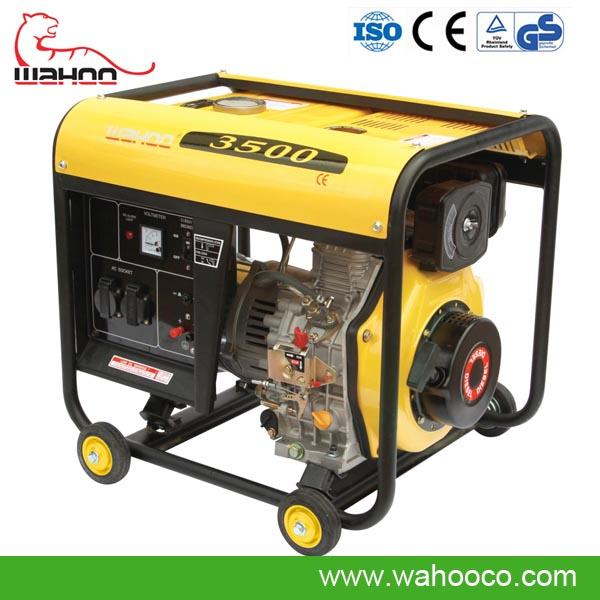

CE Approved 3kw Small Diesel Generator (WH3500DG)

Name: CE Approved 3kw Small Diesel Generator (WH3500DG)
Brand: aboutgenerator.com
SKU: 609514775
Availability: InStock
Rating: 5 (22 reviews)

Price:	US $ 310-350/Piece
Trade Terms:	FOB,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Zhejiang Wanhao Machine Science and Technology Co., Ltd.

Showroom Product Company Profile

Prod Model:	WH3500DG
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Output:	2.8kw
Type:	Basic Diesel Generator
Installation Method:	Fixed
Stroke:	Four Stroke
Cooling Method:	Air Cooled
Output Type:	AC Single Phase

Product Description

Warranty:16 months

MOQ:100 sets

Delivery time:20-25days after received deposit

The quotation show as picture are common supplied,we can supply as per your specific requests.

Port of Shipment: NingBo, China

Terms of Payment:1. 30% T.T deposit in advance,the balance payment before delivery 2. L/C At Sight

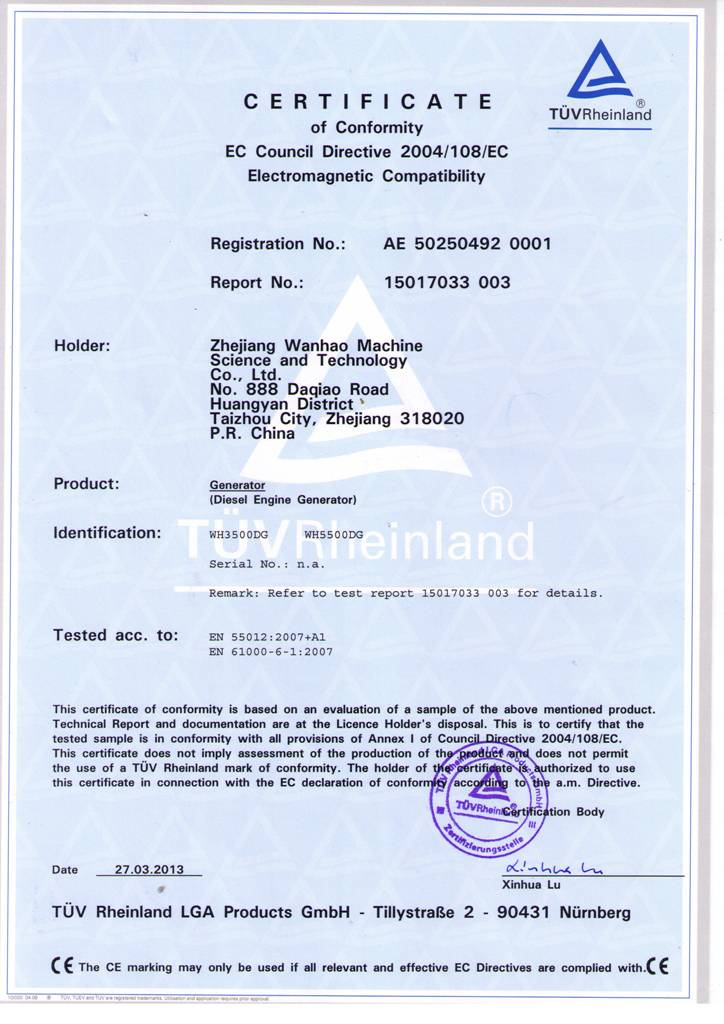

CE certificate

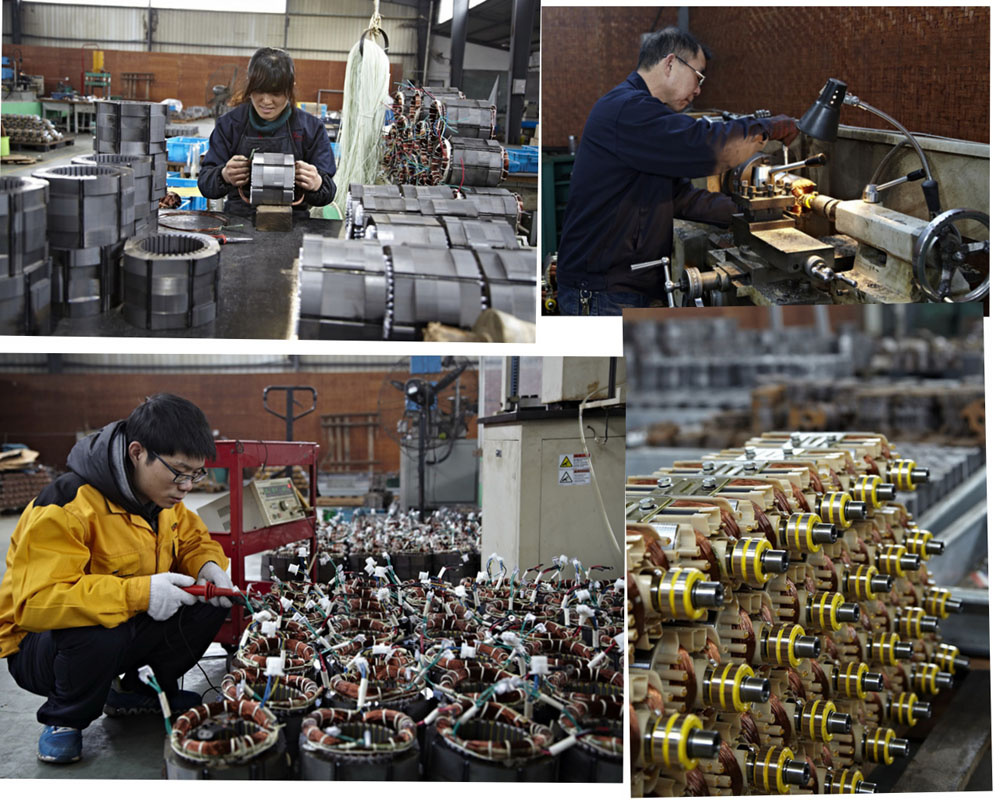

Workshop

Canton fair booth

3kw Diesel Generator Specification
Rated frequency (Hz):	50
Rated voltage (V):	230V
Rated output power (kW):	2.8kw
Max output power (kW):	3.0kw
Rated rotation speed (rpm):	3000
DC output:	12V 8A
Fuel type:	Diesel
Phase number :	Single phase
Noise level dB (A)/7m (zero load-full load):	81
Fule tank capacity[L]:	12.5
Fuel consumption(g/kw.h):	282
Continues running hour on full tank(h):	12
Overall dimensions [mm] ( L x W x H ):	660500580
N.W/G.W[Kg]:	75/78
Engine model:	WD178
Displacement [cc]:	296
Rated rotation speed (rpm):	3000
Starting system:	Recoil starter or electric starter
N.W/G.W(kg):	75/78
Overall dimension(L×W×H)(mm):	660500580

Patented Motor Designs

We are one of the few companies in mainland China that has patents on its motor designs. That means you won' T have problems with IP protection laws when you source our power generators, water pumps, pressure washers and other motor-driven items, even in strict regions such as North America and Europe.

Wanhao has won over many customers around the world because we offer competitive prices and are dedicated to craftsmanship and quality. Some of our valued customers include Home Depot, GMC, Electrolux and TTi. We have EPA 2005 Motor Year Certification and CE certification.

A Variety of Production Capabilities

Our company designs and manufactures general purpose gasoline engines from 2.6HP to 13.5HP, gasoline generators from 1kW to 6kW, water pumps from 1.5 inches to 4 inches, and pressure washers at 1800PSI, 2500PSI and 2700PSI.

Emphasis on Quality Control

Much of Wanhao' S success is due to our extensive Quality Control Department. Our 30 QC staff carefully perform inspections at every stage of production, from the time we receive raw materials to packaging. Noise, power, and stability are tested to ensure that our engines can endure 580 hours of constant use. Our management system is approved under ISO 9001: 2000, and we have CE product approval.

Service

We' Ll print custom logos and product documentation in your language, and provide spare parts for easily worn down components. We also can design and deliver OEM/ODM samples in one month. You can discuss your requirements with our English-speaking staff.
