China Supplier 400W Solar Wind Hybrid System

Prod Model:	300W 400W 600W 800W 1200W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	China Product Wind Solar Hybrid System
Blades:	5 PCS Nylon Fiber Glass
Body:	Cast Aluminum
Mount:	Flange Connection
Certificate:	ISO9001:2008 ,CE, RoHS
Warranty:	3 Year Limited Warranty
Overspeed Protection:	Electromagnetic & Blade Aerodynamic Braking
Rotating Shaft:	Horizontal
Stress Way Of Blade:	Resistance
Number Of Blade:	Multiple-Blade
Phase:	Three Phases
Power:	300W to 1200W

Product Description

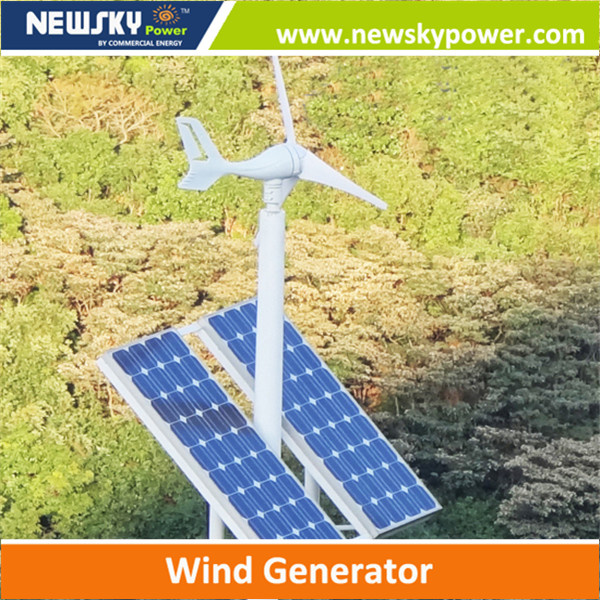

                                      China supplier 400W solar wind hybrid system

Features:
1.Bearing from "SKF" Sweden.
2.Stainless steel screw bolt from "THE".
3.Primary aluminum housing, not secondary aluminum.
4. Low start-up wind speed.
5.High-efficient Generator
6.Innovative Noise Reduction Technology
7.Perfect Wind Wheel System
8.Unique Design Of The Rudder
9. Damp-proof, sand-proof, Anti-rust, Anticorrosion
10 .Easy installation, Free of maintenance, Long lifespan over 15years.

Specification:

Model	Mini300W-3	Mini300W-5
Rated power	300 watts at 11 m/s
Max Capacity	350watts
Voltage	12, 24 VDC
Blades	3 Pcs Nylon Fiber	5 Pcs Nylon Fiber
Start-Up Wind Speed	2.0 ( m/s)	1.5 ( m/s)
Cut-In Wind Speed	2.5(m/s)	2.0(m.s)
Rotor Diameter	1.16 m	1.21m
Weight	6.2 kg	7.1 kg
Shipping Dimensions	790x 430x 220 mm (8 kg)	790x 430x 220 mm ( 9.3 kg)
Mount	1.9 inch (48 mm) OD pipe
Turbine Controller (Optional)	Maximum Power Point Tracking, MPPT
Body	Cast aluminum
Overspeed Protection	Electronic torque control
Working temperature	-20ºC~ 120ºC
Certificate	ISO9001:2008 ,CE, RoHS
Survival Wind Speed	50 m/s
Warranty	3 year limited warranty

Model	MAX 400W	MAX 600W		MAX 800W	MAX 1200W
Rated power	400W	600W		800W	1200W
Max power	450W	750W		950W	1300W
Rated voltage	12/24 VDC	24 VDC		48 VDC	48VDC/110VDC
Rated current	33A/16.7A	25A		16.7A	25A/10.9A
Rated Rpm	650
Blades	5 Pcs Nylon Fiber glass
Rated wind speed	11m/s		12m/s
Start-Up Wind Speed	1.5 ( m/s)	1.5 ( m/s)		1.5 ( m/s)	2.0 ( m/s)
Cut-In Wind Speed	2.0 (m/s)	2.0 (m/s)		2.0 (m/s)	2.5 (m/s)
Rotor Diameter	1.7 m	1.7 m		1.8 m	2.0 m
N.W	23KG	28.5KG		30KG	36KG
G.W	28KG	33KG		35.5KG	41KG
Shipping Dimensions	1690*540*290mm	1690*540*290mm		1690*540*290mm	1890*540*290mm
Mount	Flange connection
Turbine Controller	MPPT wind solar hybrid controller
Body	Cast aluminum
Overspeed Protection	Electromagnetic & blade aerodynamic braking
Working temperature	-20ºC~ 120ºC
Certificate	ISO9001:2008 ,CE, Rohs
Survival Wind Speed	50 m/s
Warranty	3 year limited warranty

FAQ:
1,Could you provide pole?
Normally, we don't supply pole.
Most of our clients purchase pole from local, it will be cheaper if without shipping cost.
It just needs a steel pipe and easy to configure.

 2,Does it work on foreland?
Yes, it is suitable for marine. The shell material is Aluminium alloy , the inside components has anti-corrosion treatment.

3,Do you provide the spare parts?
Yes,our company could provide the spare parts such as blades and other components in your second order .Thanks.

4,Is it convinient for you if we visit your factory ?
Welcome to come to China and visit our company, please kindly inform us before your visit, thanks.


Our  Company information:
Our Company:
COMMERCIAL ENERGY GROUP LIMITED is a an energy-saving technology pioneer company, engaged in develop and apply wind power generator and solar system. Located in the QINGDAO Development Zone nearby Qingdao port, the

company enjoys an excellent traffic convenience.
In response the call of government concerning on energy-saving & emissions reduction, we majorly focus on the development of wind solar power system. Based on radical innovatory design concept and high-tech application, make fully use of the green, clean energy to achieve zero power consumption, zero emissions, zero pollution.

Guided by the principle of "advanced technology,exquisite product and competent manufacturing",the company is proceeding with the mission of energy saving and green planet building based on the spirit of "credit,innovation,hard working and social responsibility".

Contact Information:
Smile
Tel:+86-532-86943160
Mob:+86-15854292836
