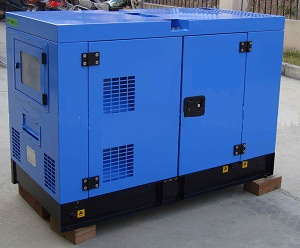

Prod Model: |
ADP110C |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Cooling Method: |
Water Cooling |
Stroke: |
Four Stroke |
Installation Method: |
Fixed |
Type: |
Micro-Computer Control Automatic Diesel Generator |
Output Type: |
AC Three Phase |
Product Description
Generating Sets Standard Features
Three phase four wire, output voltage 400V/230V, 50Hz, between 0.8 lagging, protection capability
According with the standard of NAME1 and IP23.
General Features:
Composed of Cummins diesel engine and Stamford or Leroy somer alternator
Oil and fuel filter fitted, water separator
Lube-oil drain valve fitted
Electric Starter Charge motor 24 VD. C
Water-cooled
8-hours operation base tank
Auto start
Optional soundproof and weatherproof canopy
3 pole MCCB Delixi breaker
Operation & Maintenance manual
Special Integrated Steel Base tank and sprayed overall in gloss enamel paint
Voltage Regulation:
Voltage regulation maintanined within ± 0.5%
Between 0.8 and 1.0 lagging and unity
From no load to full load
At speed droop variation upto 4.5%
Frequency Adjustable Ratio:
Change load from 0-100%, within 1.0%( electric speed regulator), within 4.5%( mechanical speed regulator)
Frequency Undulation:
Load from 0-100%, frequency undulation within 0.25%
No load wire volts max undulation ration\ within 1.8%
Three Phase balanced load in the order of 5%
Effect factor of Telecom
TIF better than 50
THF to IEC60034 Part 40 better than 2%
POWER RATING PRIME STANDBY |
POWER |
kVA |
138 |
150 |
kW |
110 |
120 |
Rated Speed |
r. p. m |
1500 |
Standard Voltage |
V |
400 |
Available Voltages |
V |
400/230 - 230/132 - 230 V |
Rated at power factor |
Cos Phi |
|
ENGINE PRP STANDBY |
Rated Output |
kW |
120 |
130 |
Manufacturer |
|
Cummins |
Model |
|
6BTAA5.9-G2 |
No. of Cylindirs and Build |
|
4 Cycle; In-line; 6 Cylinder Diesel |
Aspiration and Cooling |
|
Turbocharged, Air-air after-cooled |
Bore/Stroke |
mm |
102X120 |
Compress the ratio |
|
16.8: 1 |
Cooling system |
|
Water-cooled |
Engine Speed/Frequency |
rpm/Hz |
1500/50HZ |
Coolant Capacity |
L |
34 |
Starting System |
|
Electric 24 volt DC |
Displacement |
L |
5.9 |
Lubricant system Capacity |
L |
14.2 |
Battery Volatge / Capacity |
|
24VDC |
Governing Type |
Type |
Electrical |
Air Filter |
Type |
Dry |
Fuel Consumption |
Load |
100% |
75% |
50% |
25% |
L/h |
30.0 |
23.0 |
16.0 |
9.0 |
ALTERNATOR BRAND LEROY SOMER STAMFORD |
Model |
|
LSA44.2S75 |
UCI274E |
Exciter System |
|
Self-excited, brushless |
Poles |
Num |
4 |
Cooling Fan |
|
Cast alloy aluminum |
Bearing |
|
Single, double shielded |
Windings |
|
100% copper |
Connection Type |
|
Reconnectable |
Insulation Type |
Class |
Class H |
Pitch |
|
2/3 |
Amortisseur Winding |
|
Full |
Voltage Regulator |
|
A. V. R. (Electronic) |
Steady Voltage Precision |
|
± 1% |
Underspeed Protection |
|
Standard |
Overexcitation Protection |
|
IP23 |
TIF (1960 Weightings) |
|
< 50 |
