Brand:
Yarmax or OEM
Pack:
Iron Bracket / Veneer Case
Original:
Changzhou Jiangsu Province
Color:
Red/Yellow or Others as Requested
Noise Level:
65dB
Fuel Type:
Diesel
Fuel Tank Capacity:
8 Hours Continue Running
Phase No.:
Three Phases or Single Phase as Requested
Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Speed:
1500rpm/1800rpm
Excitation Mode:
Self Exciter
Product Description

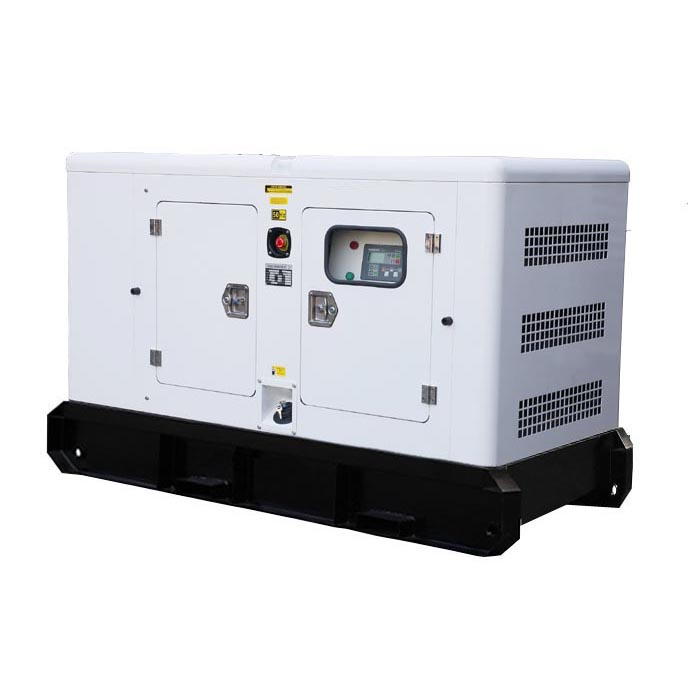

120KW/150kVA Perkins Soundproof Diesel Generator Set (YMP-180)
1. 10KVA~2250KVA Generator / Diesel Generator / Silent Generator 2. Powered by Perkins Engine 3. With Stamford / Leroy Somer / Marathon Alternator 4. With CHINT / ABB MCCB & Electronic Components 5. Electric Start with Battery 6. Base Integrated Fuel Tank 7. ATS, Deepsea / ComAp / Smartgen Controller 8. Comply with ISO8528/GB2820
UK Origin Perkins Series Diesel Generators Power From 10KW up to 1500KW, with compacted structure and best configuration.
General Data Sheet
Engine and alternator mounted on the same frame steel skid. Built-in damper for anti-vibration. Small size, low weight, easy to operate, installation and maintenance. World most famous brand diesel engine. UK origin Perkins series engine. World famous brand AC alternator: Stamford, Marathon, Leroy Somer, etc Advanced and reliable control module: Key start, Auto start, Remote control by PC with RS232/485 Full range protect function and alarm shutdown feature. ATS, Base Fuel Tank as Options.
Control Systems
Standard control panel is the basic configure for normally operation and usage. The advantages of this panel are easy operation, aomprehensive function and reliable protection and so on. There are indicating gauges, lamps, transfer switches and emergency stop button, etc. The control panel wil stop the whole generator set and alarm as well when malfunction appears.
LED Automatic Control Panel is a kind of intelligent controller with LED displaying the operating mode of the controller and the running state of the generator sets. It can configure the control procedure and protection parameter of the generator set, and completely satisfied the automatic controlling requirement of the generator sets for the user or factory.
LCD Automatic Control Panel is the configuration for nobody on duty controlling generator sets. This kind of panel adopts module control system, with large LCD screen to show the menu. The module can receive output signal from ATS and realize automatic start and stop the generator sets. ATS(Fully Automatic) is the standard configure of emergent power system. It detects the voltage and Frequency of main power timely. While there is something wrong, such as high voltage, low voltage, phase missing, electricity cutting off, etc., it will signal to start the generator set automatically; While main power resumes balanced, it controls the generator set to shut down after cooled.
Engine
Heavy duty diesel engine Four stroke, water cooled 12V and 24V stater and charge alternator Cooling radiator and fan Maintenance free battery including ract and cable Flexible fuel connection hoses and manual oil sump drain valve Exhaust silencer
Alternator
Brushless, single bearing, flexible disc Insulation class: H Protection class: IP23 Self-exciting and Self-regulation
Canopy
All canopy designed with modular principles All metal canopy parts painted by electrostatic polyester power paint Soundproof design ensure that the noise level be controlled in small scope Convenient to lift and move Easy to maintenance and operate
Base Frame
Base frame including position for forklift and crane Integral fuel tank Daily fuel tank continuously supply for 8-24 hours Fuel tank easy to maintain and clean Anti-vibration pads are flexed between engine and alternator.
Control System Control, monitor and protect the Generator Set including:
High water temperature Low oil pressure Over and under speed Over current Under/Over generator voltage Start and stop failure Low and high battery voltage Charge fail Emergency stop
Company Specification
Frequency 50HZ
PERKINS
Dimension ( L * W *H )
Diesel Engine
(cm* cm * cm)
Model
Standby
Prime
Open Type
Soundproof
(KVA/KW)
(KVA/KW)
YMP-10
11/8.8
10/8.0
403D-11G
140*55*110
185*100*120
YMP-12.5
14/11
12.5/10
403D-15G
140*55*110
185*100*120
YMP-20
22/17.6
20/16
404D-22G
145*65*120
215*100*127
YMP-25
27.5/22
25/20
404D-22TG
145*65*120
225*100*127
YMP-30
33/26.4
30/24
1103A-33G
165*75*125
250*100*157
YMP-40
44/35.2
40/32
1103A-33TG1
175*75*125
260*100*157
YMP-45
50/40
45/36
1103A-33TG1
175*75*125
260*100*157
YMP-50
55/44
50/40
1103A-33TG2
175*75*125
260*100*157
YMP-60
66/52
60/48
1103A-33TG2
175*75*125
260*100*157
YMP-65
71.5/57.2
65/52
1104A-44TG1
185*90*135
281*106*168
YMP-80
88/70.4
80/64
1104A-44TG2
185*90*135
281*106*168
YMP-90
100/80
90/72
1106TG1A
230*96*148
320*116*184
YMP-100
110/88
100/80
1104C-44TAG2
230*96*148
320*116*184
YMP-130
143/114
130/104
1006A-70TG1
230*96*148
320*116*184
YMP-150
165/132
150/120
1006TAG2
230*96*148
320*116*184
YMP-180
198/158.4
180/144
1106C-E66TAG4
240*98*160
340*120*90
YMP-200
220/176
200/160
1106A-E70TAG4
250*100*165
350*135*195
YMP-230
253/202
230/184
1306C-E87TAG4
250*100*165
360*135*195
YMP-250
275/220
250/200
1306A-E87TAG6
250*100*165
370*135*195
YMP-300
330/264
300/240
1606A-E93TAG5
300*115*198
370*135*195
YMP-350
385/308
350/280
2206A-E13TAG2
340*115*198
440*145*225
YMP-400
440/352
400/320
2206A-E13TAG3
340*115*198
440*145*225
YMP-500
550/440
500/400
2506C-E15TAG1
380*125*210
470*185*225
YMP-500
550/440
500/400
2506C-E15TAG2
380*125*210
470*185*225
YMP-600
660/528
600/480
2806A-E18TAG1A
390*160*220
540*190*225
YMP-625
687.5/550
625/500
2806C-E18TAG2
390*160*220
540*190*225
YMP-700
770/616
700/560
4006-23TAG2A
460*180*225
606*224*260
YMP-750
825/660
750/600
4006-23TAG2A
460*180*225
560*190*225
YMP-800
880/704
800/640
4006-23TAG3A
540*165*245
560*190*225
YMP-1000
1100/880
1000/800
4008TAG2A
540*165*245
20FT
YMP-1250
1375/1100
1250/1000
4012-46TWG2A
560*200*245
40HQ
YMP-1500
1650/1320
1500/1200
4012-46TAG2A
560*200*245
40HQ
YMP-1650
1815/1452
1650/1320
4012-46TAG3A
560*220*260
40HQ
YMP-1850
2035/1628
1850/1480
4016-TAG1A
560*220*260
40HQ
YMP-2200
2420/1936
2200/1760
4016-61TRG3A
560*200*260
40HQ

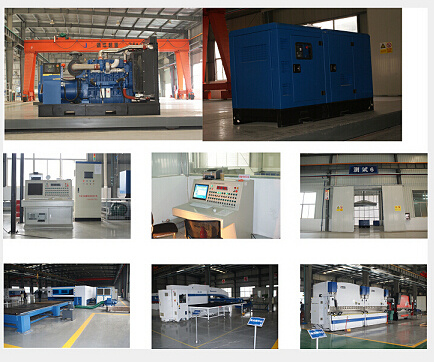

Yarmax Power (Changzhou) Co., Ltd. is one of the leading worldwide suppliers of Air-cooled diesel engines, Gasoline engines, Diesel generators, Gasoline generators, water pumps, Air compressors, High Pressure washers and engine powered construction machines. Our factory is located in Changzhou City, Jiangsu Province, which is easily accessible with a two-hour drive from Shanghai.
As a professional genset manufacturer and facilitator, Yarmax Power keeps improving the quality of products in controlling noise, improving fuel efficiency and lowering emissions for environmental protection. Our company is in compliance with ISO9001: 2000 standards and our products have gained CE approval issued by European Community. We have got the EPA approval from the United States.
To better serve our customers, we provide complete technical support and any other information on our engine and gensets. Additionally, we offer a 12 month or 1000 working-hour warranty. This warranty covers any product deficiency caused by raw materials or any quality problem. The warranty does not cover wearing part problems or damage caused by improper operation or maintenance.
Yarmax Power is also an OEM service provider. If you have any need for engines or generator sets, please don't hesitate to contact us. We would like to establish long-term business relationships with you.
